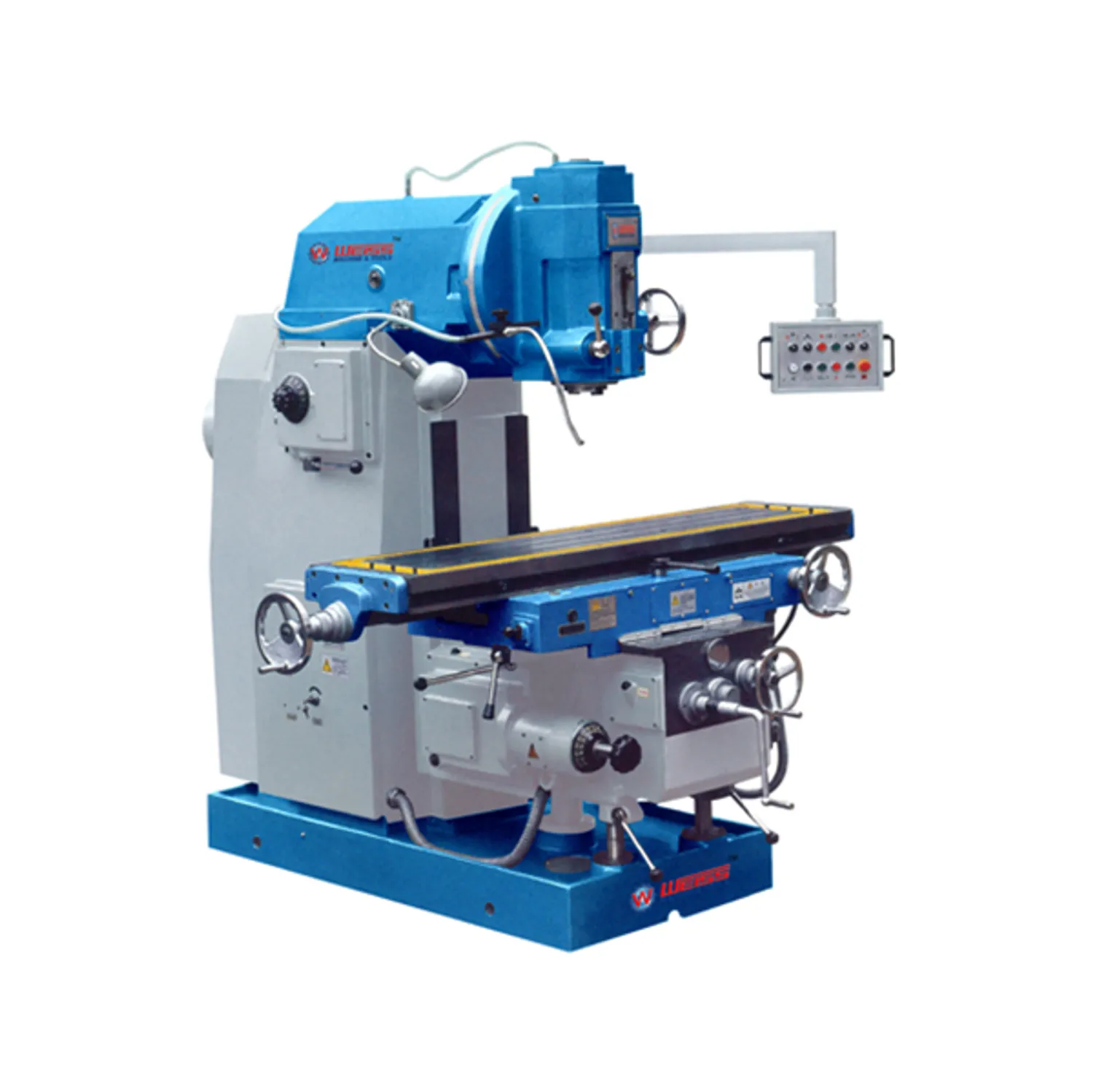

Name: WM5042 Universal Milling Machine
Brand: Weiss Machinery
Rating: 5.0 (30 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Features

1、Spindle quill can move vertically.Worktable is applied to automatic and rapid feed.
2、Hardened and ground slide ways ensure high accuracy.

Specifications

Model No.	VM5042
Item No.	10205142
Specifications
Table size		420 x 1800 mm
T slots		3 x 18 x 90 mm
Table Load-bearing		800 kg
Table travel (X,Y,Z) (Manual / power)		1280x360x470/1250x350x450 mm
Feed speed steps		18 Steps.
Table feed speed ranges:	X	22~1100 mm/min
	Y	22~1100 mm/min.
	Z	8.3~410 mm/min.
Table raped fee ranges:	X	2400 mm/min.
	Y	2400 mm/min.
	Z	900 mm/min.
Vertical milling head rotary angle		± 45°
Distance from spindle center to vertical guide way		450 mm
Distance from table center to vertical guide way		275~655 mm
Distance from spindle nose to worktable surface		40~510 mm
Spindle taper		7:24 ISO50
Spindle stroke		85 mm
Arbor diameter		Φ32 Φ50 mm
Spindle speed steps		18 steps
Spindle speed range		30 ~ 1500 r/min.
Main motor power		11 kw
Feed motor power		3 kw
Overall dimension		2522 x 2265 x 2432 mm
Net weight		5000 kg

Features&Details

Vertical milling head can rotate ±45°,
Spindle quill can move vertically.Worktable is applied to automatic and rapid feed.
Hardened and ground slide ways ensure high accuracy.
With high motor power and wide range speed,machine adapts to high speed cutting when using hard alloy cutters
With enough rigidity,machine can bear heavy duty processing.
Complete coolant and lubrication system.DRO equipment is optional.
