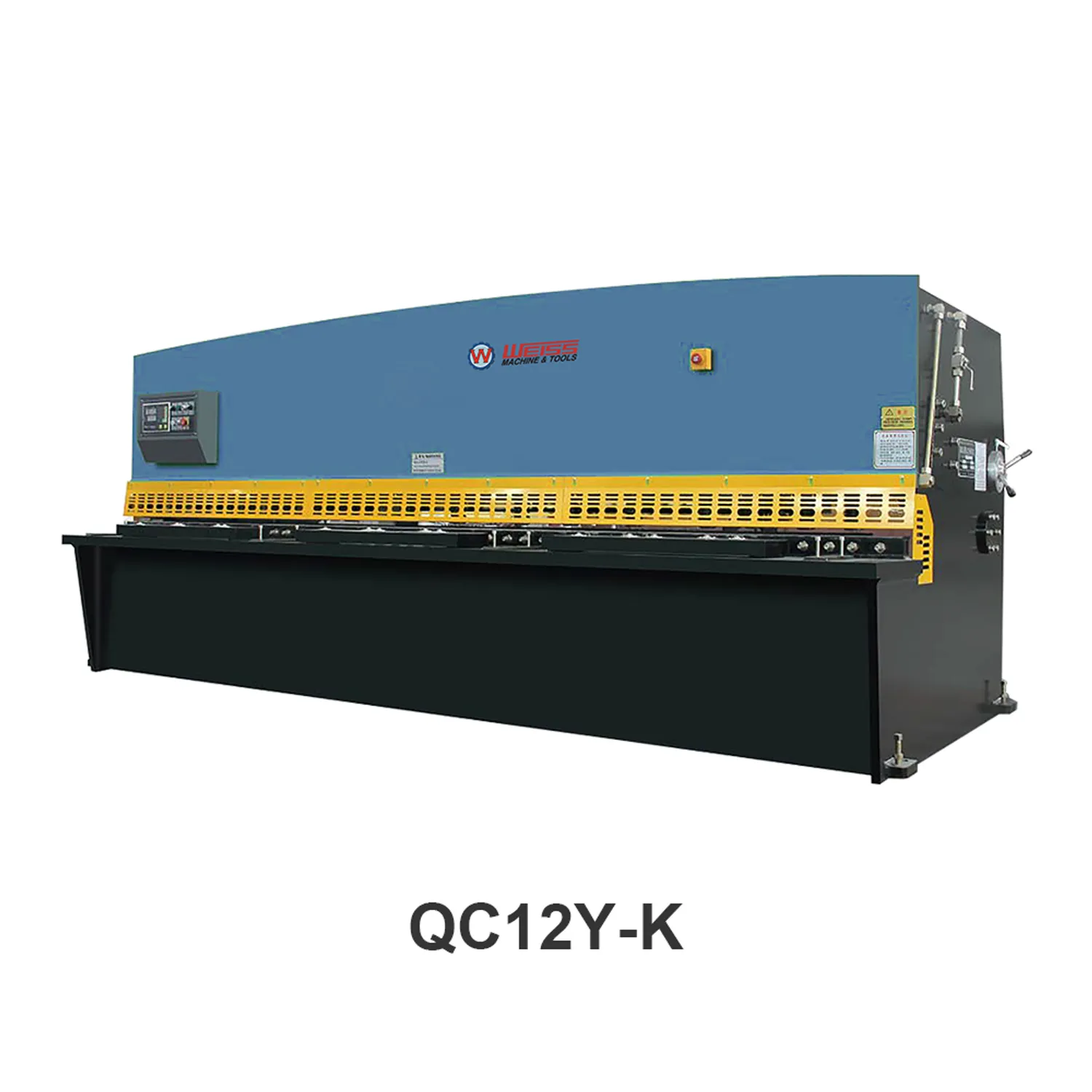

Name: QC12Y/K Series hydraulic CNC swing shearing machine
Brand: Weiss Machinery
Rating: 4.8 (50 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Specifications

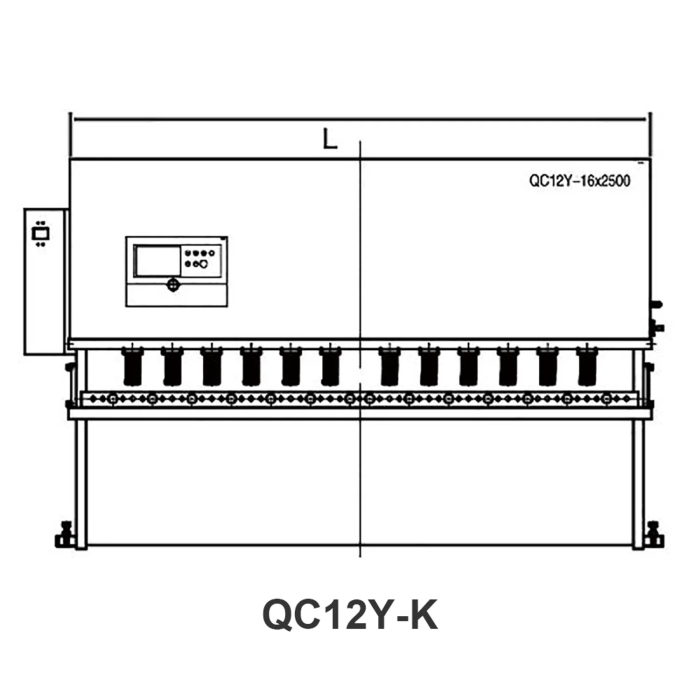

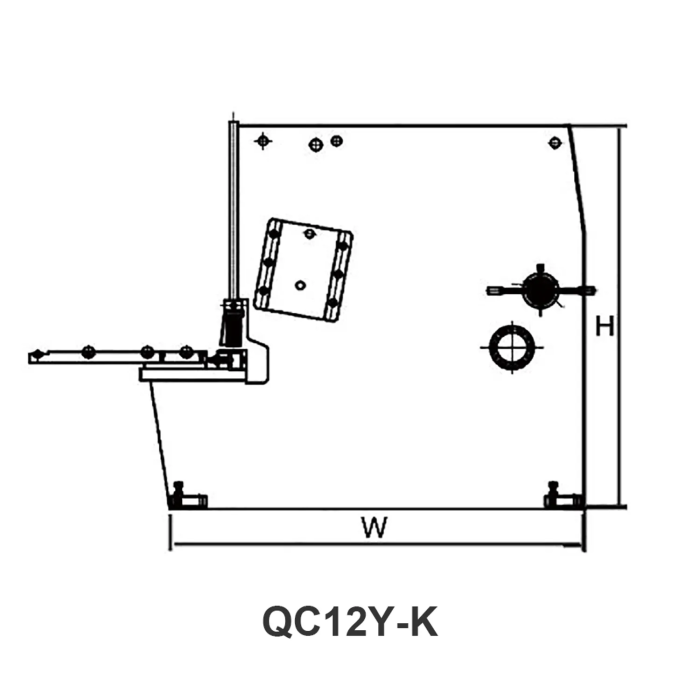

Model	Item No.	Cutting thickness (mm)	Cutting widtli (mm)	Cutting angle (°)	Backgauge Range(mm)	Stroke Number (times/min)	Main Motor (kW)	Weight (Kg)	Overall dimensions LxWxH
QC12Y/K-4x2500	11130042	4	2500	1.5	20~600	32	7.5	3500	3025x1745x1600
QC12Y/K-4x3200	11130043	4	3200	1.5	20~600	13	7.5	5500	3745x1935x1800
QC12Y/K-4x4000	11130044	4	4000	1.5	20~800	10	7.5	7500	4540x2000x1970
QC12Y/K-4x6000	11130046	4	6000	1.5	20~600	8	15	17000	6500x2470x2280
QC12Y/K-6x2500	11130062	6	2500	1.9	20~600	15	7.5	5500	3050x1760x1830
QC12Y/K-6x3200	11130063	6	3200	1.5	20~600	12	7.5	6500	3750x1800x1850
QC12Y/K-6x4000	11130064	6	4000	1.5	20~800	9	7.5	8200	4550x2000x1775
QC12Y/K-6x6000	11130066	6	6000	1.5	20~600	5	18.5	19800	6500x2470x2500
QC12Y/K-8x2500	11130082	8	2500	1.9	20~600	14	11	5800	3060x1780x1880
QC12Y/K-8x3200	11130083	8	3200	1.5	20~600	10	11	6800	3760x1800x1880
QC12Y/K-8x4000	11130084	8	4000	1.5	20~800	8	15	8800	4560x2100x1980
QC12Y/K-8x6000	11130086	8	6000	1.5	20~600	6	18.5	21500	6500x2470x2500
QC12Y/K-10x2500	11130102	10	2500	2	20~600	10	15	7000	3060x1960x1980
QC12Y/K-10x3200	11130103	10	3200	1.75	20~600	9	15	8500	3760x1960x1980
QC12Y/K-10x4000	11130104	10	4000	1.5	20~800	8	22	11800	4650x2450x2000
QC12Y/K-10x6000	11130106	10	6000	1.5	20~800	6	22	27500	6500x2450x2300
QC12Y/K-12x2500	11130122	12	2500	2	20~800	12	22	9800	3165x2200x2200
QC12Y/K-12x3200	11130123	12	3200	1.75	20~800	10	22	11600	3870x2105x2200
QC12Y/K-12x4000	11130124	12	4000	1.75	20~800	8	22	13800	4670x2260x2200
QC12Y/K-12x5000	11130125	12	5000	2	20~800	6	22	19000	5800x2550x2400
QC12Y/K-12x6000	11130123	12	6000	2	20~800	5	22	32500	6900x2600x2700
QC12Y/K-12x8000	11130128	12	8000	1.75	20~800	4	22	46000	8600x3250x3200
QC12Y/K-16x2500	11130162	16	2500	2.5	20~800	10	22	11000	3175x2260x2200
QC12Y/K-16x3200	11130163	16	3200	2	20~800	10	22	12600	3870x2105x2200
QC12Y/K-16x4000	11130164	16	4000	2	20~800	8	22	17300	4705x2575x2200
QC12Y/K-16x5000	11130165	16	5000	2.5	20~800	6	30	24000	5900x2600x2700
QC12Y/K-16x6000	11130166	16	6000	2.5	20~800	5	30	36800	6900x2700x2900
QC12Y/K-20x2500	11130202	20	2500	2.5	20~800	8	30	14300	3450x2600x2500
QC12Y/K-20x3200	11130203	20	3200	1.5	20~800	8	30	16000	4150x2600x2700
QC12Y/K-20x4000	11130204	20	4000	2.5	20~800	5	30	23000	4850x2600x2800
QC12Y/K-25x2500	11130252	25	2500	2.5	20~1000	8	37	19000	3200x2700x2900
QC12Y/K-25x3200	11130253	25	3200	3	20~1000	5	37	23000	4200x2700x3000
QC12Y/K-30x2500	11130302	30	2500	3.5	20~1000	4	37	28000	3300x2900x3000
QC12Y/K-30x3200	11130303	30	3200	3.5	20~1000	4	37	33000	4200x2900x3200

Features&Details

Features

Steel plate welded structure, hydraulic transmission, nitrogen cylinder return, convenient operation, reliable performance, beautiful appearance.
Edge adjustment signs, adjusts lightly and quickly, continuously variable transmission.
Lighting device on the line, and continuously variable adjustment of upper carrier itinerary.
Fence type safety protection device.

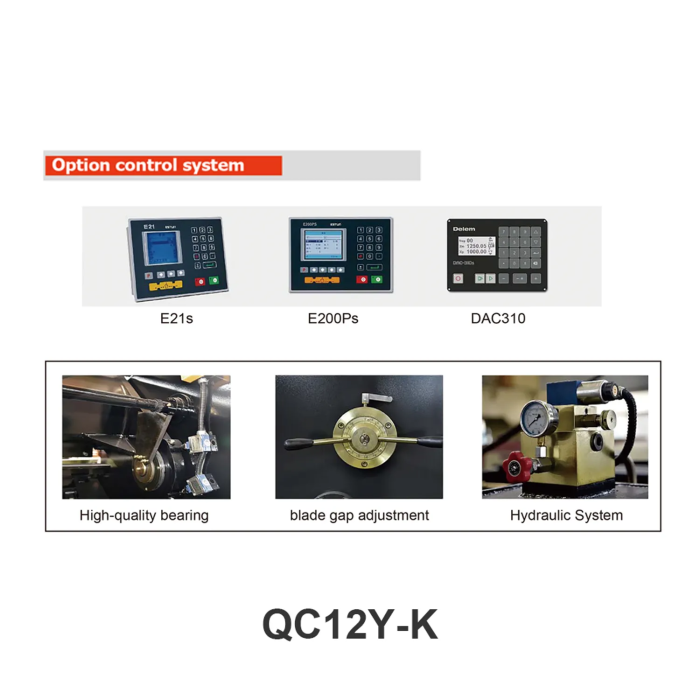

Back gauge adopts MD11 CNC, with Iow noise and high precision. Option: E21S, E200PS, DAC 310.

QC12Y/K Series hydraulic CNC swing shearing machine
