| Selling Units: | Bag/Bags |
|---|
Transportation: Others
| CONTENT | METRIC INFO. | IMPETRIAL INFO. |
| ITEM NO. | 10110305/10110306 | |
| Specifications： | Metric(mm) | Imperial (in) |
| Lathe | ||
| Distance between centers | 550/750 mm | |
| Swing over bed | Φ250 mm | |
| Swing over cross slide | Φ140 mm | |
| Width of bed | 135 mm | |
| Taper of spindle bore | MT4 | |
| Spindle bore | 26 mm | |
| Number of spindle speeds | Variable | |
| Range of spindle speeds | 50-2000 RPM | |
| Range of longitudinal feeds | 0.06-0.32 mm | |
| Range of cross feeds | 0.03-0.075 mm | |
| Range of inch threads | 8-56 T.P.I | |
| Range of metric threads | 0.2-3.5 mm | |
| Top slide travel | 65 mm | |
| Cross slide travel | 105 mm | |
| Tailstock quill travel | 75 mm | |
| Taper of tailstock quill | MT2 | |
| Motor | 1.1KW | |
| Mill & Drill | ||
| Taper of spindle bore | MT2 | |
| Spindle stroke | 50 mm | |
| Spindle speed | 100-2250 rpm | |
| Max. distance spindle to table | 240 mm | |
| Max. distance spindle to column | 170 mm | |
| Motor | 0.75 KW | |
| Packing size | 1250/1500x630x950 mm | |
| Net weight | 195/208 kg | ` |

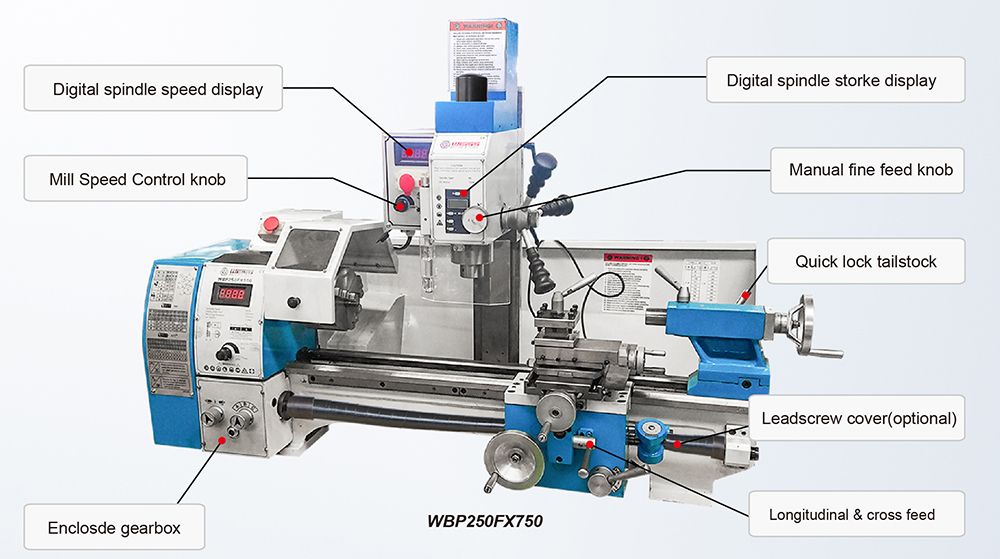

FEATURES:

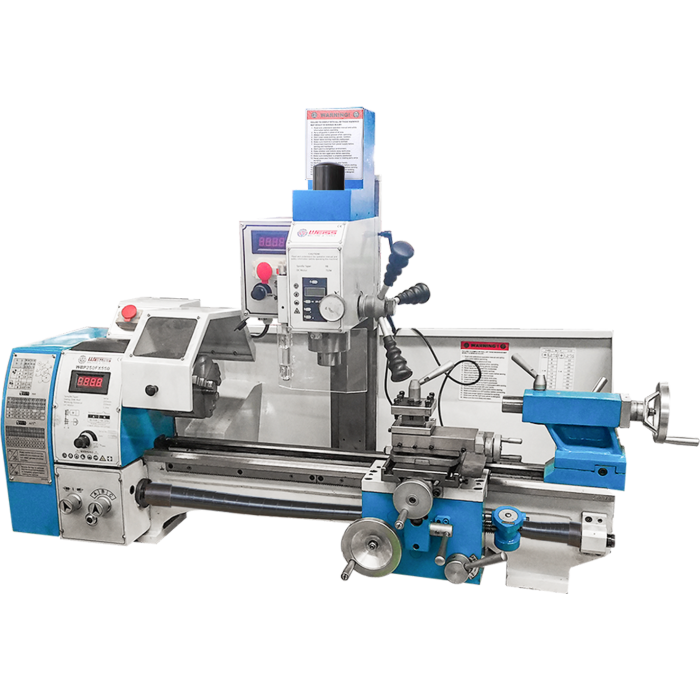

1. WBP Series lathe / Mill combination unit is an excellent choice for those who want to machine the parts without having to dedicate a large amount of shop space
2. This combination unit adds a variable-speed milling head to the lathe, giving you two versatile metal working machines in one
3. Hardened and ground V-ways bed
4. Lead screw for thread cutting or automatic longitudinal turning
5. All guides can be adjusted by wedge strips
6. Right / left rotation in the control panel switchable
7. Hardened main spindle mounted in adjustable precision tapered roller bearings
8. Lathe hardened spindle nose with Ø 26 mm spindle bore
9. Tailstock for taper turning ± 5 mm adjustable
10. Quick, easy and tool-free adjustment of the tailstock by a clamping lever
11. Change gear set in the standard scope of delivery for thread cutting
12. WBP250F has power cross feed function
13. Mill spindle is supported by high precision taper roller bearing
14. Mill head with high torque, low noise and powerful 750W brushless motor, easy maintenance
15. Single speed tooth belt drive provide convenient and reliable
16. Operation with quiet running for mill head
17. Variable-speed mill spindle from 100 to 2,250 rpm with DRO
18. Coarse and fine mill spindle downfeed
19. Drilling and milling head can be tilted by ±90° on both sides, thus drilling and milling in angular position as required
| STANDARD ACCESSORIES: | INCLUDED |
| 3-Jaw chuck (125mm) | yes |
| High and low variable spindle speed ranges | yes |
| Digital display of speed range | yes |
| Chip tray | yes |
| Splash guard | yes |
| Switch-off chuck cover | yes |
| Drill chuck 3-16mm | yes |
| Arbor | yes |
| Drawbar | yes |
| Toolbox & tools | yes |
| OPTIONAL ACCESSORIES: | Item NO.: |
| Steady rest | 30103001 |
| Follow rest | 30103002 |
| Face plate（240mm) | 30103003 |
| 4-Jaw chuck(125mm) | 22014103 |
| Backplate for 4-Jaw chuck | 30103005 |
| Leadscrew cover | 30103015 |
| Tool post cover | 30103020 |
| Threading dial(Metric/Inch) | 30103025/30103026 |
| 7 pcs 12mm Alloy turning tools | 21020117 |
| Keyless drill chuck 3-16mm | 22020205 |
| HHS 25PCS drill set 1-13mm | 21210252 |
| 7 PCS HSS Tin-coated end mill set, 4-16mm | 21100007 |
| 5 pcs Center drill set | 21200005 |
| 58pcs clamping kits M 10 x 1.5/11.7mm | 22038022 |
| Mill chuck set ER25 MT2 4-16mm 6pcs | 22030102 |
| Machine Vise BMS100 | 22101024 |
| 2 way precision tilting vise WOA100 | 22102104 |
| Rotary Table RT100 | 22111510 |
| Semi-universal dividing head BS-0 | 22113005 |
| Wedge type tool post sets 251-111 | 22123021 |
| Euro type tool post set TOOA1 | 22121001 |
| ER32 Collet Fixture ER32-95/125 | 22050107 |
| 2-Axis Magnetic DRO (D80) | 23073245/23073247 |
| Stand | 30103030 |
| Luxury Stand | 30103035 |
