Home> Products> Lathe Machines> Engine Lathes> WL360D ENGINE LATHE MACHINE

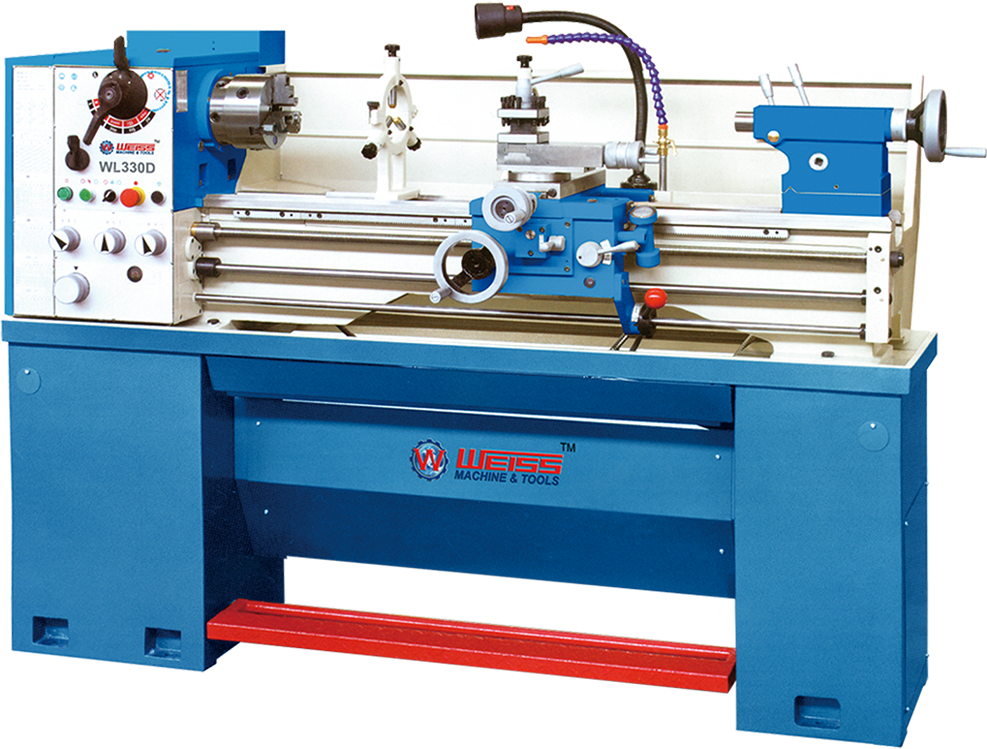

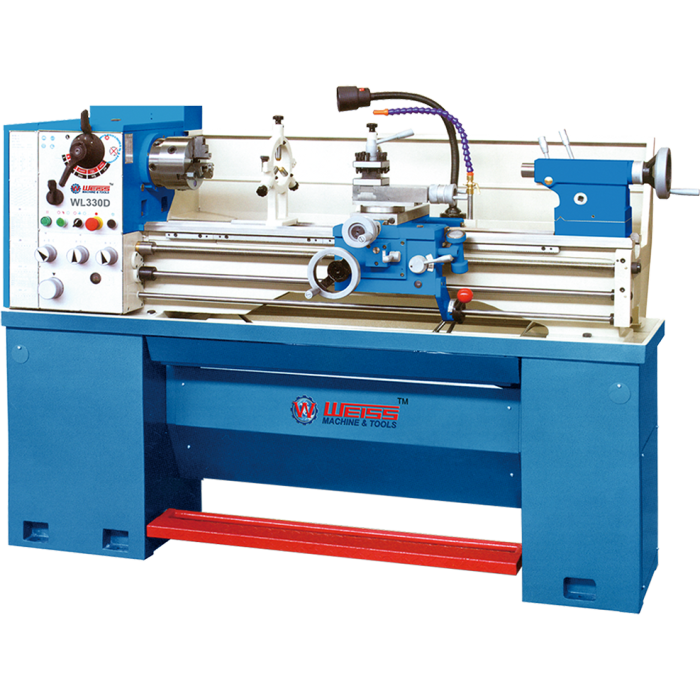

WL360D ENGINE LATHE MACHINE

WL360D ENGINE LATHE MACHINE
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WL360D Engine Lathe Machine

    Customization: Basic configuration  Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications

    Model No. WL360Dx750/1000
    ITEM NO. 10106348/10106349
    Specifications： Metric(mm) Imperial (in)
    Distance between centers 750/1000mm 29-17/32"/39-3/8"
    Swing over bed 360mm 14-11/64"
    Swing over gap 502mm 19-49/64"
    Swing over cross slide 224mm 8-13/16"
    Width of bed 186mm 7-21/64"
    Taper of spindle bore MT5 MT5
    Spindle nose D1-4 or D1-5 D1-4 or D1-5
    Spindle bore 38mm or 40mm 1-1/2" or 1-37/64"
    Number of spindle speeds 8 8
    Range of spindle speeds 70-2000 rpm 70-2000 rpm
    Range of cross feeds 0.01-0.703mm/rev/32 0.0004"~0.0277"/rev/32
    Range of longitudinal feeds 0.046-3.249mm/rev/24 0.0018"~0.1279"/rev/24
    Range of inch threads 4-112 T.P.I/42 4-112 T.P.I/42
    Range of metric threads 0.1-7mm/44 0.1-7mm/44
    Top slide travel 92mm 3-5/8"
    Cross slide travel 170mm 6-11/16"
    Tailstock quill travel 100mm 3-15/16"
    Taper of tailstock quill MT3 MT3
    Motor 1.5KW 1.5KW
    Packing size 1680x760x1580mm/1930x760x1530mm, 66-9/64"x29-59/64"x62-13/64" / 75-63/64"x29-59/64"x60-15/64"
    Net weight 510kg/540kg 1124lb/1190lb

    Features&Details


    FEATURES:

    1. No change gear in tool box
    2. The thread category complete, not only cutting metric thread and imperial thread, but also cutting diametral thread and module thread
    3. Minimum Cross feed 0.01 mm/rev, Minimum Longitudinal feed 0.046 mm/rev




    Standard Accessories

    STANDARD ACCESSORIES: INCLUDED
    3-Jaw Chuck(160mm) yes
    4-jaw chuck(200mm) yes
    Splash Guard

    yes
    Face Plate (250mm) yes
    Steady Rest yes
    Follow Rest

    yes
    Chip Tray yes
    Stand&oil tray yes
    Toolbox & Tools yes

    Optional Accessories


    OPTIONAL ACCESSORIES: Item NO.:
    3-Jaw Chuck(160mm) -
    4-jaw chuck(200mm) -
    Splash Guard -
    Face Plate (250mm) -
    Steady Rest -
    Follow Rest -
    Chip Tray -
    Stand&oil tray -
    Toolbox & Tools
