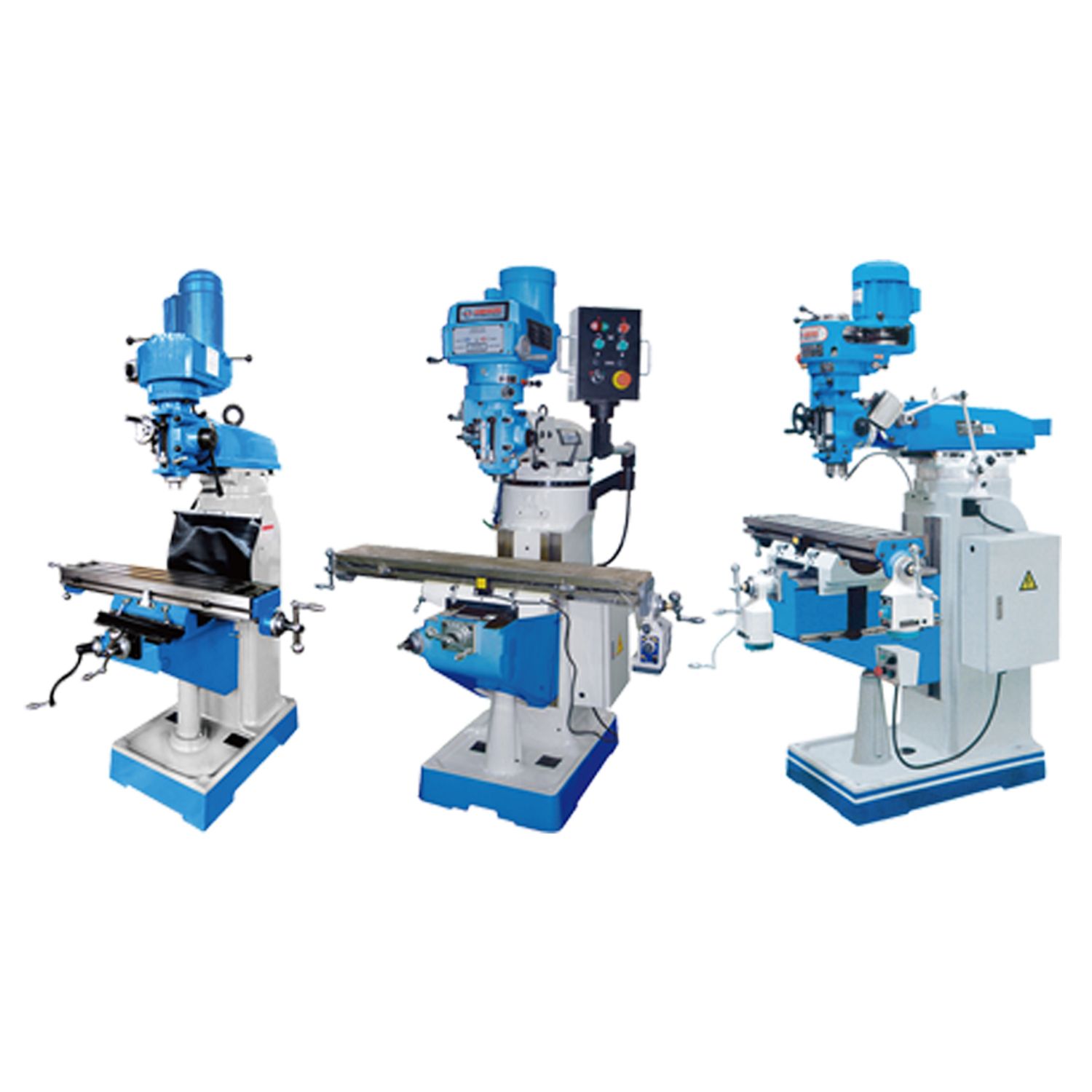

Name: WM20 / WM20V / WM23 / WM23V Turret Milling Machines
Brand: Weiss Machinery
Rating: 5.0 (7 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Specifications

Model No.	WM20/WM20V		WM23/WM23V
Item No.	10205020/10205820		10205023/10205823
Specifications：	Metric(mm)	Imperial (in)	Metric(mm)	Imperial (in)
Table size	910 x 200 mm		1067 x 230 mm
Table travel (X,Y)	600 x 240 mm		650 x 305 mm
Knee travel	350 mm		400 mm
T-slot	3x16mm		3x16mm
Ram travel	300 mm		312 mm
Distance spindle nose to table	350 mm		415 mm
Spindle taper	R8 / NT30		R8 or ISO30
Spindle stroke	120 mm		127 mm
Step of spindle speeds	12 Kinds / Variable		16 Kinds / Variable
Range of spindle speeds	150~1500 / 50~3500 rpm		65~4500 / 65~4500 rpm
Automatic spindle feeds	0/3 steps 0.04 / 0.08/0.15 mm/rev		3 steps 0.04 / 0.08/0.15 mm/rev
Spindle motor	1.1kw / 2.2 kw		2.25 kw
Head swivel (L&R)	90°		90°
Head tilt (Back&Forward)	0° / 0°		45°
Y-axis guideway	Dovetail		Dovetail
Z-axis guideway	Dovetail Rectangular		Dovetail Rectangular
Packing size	1400 x 1300 x 1900 mm		1400 x 1476 x 2030 mm
Net weight	800 kg		1100 kg / 1600 kg
