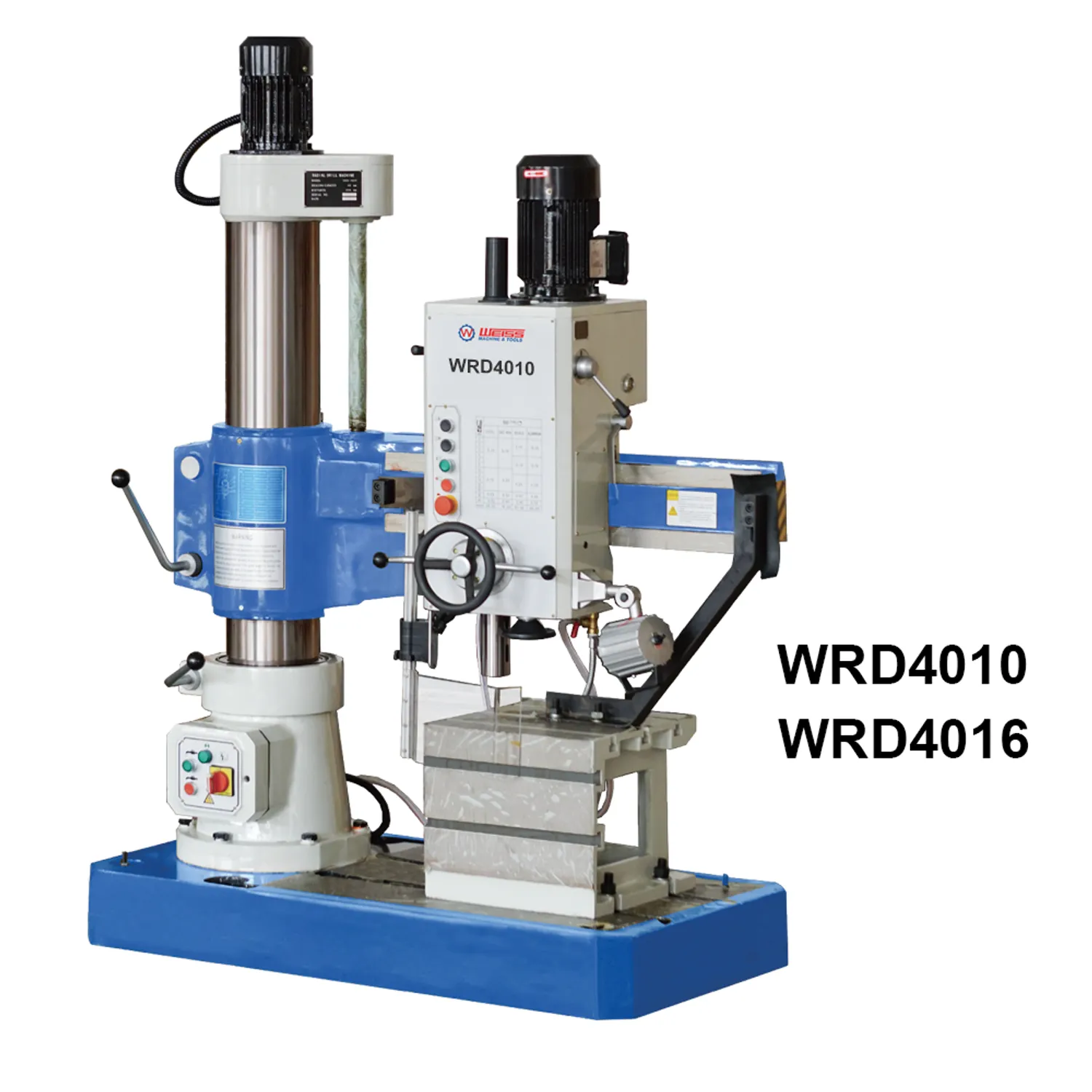

Name: WRD4010 WRD4016 Radial Drilling Machines
Brand: Weiss Machinery
Rating: 4.9 (37 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Specifications

Model No.	WRD4010	WRD4016
Item No.	10305404	10305406
Specifications：
Max. drilling capacity	Φ40 mm	Φ40 mm
Distance from spindle wis to column	320~1000 mm	350~1600 mm
Diameter of column	240 mm	350 mm
Spindle taper	MT4	MT4
Spindle stoke	280 mm	15 mm
Step of spindle speeds	16	16
Range of spindle speeds	32~2500 rpm	25~2000 rpm
Step of spindle feeds	8	16
Range of spindle feeds	0.1~1.25 mm/rev.	0.04~3.2 mm/rev.
Distance from spindle nose to base	220~1000 mm	350~1250 mm
Dimension of worktable	600 x 450 x 450 mm	630 x 500 x 500 mm
Base size	1710 x 800 x 160mm	2400 x 1000 x 200mm
Main Motor	2.2 kw	3 kw
Overall size	1760 x 800 x 2050 mm	2500 x 1060 x 2650 mm
Packing size	1870 x 970 x 2100 mm	2600 x 1120 x 2600 mm
Net weight	1600 kg	3500 kg

Features&Details

Features:

With wide range of speed and feed, with manual, powerand fine feeds. The feed of machines are very easily engaged and disengaged at any time.
With safe and reliable feed safety machine, all parts easyoperation and change.
All controls centralized on the head stock easy operation and change. With rapid and accurate hydraulic preselection of speeds and feeds of spindle.
Main parts are made by machine center which with high precision and efficiency, ensuring reliability and high quality.
Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of materia for basic parts.
Spindle parts are made by special high quality steel heattreatment to be made by first class equipments, ensuring high strength and durability.
Main gears are machined by gear grinding, the machine ensuring high precision and Iow noise.
