| Selling Units: | Bag/Bags |
|---|
Transportation: Others
| CONTEN | METRIC INFO. | INCHES INFO. |
| ITEM NO. | 10105250 | |
| Distance between centers | 500mm | 19-11/16" |
| Swing over bed | 250mm | 9-27/32" |
| Swing over cross slide | 150mm | 5-29/32" |
| Width of bed | 140mm | 5-33/64" |
| Taper of spindle bore | MT4 | MT4 |
| Spindle bore | 26mm | 1-1/32" |
| Number of spindle speeds | 12 | 12 |
| Range of spindle speeds | 80-1600 rmp | 80-1600rmp |
| Range of cross feeds | 0.015-0.137mm | 0.0006"~0.0054" |
| Range of longitudinal feeds | 0.03-0.275mm | 0.0012"~0.0108" |
| Range of inch threads | 4-96 T.P.I | 4-96 T.P.I |
| Range of metric threads | 0.25-5mm | 0.25-5 mm |
| Range of module threads | 0.25-5 | 0.25-5 |
| Range of D.P. threads | 9-96 | 9-96 |
| Top slide travel | 75mm | 2-61/64" |
| Cross slide travel | 130mm | 5-1/8" |
| Tailstock quill travel | 60mm | 2-23/64" |
| Taper of tailstock quill | MT3 | MT3 |
| Motor | 750W | 750W |
| Packing size | 1220/550x650mm | 48-1/32"x21-21/32"x25-19/32" |
| Net weight/gross weight | 120/135kg | 264lb/297lb |
FEATURES:
1. Most economical, widely useful hobby lathe.
2. Induction hardened and ground bedway.
3. Geared headstock enables to change speeds quickly.
4. Large MT4 spindle bore.
5. Power longitudinal feed allows threading.
6. New enclosed quick-change gear box with large feed and threading functions.
7. Precise cuts with cross & longitudinal powerfeed.
8. Tailstock can be offset for turning taper.
| STANDARD ACCESSORIES: | INCLUDED |
| 3-Jaw Chuck (125mm) | YES |
| Splash Guard | YES |
| Chip Tray | YES |
| OPTIONAL ACCESSORIES: | Item NO.: |
| Steady Rest | 30119001 |
| Follow Rest | 30119002 |
| Face Plate (160mm) | 30119003 |
| 4-Jaw Chuck | 22014103 |
| Backplate For 4-Jaw Chuck (125mm) | 30115005 |
| ER25 Collet Fixture | 22037102/22037107 |
| 2-Axis DRO (Magnetic Scales) | 23070210 |
| 3-Axis DRO (Magnetic Scales) | 23070310 |
| Turning Tools 7pcs(12mm) | 21010017 |
| Quick Change Tool Post(TOOA1) | 22121001 |
| Threading Dial (Metric/Inch) | 30119025/026 |

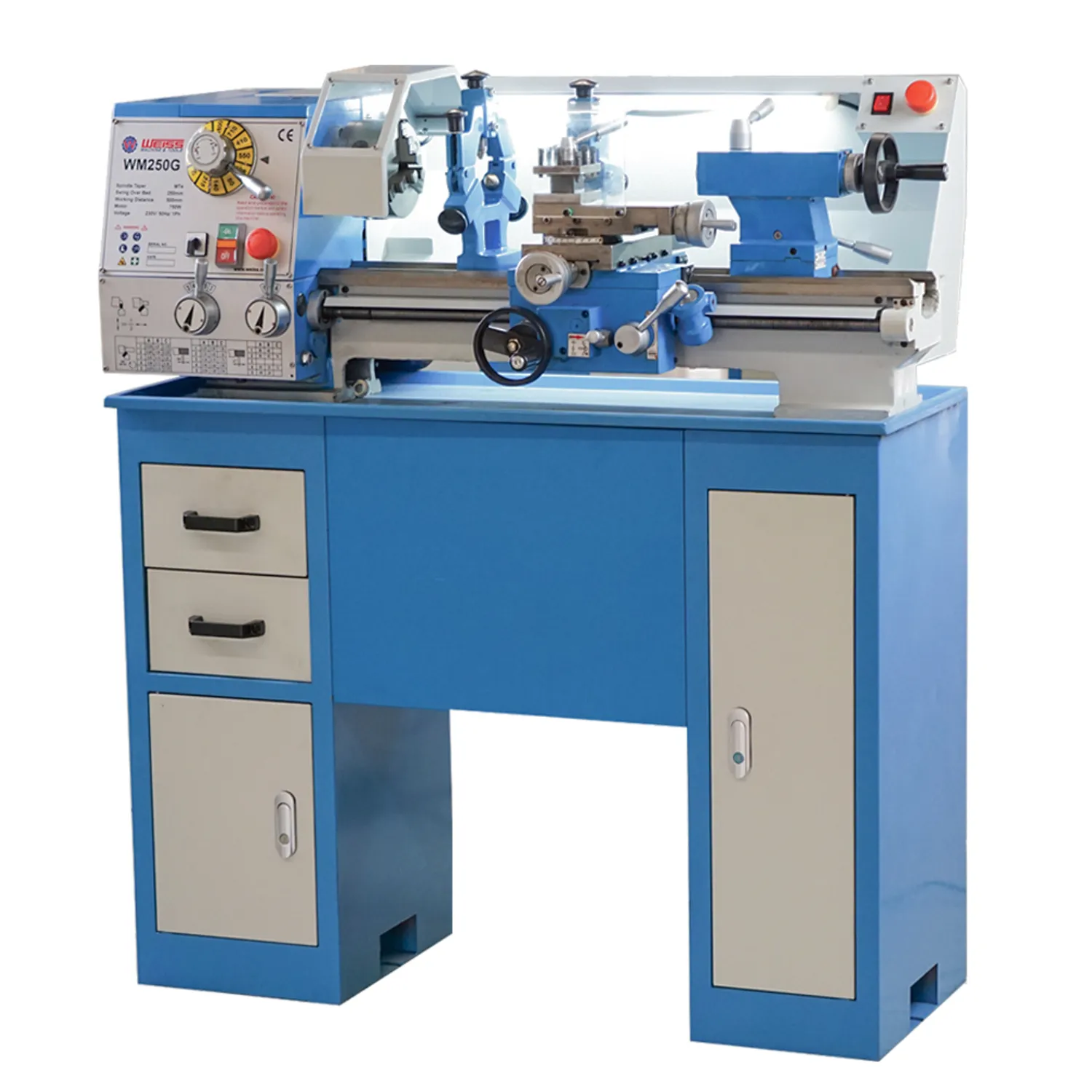

| Stand | 30119030 |
| Luxury Stand | 30119035 |
