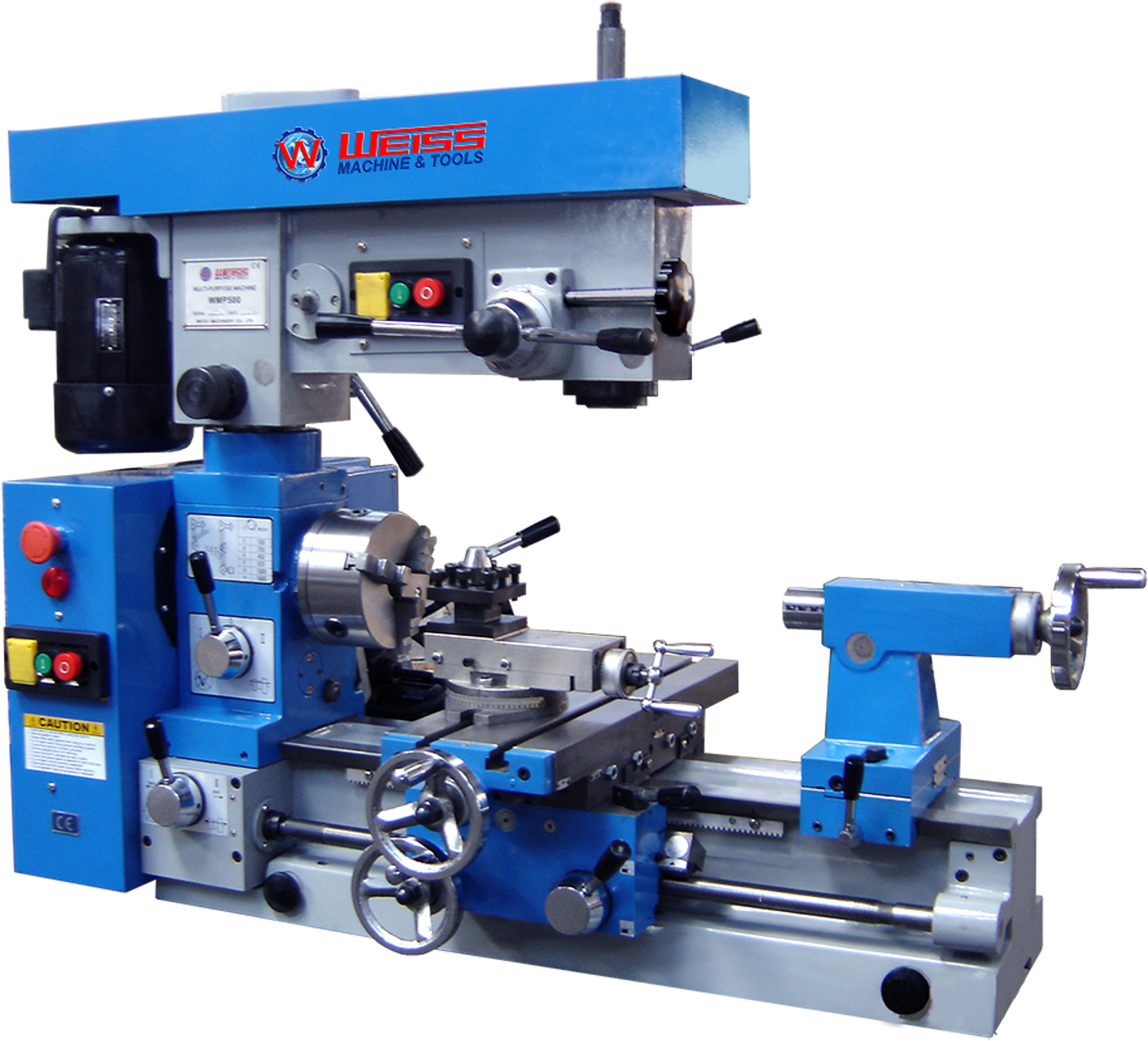

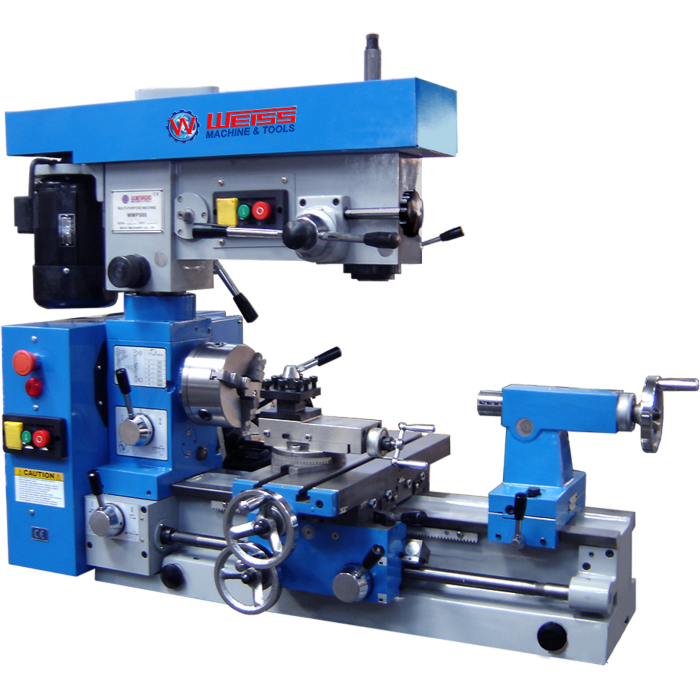

Model No.: WLM500 Lathe & Mill&Drill Combination Machine
Customization: Basic configuration Customization for appearance, material, size, etc., please contact us
Selling Units: | Bag/Bags |
---|
Transportation: Others
Model No. | WLM500 | |
ITEM NO. | 10110105 | |
Specifications: | Metric(mm) | Imperial (in) |
Lathe | ||
Distance between centers | 500 mm | |
Swing over bed | 300 mm | |
Taper of spindle bore | MT4 | |
Spindle bore | 26 mm | |
Range of spindle speeds | 160-1600 rpm | |
Range of cross feed | 0.003-0.134 mm/r | |
Range of longitudinal feeds | 0.036-1.43 mm/r | |
Range of inch threads | 11- 40 T.P.I | |
Range of metric threads | 0.5-3 mm | |
Travel of top slide | 75 mm | |
Travel of cross slide | 200 mm | |
Taper of tailstork quill | MT3 | |
Motor | 550W | |
Mill & Drill | ||
Taper of spindle bore | MT3 | |
Spindle stroke | 80 mm | |
Range of spindle speeds | 315-2000 rpm | |
Head stroke | 85 mm | |
Head swivel | 360° | |
Table size | 425x150 mm | |
Motor | 370W | |
Packing size | 1170x580x980 mm | |
Net weight | 220 kg |
FEATURES:
1. Compact, versatile combination machine.
2. Adjustable height drill/mill head increases capacity.
3. Large MT4 spindle bore.
4. Fine feed handle and clutch for precision milling.
5. Headstock provides two step of feeds.
6. Spindle is supported by high precision bearing.
7. Headstock is constantly oiled during operation.
8. T-slot cross slide.
9. Adjustable gibs for the slideway.
10. Power longitudinal & cross feed.
11. Right & left hand threads cutting is available.
12. High precision chuck.
13. Equipped with emergency stop button.
14. Tailstock may be offset for turning taper.
STANDARD ACCESSORIES: | INCLUDED |
3-jaw chuck | yes |
Threading dial | yes |
Drill chuck | yes |
Toolbox & tools | yes |
OPTIONAL ACCESSORIES: | Item NO.: |
4-jaw chuck | |
Backplate | |
Face plate | |
Steady rest | |
Follow rest | |
Stand & oil tray | |
Turning tools | |
Drilling vise |
