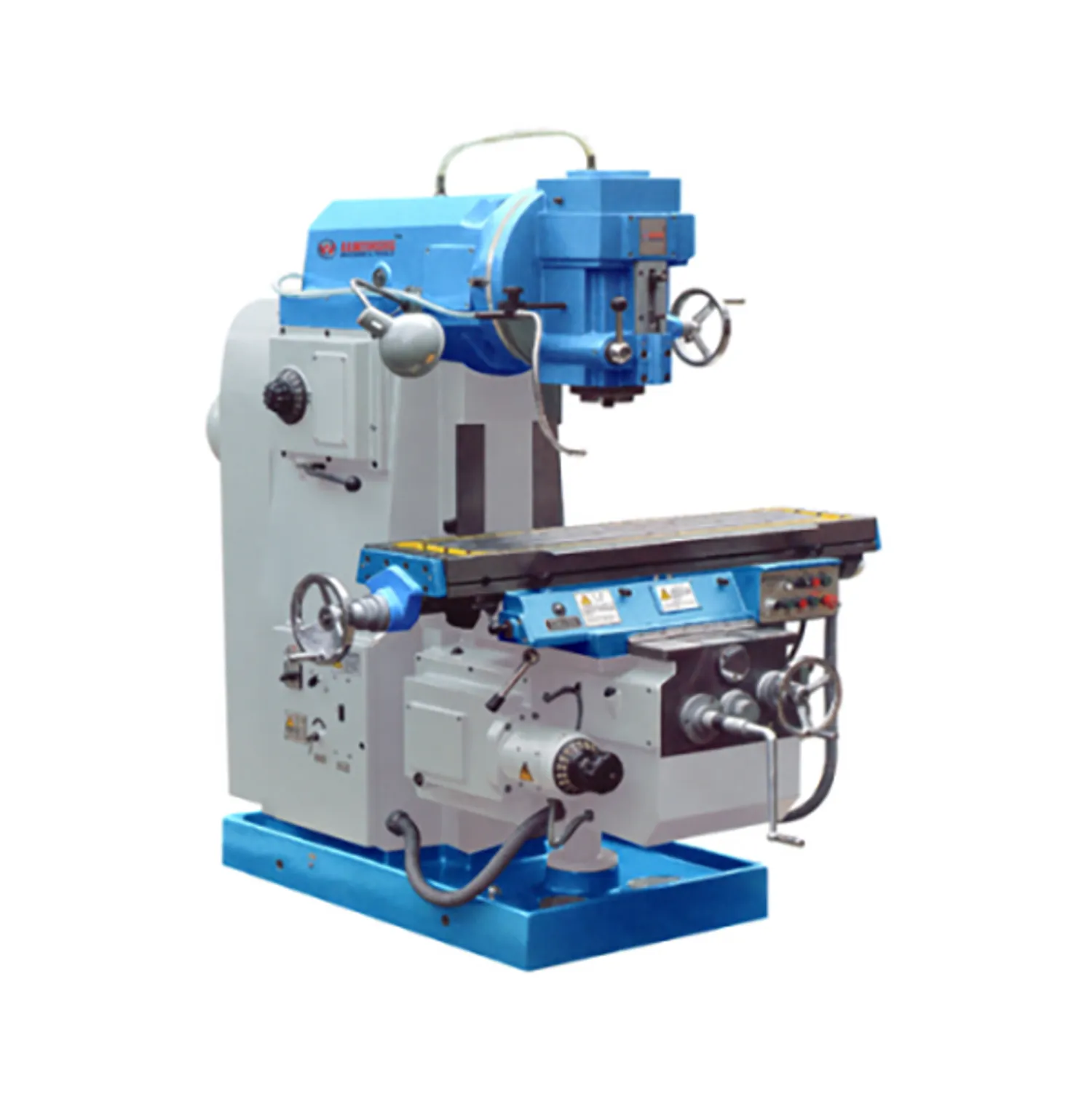

WM5032 Universal Milling Machine

WM5032 Universal Milling Machine
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WM5032 Universal Milling Machine

    Item No: 10205132

    Product Categories: Universal Milling Machine

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Features

    1、Spindle quill can move vertically.Worktable is applied to automatic and rapid feed.
    2、Hardened and ground slide ways ensure high accuracy.

    Specifications
    Model No. VM5032

    Item No.

    10205132

    Specifications

    Table size

    320 x 1320 mm

    T slots

    3 x 18 x 80 mm

    Table Load-bearing

    550 kg

    Table travel (X,Y,Z) (Manual / power)

    800x300x410/780x280x400 mm

    Feed speed steps

    18 Steps

    Table feed speed ranges:

    X

    15~750 mm/min.

    Y

    15~750 mm/min.

    Z

    5.7~280 mm/min.

    Table raped fee ranges:

    X

    2250 mm/min.

    Y

    2250 mm/min.

    Z

    844 mm/min.

    Vertical milling head rotary angle

    ± 45°

    Distance from spindle nose to table

    60~470 mm

    Distance from spindle center to column

    235-535 mm

    Spindle taper

    7:24 ISO50

    Spindle stroke

    75 mm

    Arbor diameter

    Φ32 Φ40 mm

    Spindle speed steps

    18 Stapes

    Spindle speed range

    30 ~ 1500 r/min.

    Main motor power

    7.5 kw

    Feed motor power

    1.5 kw

    Coolant pump power

    120W

    Overall dimension

    2307 x 1707 x 2096 mm

    Net weight

    3300 kg


    Features&Details


    FEATURES:

    • Vertical milling head can rotate ±45°,

    • Spindle quill can move vertically.Worktable is applied to automatic and rapid feed.

    • Hardened and ground slide ways ensure high accuracy.

    • With high motor power and wide range speed,machine adapts to high speed cutting when using hard alloy cutters

    • With enough rigidity,machine can bear heavy duty processing.

    • Complete coolant and lubrication system.DRO equipment is optional.
