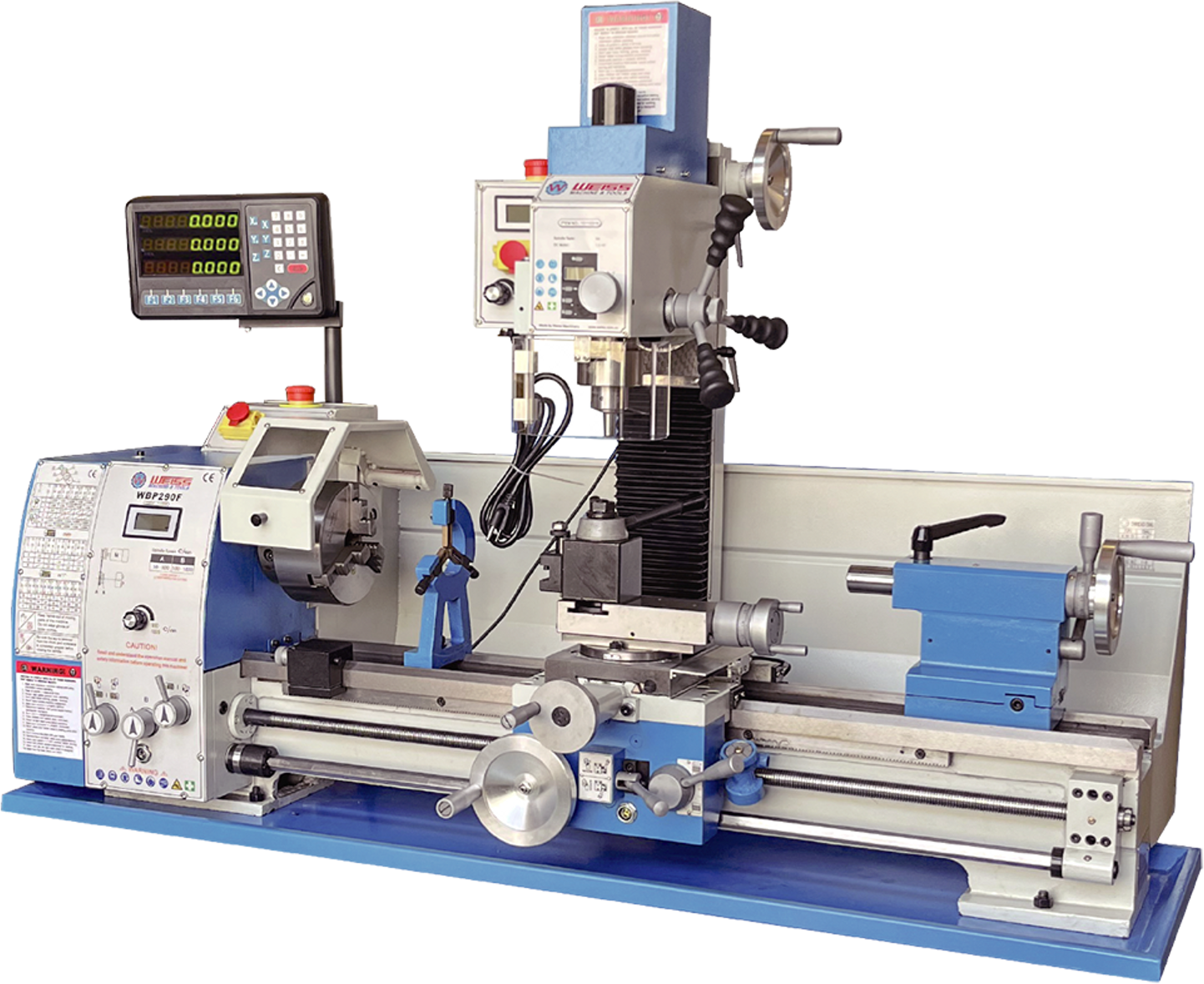

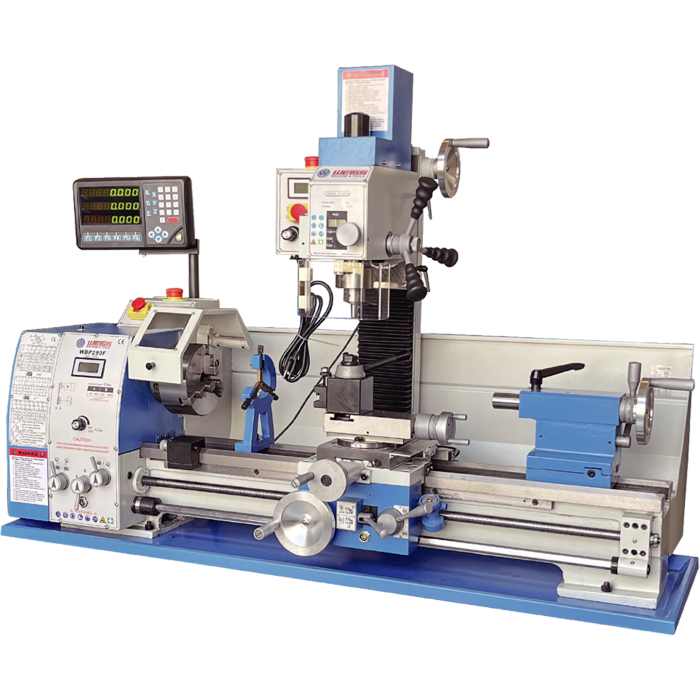

WBP290F-Lathe & Mill&Drill Combination Machine

WBP290F-Lathe & Mill&Drill Combination Machine
WBP290F-Lathe & Mill&Drill Combination Machine
WBP290F-Lathe & Mill&Drill Combination Machine
WBP290F-Lathe & Mill&Drill Combination Machine
  • Min. Order: 1 Bag/Bags
  • Transportation: Others
Share:
MOB:19962018358 Contact Us >
Product Detail Description
Product Attributes

Model No.WBP290F Lathe & Mill&Drill Combination Machine

Item No=10103295

Packaging & Delivery
Selling Units: Bag/Bags
Supply Ability & Additional Information

TransportationOthers

Product Description

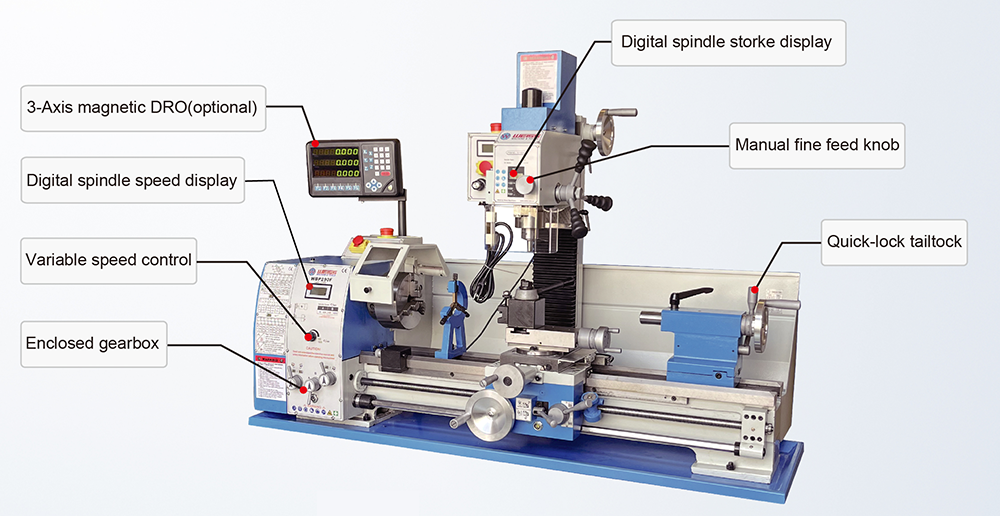

Features
1. WBP290F is an excellent choice for those who want to  machine the parts without having to dedicate a large amount of shop space.
2. This combination unit adds a variable-speed milling head to the lathe, giving you two versatile       metal working machines in one. It fully equipped with work-holding and tool-holding equipment     and accessories to get you started turning, drilling, milling, chambering, boring, and facing
3. Hardened and ground V-ways bed
4.Separate lead screw and feed rod
5. All guides can be adjusted by wedge strips
6. Right / left rotation in the control panel switchable
7. Hardened main spindle mounted in adjustable precision  tapered roller bearings
8. Lathe hardened spindle nose with Ø 38 mm spindle bore
9. Tailstock for taper turning ± 5 mm adjustable
10. Quick, easy and tool-free adjustment of the tailstock by a clamping lever
11. Change gear set in the standard scope of delivery for thread cutting
12. Mill spindle is supported by high precision taper roller  bearing
13. Mill head with high torque, low noise and powerful 1100W brushless motor, easy maintenance
14. Single speed tooth belt drive provide convenient and reliable operation with quiet running for    mill head
15. Variable-speed mill spindle from 100 to 2,250 rpm with DRO
16. Coarse and fine mill spindle downfeed
17. Drilling and milling head can be tilted by ±90° on both sides, thus drilling and milling in angular position as required

Specifications

CONTENT METRIC INFO. IMPETRIAL INFO.
ITEM NO.
10103295
Specifications Metric(mm) Imperial (in)
Lathe
Distance between centers 750 mm
Swing over bed 280 mm
Swing over cross slide 170 mm
Width of bed 180 mm

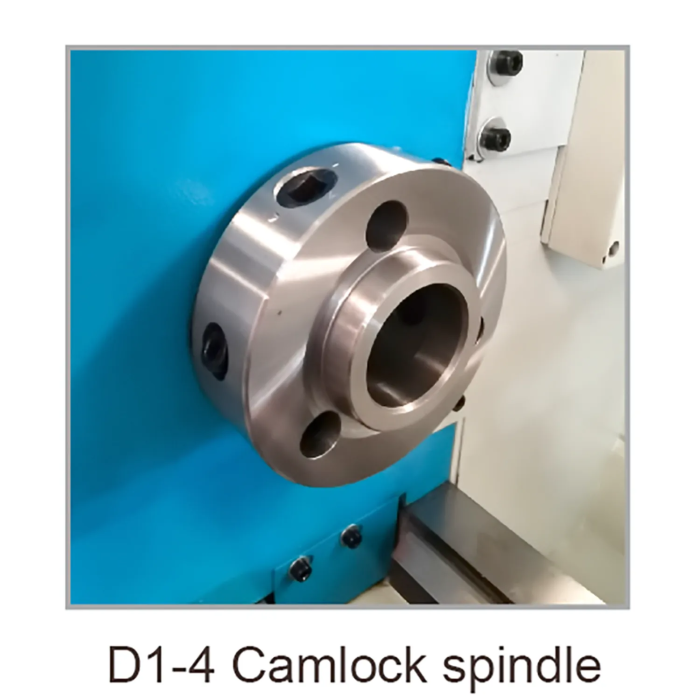

Taper of spindle bore MT5/D1-4
Spindle bore 38 mm
Range of spindle speeds 100-1800 RPM(Variable)
Range of longitudinal feeds 0.07-1.0mm
Range of cross feeds 0.017-0.25mm
Range of inch threads 8-56 T.P.I
Range of metric threads 0.2-3.5 mm
Top slide travel 85 mm

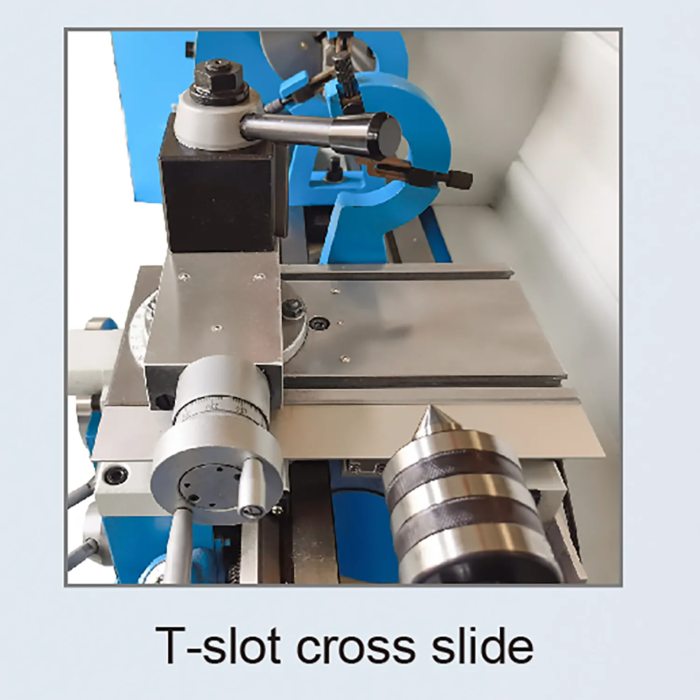

Cross slide travel 170 mm
Tailstock quill travel 80 mm
Taper of tailstock quill MT3
Motor 1.5 KW
Mill & Drill
Taper of spindle bore MT3
Spindle stroke 50 mm
Spindle speed 100-2250 rpm
Max. distance spindle to table 260mm
Max. distance spindle to column 185 mm
Motor 1.1 KW
Packing size 1500x760x1050 mm
Net weight 280 kg

Features&Details


FEATURES:

1. WBP290F is an excellent choice for those who want to machine the parts without having to dedicate a large amount of shop space.
2. This combination unit adds a variable-speed milling head to the lathe, giving you two versatile metal working machines in one. It fully equipped with work-holding and tool-holding equipment and accessories to get you started turning, drilling, milling, chambering, boring, and facing
3. Hardened and ground V-ways bed
4.Separate lead screw and feed rod
5. All guides can be adjusted by wedge strips
6. Right / left rotation in the control panel switchable
7. Hardened main spindle mounted in adjustable precision tapered roller bearings
8. Lathe hardened spindle nose with Ø 38 mm spindle bore
9. Tailstock for taper turning ± 5 mm adjustable
10. Quick, easy and tool-free adjustment of the tailstock by a clamping lever
11. Change gear set in the standard scope of delivery for thread cutting
12. Mill spindle is supported by high precision taper roller bearing
13. Mill head with high torque, low noise and powerful 1100W brushless motor, easy maintenance
14. Single speed tooth belt drive provide convenient and reliable operation with quiet running for mill head
15. Variable-speed mill spindle from 100 to 2,250 rpm with DRO
16. Coarse and fine mill spindle downfeed
17. Drilling and milling head can be tilted by ±90° on both sides, thus drilling and milling in angular position as required




Standard Accessories


STANDARD ACCESSORIES: INCLUDED
3-Jaw chuck (160mm) yes
Lathe high/low variable spindle speed yes
Digital display of speed range

yes

Leadscrew and feed rod yes
Power longitudinal&cross feed yes
Micrometer carriage stop

yes

Chip tray yes
Splash guard yes
Switch-off chuck cover yes
Drill chuck 3-16mm yes
Arbor yes
Drawbar yes
Toolbox & tools yes

Optional Accessories

OPTIONAL ACCESSORIES: Item NO.:
Steady rest 30108001
Follow rest 30108002
Face plate240mm) 30108003
4-Jaw chuck(160mm) 22014104
Back plate for 4-Jaw chuck 30108005
Leadscrew cover 30108015
Tool post cover 30108020
Threading dial(Metric/Inch) 30108025/30108026
7 pcs 12mm Alloy turning tools 21020117
HHS 25PCS drill sets 1-13mm 21210252
20 PCS HSS Tin-coated end mill set, 3-20mm 21100020
5 pcs Center drill set 21200005
58pcs clamping kits M 10 x 1.5/11.7mm 22038022
Mill chuck set ER32 MT3 3-20mm 12pcs 22030233
Machine Vise BMS100 22101024
2 way precision tilting vise WOA100 22102104
Rotary Table RT100 22111510
Wedge type tool post sets 251-111 22123021
Euro type tool post set TOOA1 22121001
ER32 Collet Fixture ER32-130/160 22050109
Z-Axis elevator motor 30202047
3-Axis Magnetic DRO (D80) 23073347
3-Axis Optical DRO (SINO) 23080347
Stand 30108030

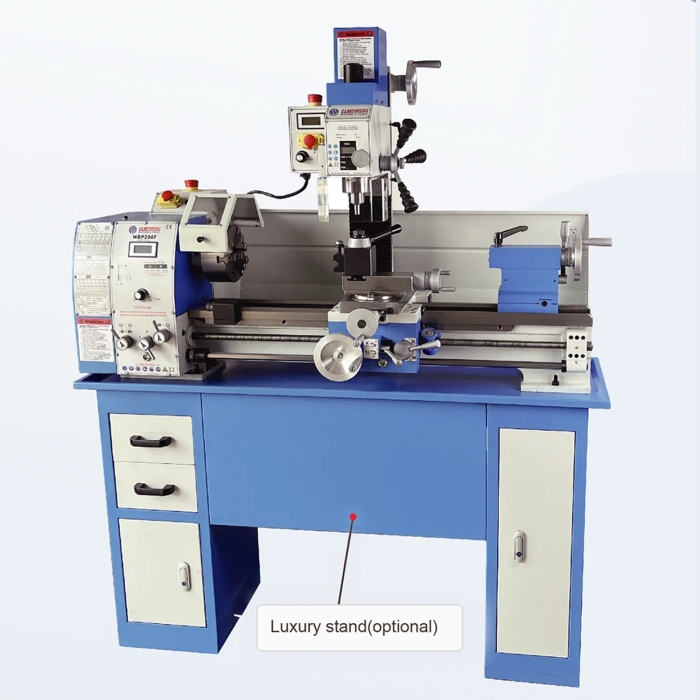

Luxury Stand 30108035
