| Selling Units: | Bag/Bags |
|---|
Transportation: Others

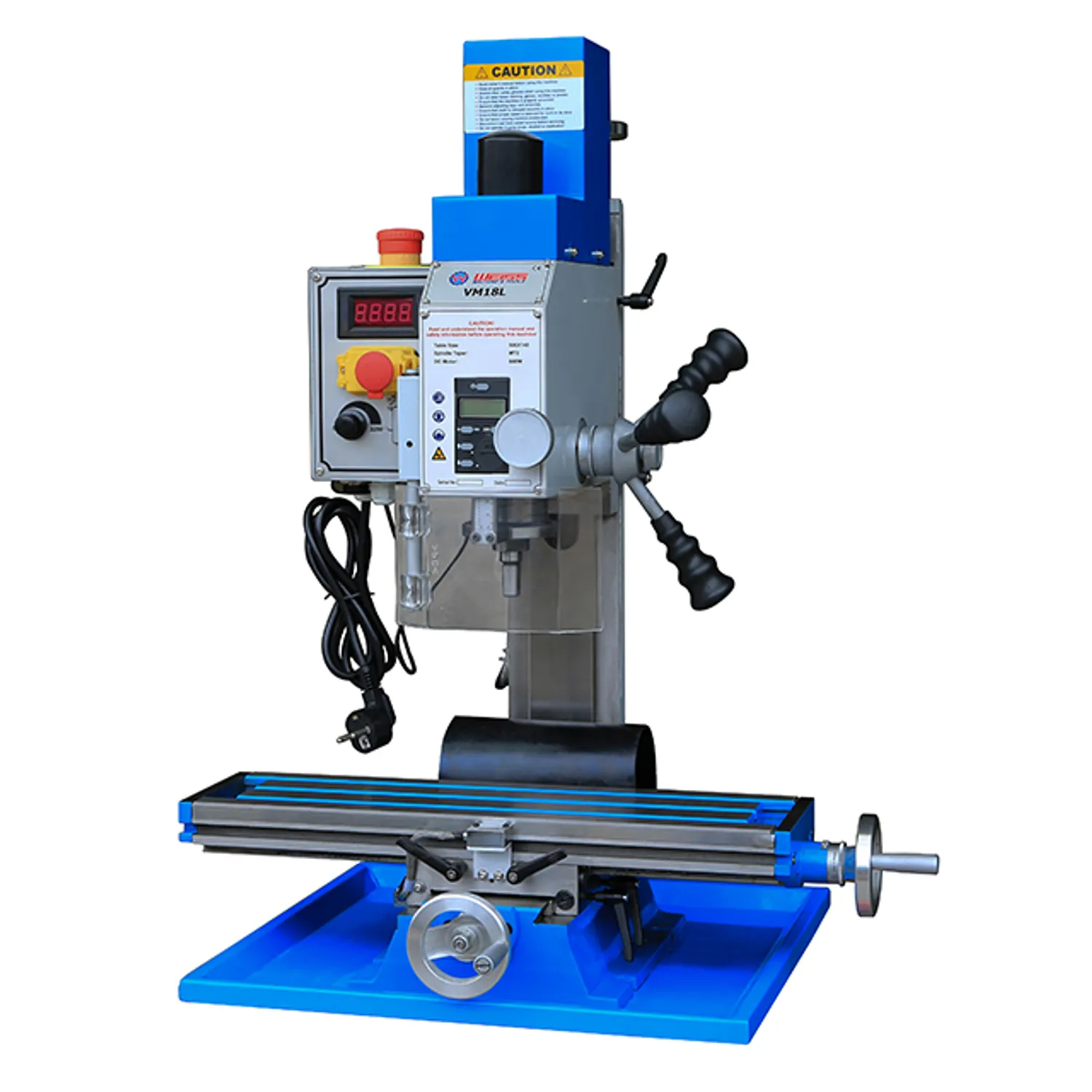

| Model No. | VM18(L) |
| Item No. | 10203180/10203185 |
| Specifications | |
| Max. drilling capacity | 18mm |
| Max. end milling capacity | 16mm |
| Max. face milling capacity | 50mm |
| Table size | 400x120mm 500x140mm |
| Table travel (X,Y) | 220x130mm 320x130mm |
| T-slot | 3x10mm |
| Spindle taper | MT2 |
| Spindle stroke | 50mm |
| Step of spindle speeds | Variable |
| Range of spindle speeds | 100-2500rpm |
| Spindle incline angle | ±90° |
| Distance from spindle to column | 170mm |
| Distance from spindle nose to table | 275mm |
| Motor | 0.75kw |
| Packing size | 480x450x840mm 510x480x750mm |
| Net weight | 65kg 68kg |
FEATURES:
Variable speed enables to operate easily.Spindle is supported by high precision taper roller bearing.
Single speed belt drive provide more quiet and easy operation.Mill head can be tilled +90.
Precision manual fine down feed.Easy reading scale has satin chrome finish.
Bigger table provides more capacity.
Dovetail column,base & worktable with adjustable taper gibs.
| STANDARD ACCESSORIES |
| Drill chuck 3-16/B16 |
| Drawbar |
| Arbor MT3/B16-M10 |
| Digital depth ruler |
| Spindle Cover With Micro Switch |
| Toolbox & tools |
| Opitional Accessories |
| Tapping Function |
| Keyless Drill Chucks 3-16mm |
| ER25 Collet Chucks MT2-Er25/6pcs |
| Vice Bms80 |
| HHS 19 Pcs Drill Sets |
| End Mill Sets 20PCS 3-20mm |
| 3-Axis DRO(Magnetic Scales) |
| 58pcs clamping kits M10 |
| Oil Tray |
| Stand |
| Luxury Stand |
