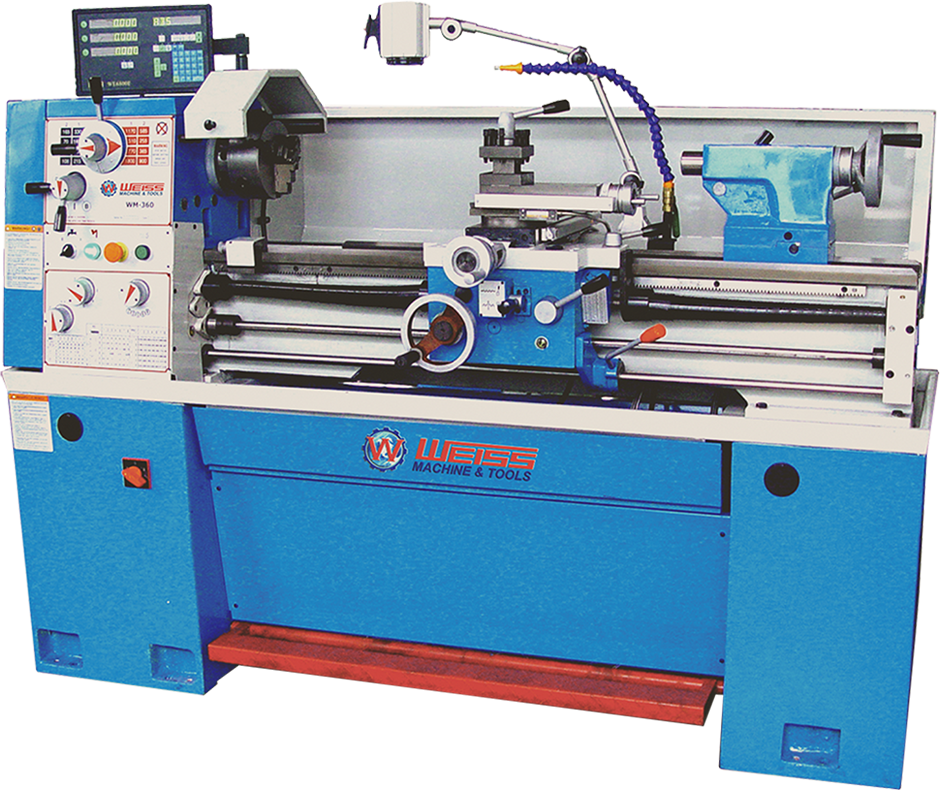

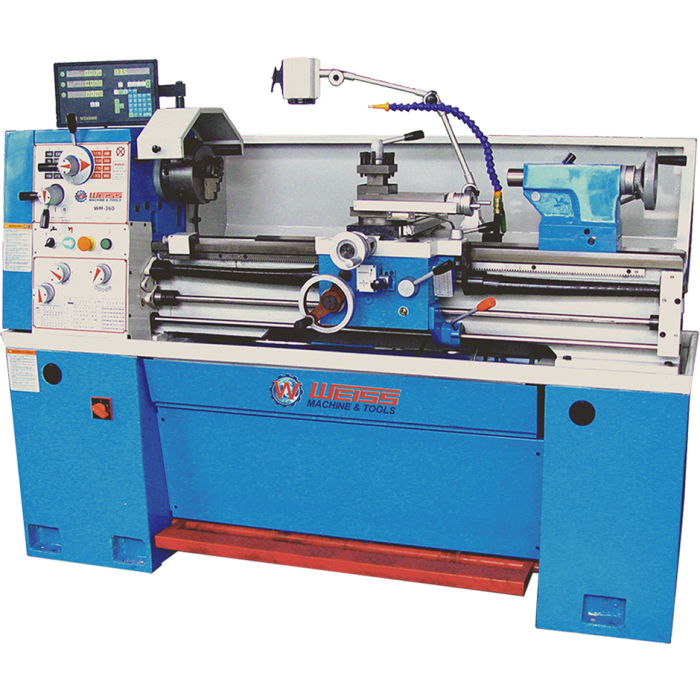

WM360 ENGINE LATHE MACHINE

WM360 ENGINE LATHE MACHINE
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WM360 Engine Lathe Machine

    Distance Between Centers: 1000mm

    Customization: Basic configuration  Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications

    Model No. WM360
    ITEM NO. 10106362
    Specifications： Metric(mm) Imperial (in)
    Distance between centers 1000mm 39-3/8"
    Swing over bed 356mm 14-1/64"
    Swing over gap 506mm 19-59/64"
    Swing over cross slide 210mm 8-17/64"
    Width of bed 206mm 8-7/64"
    Taper of spindle bore MT5 MT5
    Spindle nose D1-4 D1-4
    Spindle bore 38 mm 1-1/2"
    Number of spindle speeds 16 16
    Range of spindle speeds 45-1800 rpm 45-1800 rpm
    Range of cross feeds 0.015-0.220mm/r 0.0006"~0.0087"/r
    Range of longitudinal feeds 0.043-0.653mm/r 0.0017"~0.0257"/r
    Range of inch threads 4-56 T.P.I 4-56 T.P.I
    Range of metric threads 0.4-7mm 0.4-7mm
    Top slide travel 92mm 3-5/8"
    Cross slide travel 180mm 7-3/32"
    Carriage travel 945mm 37-13/64"
    Travel of tailstock quill 115mm 41-7/32"
    Taper of tailstock quill MT3 MT3
    Motor 1.5KW/2.2KW 1.5KW/2.2KW
    Machine Size 1822x787x1260mm 71-47/64"x30-63/64"x49-39/64"
    Packing size 1920x760x1450mm 75-19/32"x29-59/64"x57-3/32"
    Net weight 800 kg 1763lb

    Features&Details


    FEATURES:

    1. Induction hardened, precision ground V-way bed.
    2. D1-4 spindle is supported by high quality tapered roller bearing.
    3. Hardened, precision ground gears in headstock.
    4. High precision directly mounting chuck.
    5. Carriage mounted spindle control lever.
    6. Automatic feed and threading are fully interlocked.
    7. Tailstock may be offset for turning tapers.




    Standard Accessories

    STANDARD ACCESSORIES: INCLUDED
    3-Jaw Chuck(160mm) yes
    4-jaw chuck(200mm) yes
    Splash Guard

    yes
    Halogen work lamp yes
    Face Plate (300mm) yes
    Steady Rest

    yes
    Follow Rest yes
    Chip Tray yes
    Stand&oil tray yes
    Toolbox & Tools yes

    Optional Accessories

    OPTIONAL ACCESSORIES: Item NO.:
    Taper turning attachment -
    Turning tools -
    Quick change tool post -
    Digital readout system -
    Leadscrew cover -
    Tool post cover -
    Micro carriage stop -
