| Selling Units: | Bag/Bags |
|---|
Transportation: Others

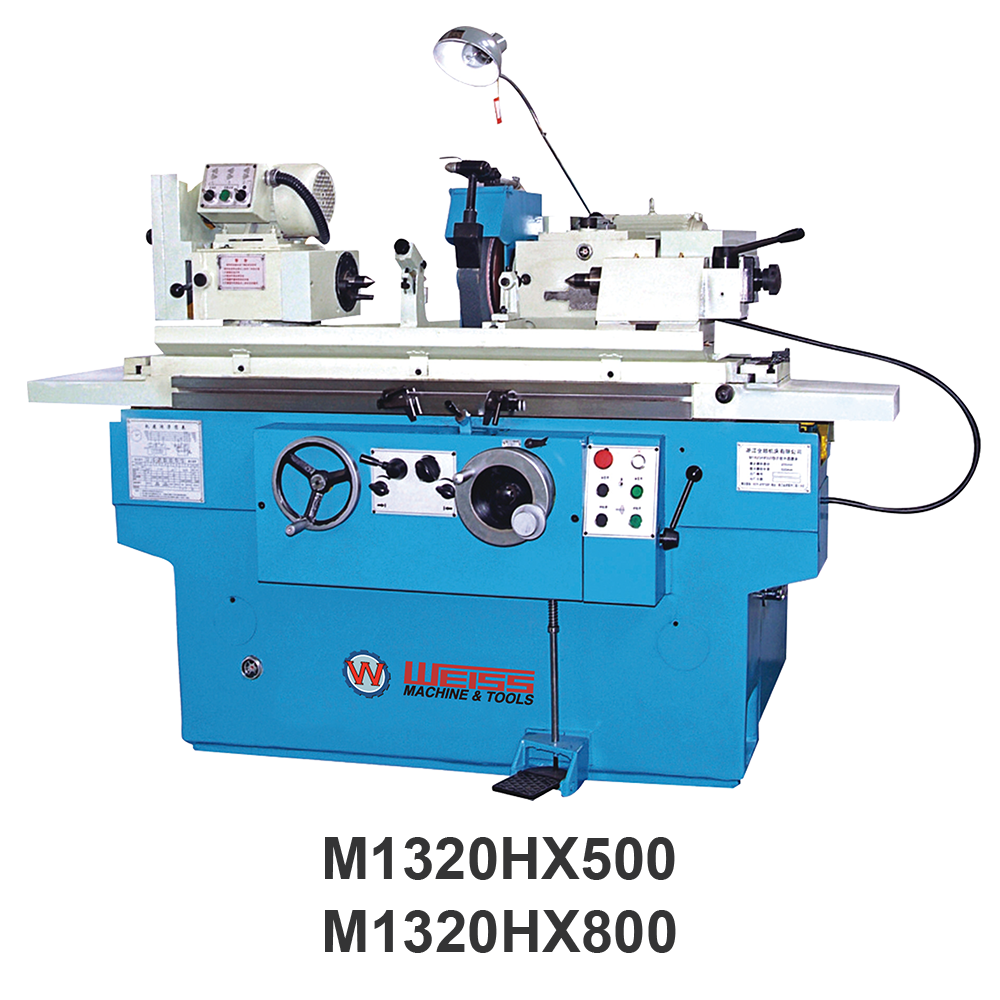

| Model No. | Unit | M1320HX500 | M1320HX800 |
| Item No. | 10432005 | 10432008 | |
| Specifications： | |||
| External grinding diameters | mm | Φ8 ~ 200 | Φ8 ~ 200 |
| Center height | mm | 135 | 135 |
| Max.travel of table | mm | 650 | 950 |
| Hydraulic traverse speeds | m/min | 0.1~4 | 0.1 ~4 |
| Max.traval of worktable | kg | 50 | 50 |
| Grinding length external | mm | 500 | 800 |
| Swinel range of worktable | -5° ~ +9° | -3° ~ +7° | |
| Max peripheral speed of grinding wheel | m/s | 38 | 38 |
| External wheel size | mm | Max Φ400x50xΦ203 | Min Φ280x50xΦ203 |
| Workhead and tailstock center | morse | NO.4 | NO.4 |
| Machine motor power | kw | 5.625 | 5.625 |
| Overall dimensions(LxW~H) | mm | 2500x1600x1500 | 3000x1600x1500 |
| Machine weight | kg | 2500 | 3000 |
| Working Accuracy | |
| O.D.Roundness | 1.5um |
| Uniform of dia. in longitudinal section | 5um |
| Surface roughness | Ra 0.32um |
| Features: |
|
| Main Accessories: | |
| Coolant tank | |
| Grinding wheel dresser | |
| Wheelfianges | |
| Wheel balancing mandrel | |
| Supportiron | |
| Open type steady rest | |
| Driving dog | |
| Carbide-tipped center | |
| Extra Accessories: | |
| Wheel Balancing stand | |
| End-face dresser |
