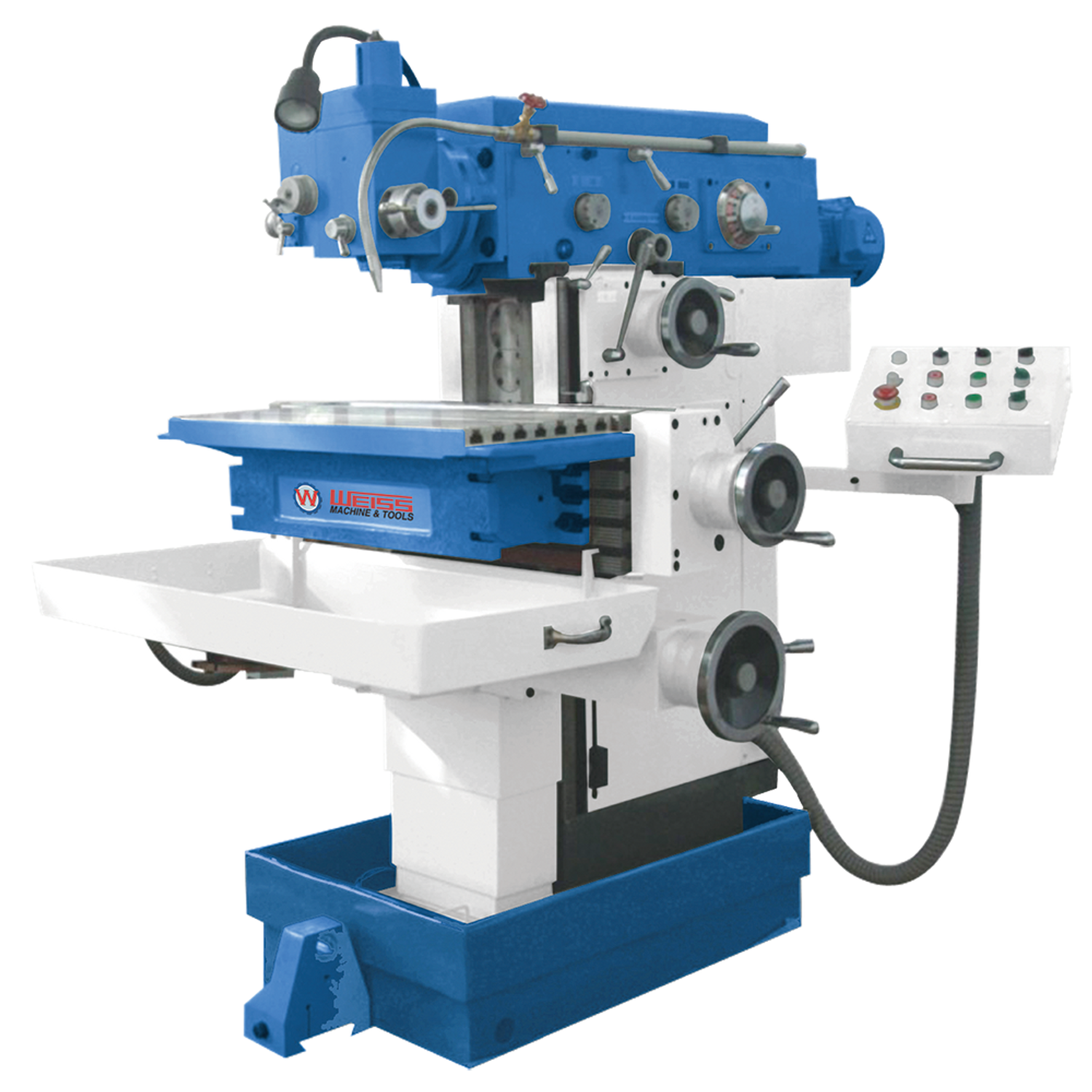

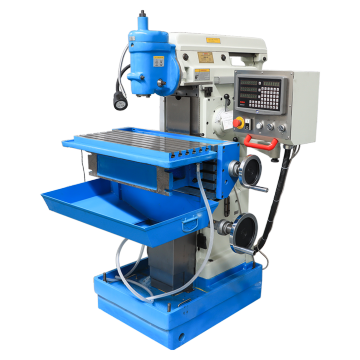

Name: WM8140 Toolroom Milling Machine
Brand: Weiss Machinery
Rating: 5.0 (40 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Features

1、Original structure,broad versatility,high accuracy,easy to operate.
2、With various attachments to extend range of application and raise utilization.

Specifications

Model No.	VM8140
Item No.	1020040
Specifications
Table size	Horizontal working table	800 x 400 mm
	Vertical working table	950 x 250 mm
Longitudinal / Transverse / Vertical travel		500/350/400 mm
Universal table	Horizontal swivel	±360°
	Inclination to front and rear	±30°
	Inclination on left and right	±30°
Vertical milling head	Vertical travel of quill	60 mm
	Axis inclination on left and right	±90°
Horizontal spindle	Spindle taper	ISO40
	The height from axis to ground	1330 mm
	Min. distance between axis and surface of horizontal table	35 mm
Vertical spindle	Spindle taper	ISO40
	Min. distance between nose and surface of horizontal table	5 mm
Horizontal and vertical spindle speed: steps / range ( rmp)		18 steps / 40~2000
Longitudinal, transverse and vertical feeds: steps / range (mm/min.)		18 seps / 10~500
Vertical milling spindle feed (mm/rev.)		3 steps / 0.03~0.12
Power of main motor / Feed motor		3 kW / 1.5 kW
Max. table load		300 kg
Overall dimensions		1820x1640x1710 mm
Net weight		2300 kg
