| Selling Units: | Bag/Bags |
|---|
Transportation: Others

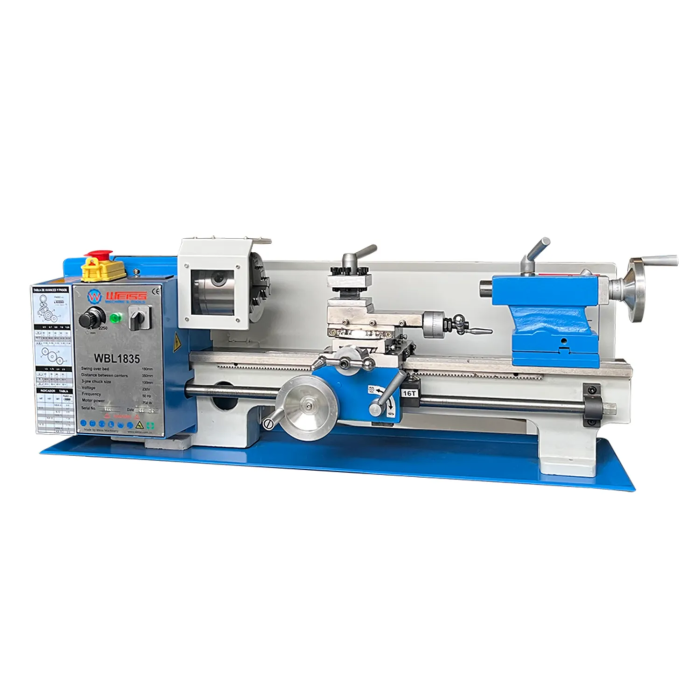

1. This powerful valuable Mini Metal Lathe with 550W Brushless Motor provide variable speeds from 100 - 2250 rpm.
2. Amazing size but packed full of features, this strong machine could provide the perfect introduction to those wanting to start metal turning for the first time.
3. This mini lathe is small enough to fit into the corner of the workshop and light enough to be truly portable. The capacities, 180mm diameter and 350mm between centres, are surprisingly large for a machine of this overall size.
| CONTEN | METRIC INFO. | INCHES INFO. |
| ITEM NO. | 10103083 | |
| Distance between centers | 350mm | 13-25/32" |
| Swing over bed | 180mm | 7-3/32" |
| Swing over cross slide | 110mm | 4-21/64" |
| Width of bed | 82mm | 3-15/64" |
| Taper of spindle bore | MT3 | MT3 |
| Spindle bore | 20mm | 25/32" |
| Range of spindle speeds | 100-2250 rpm | 100-2250 rpm |
| Range of inch threads | 12-52 T.P.I (18) | 12-52 T.P.I (18) |
| Range of metric threads | 0.5-2.5mm (9) | 0.5-2.5mm (9) |
| Top slide travel | 55mm | 2-11/64" |
| Cross slide travel | 65mm | 2-9/16" |
| Tailstock quill travel | 60mm | 2-23/64" |
| Taper of tailstock quill | MT2 | MT2 |
| Brushless Motor | 550W | 550 W |
| Machine Size | 800x400x400mm | 31-1/2"x15-3/4"x15-3/4" |
| Packing size | 830x330x380mm | 32-43/64"x12-63/64"x14-61/64" |
| Net weight | 38KG | 83lb |
FEATURES:

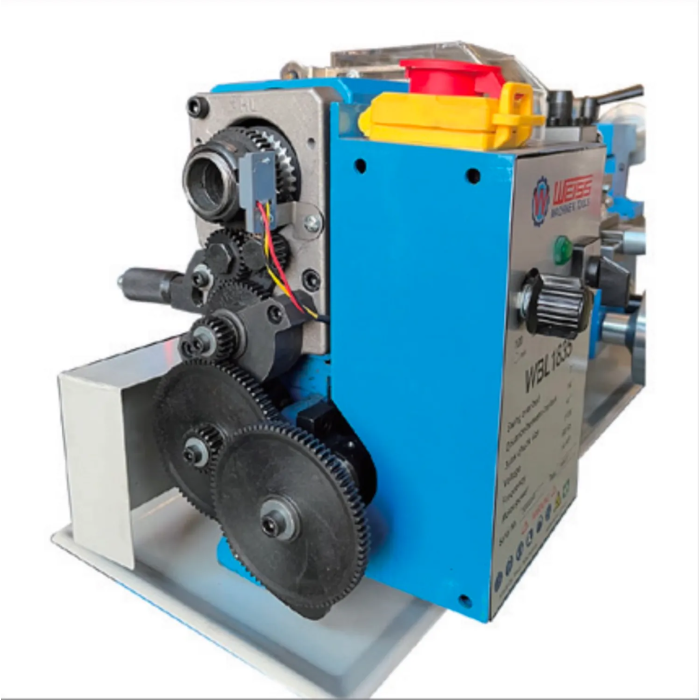

[2] Inch & Metric thread, Left & Right hand thread cutting is avaialbe

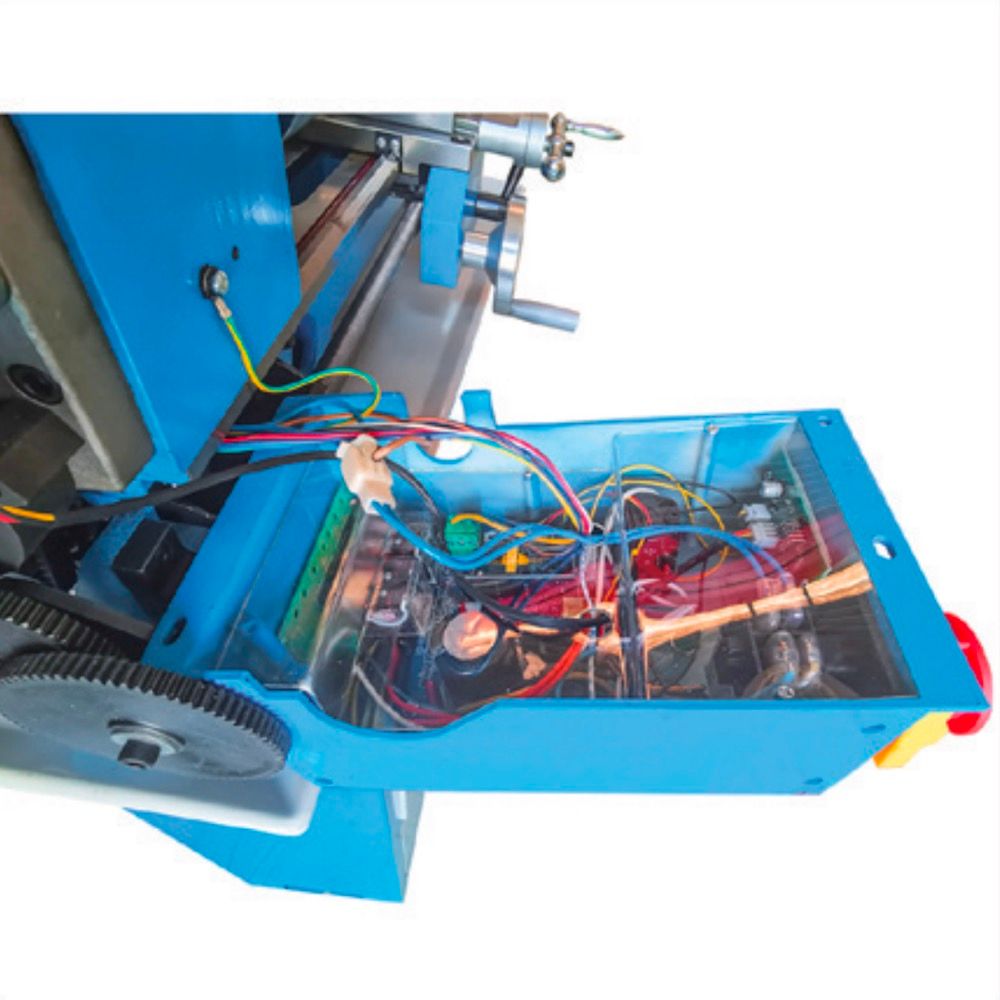

[3] Enclosed electric parts protective cover provide safety from the chips and dust
| STANDARD ACCESSORIES: | INCLUDED |

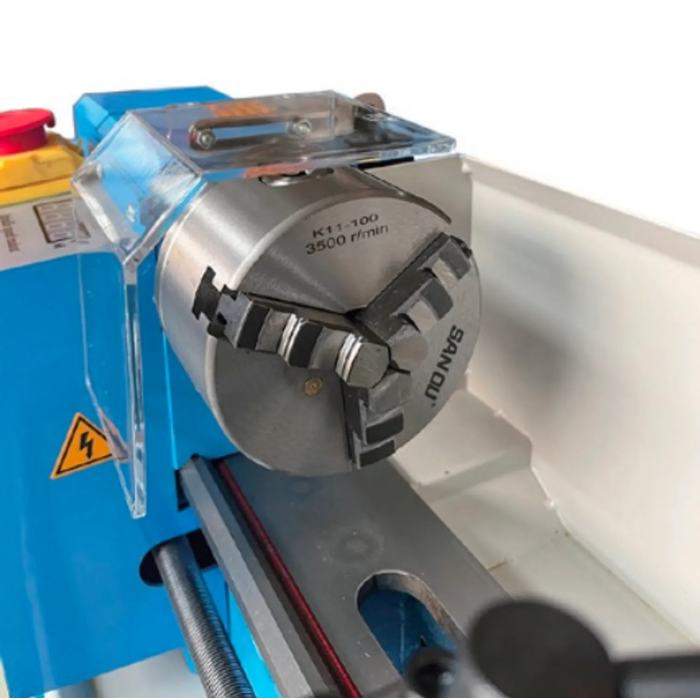

| 3-Jaw chuck (100mm) | yes |
| Variable spindle speed | yes |
| Digital display of speed range | yes |
| Chip tray | yes |
| Splash guard | yes |
| Switch-off chuck cover | yes |
| Toolbox & toos | 1 set |
| OPTIONAL ACCESSORIES: | Item NO.: |
| Steady rest | 30011001 |
| Follow rest | 30011002 |
| Face plate | 30011003 |
| 4-Jaw chuck(100mm) | 22014102 |
| Backplate for 4-Jaw chuck | 30011005 |
| Leadscrew cover | 30011015 |
| Tool post cover | 30011020 |
| Threading dial(Metric/Inch) | 30111025/30111026 |
| 7 pcs 10mm turning tools | 21020013 |
| 9 pcs 12mm turning tools | 21020019 |
| Euro type tool post set TOOA0 | 22121000 |
| ER25 Collet Fixture | 22050101 |
| 2-Axis Magnetic DRO (D50) | 23072241 |

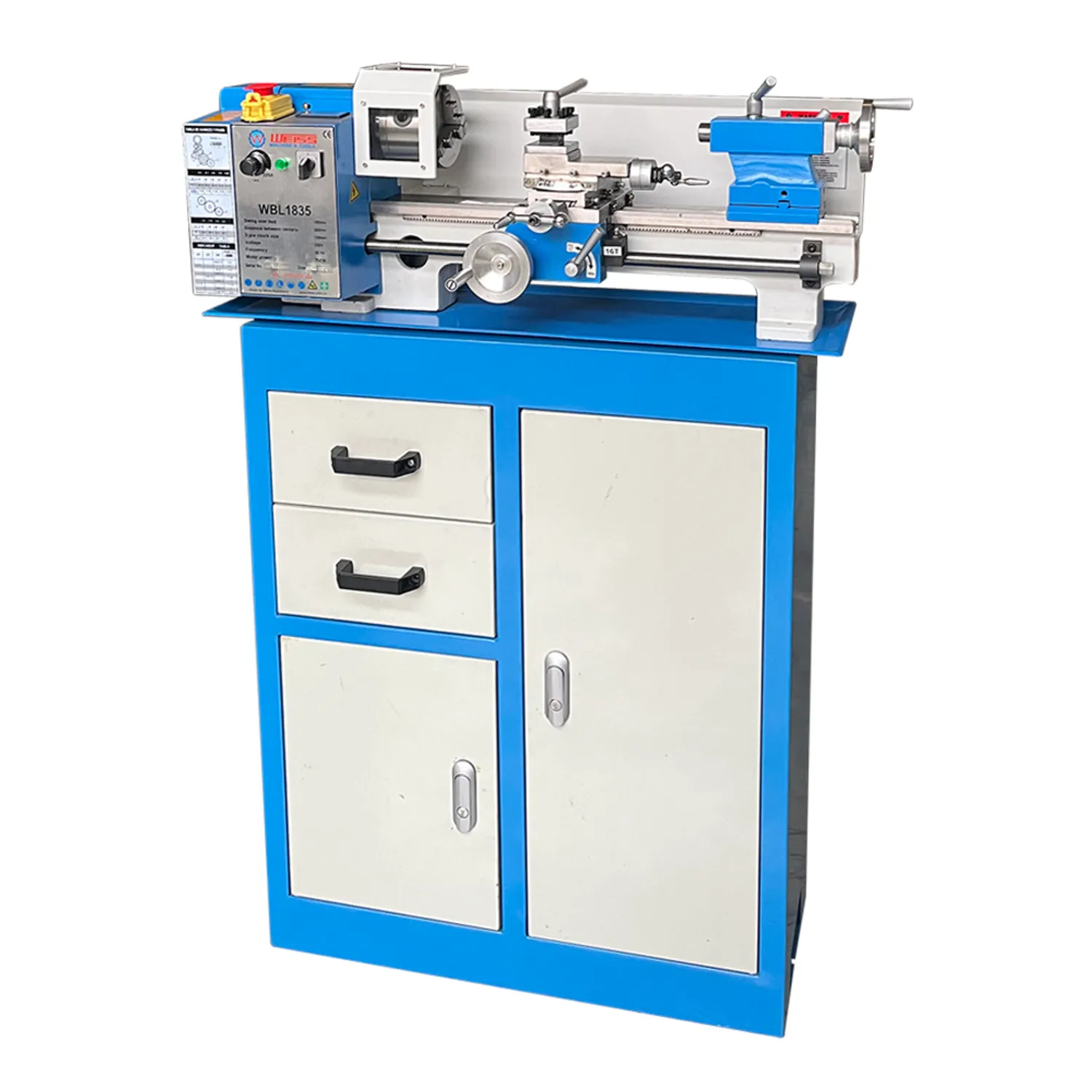

| Stand | 30101030 |
| Luxury Stand | 30101035 |
