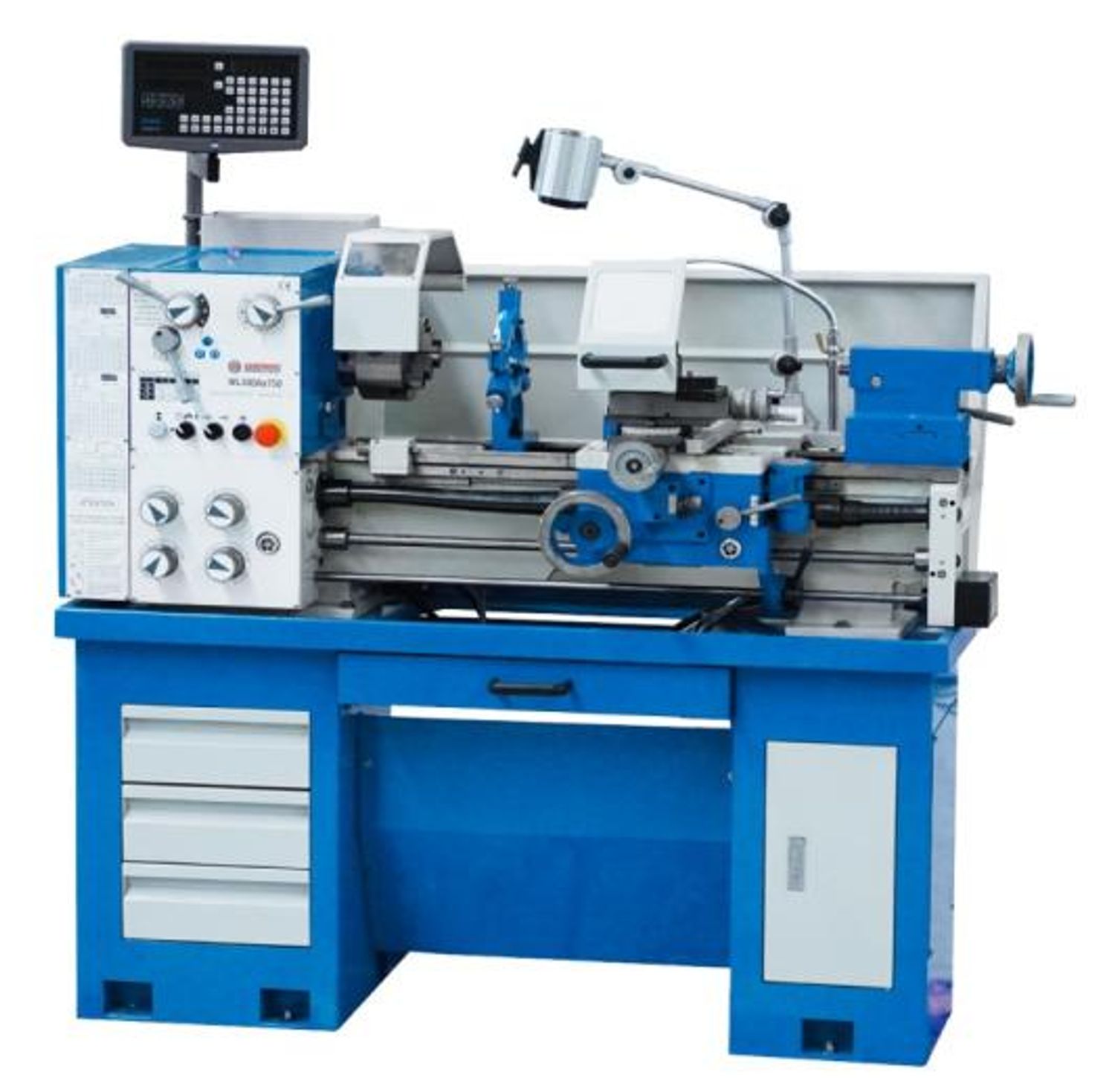

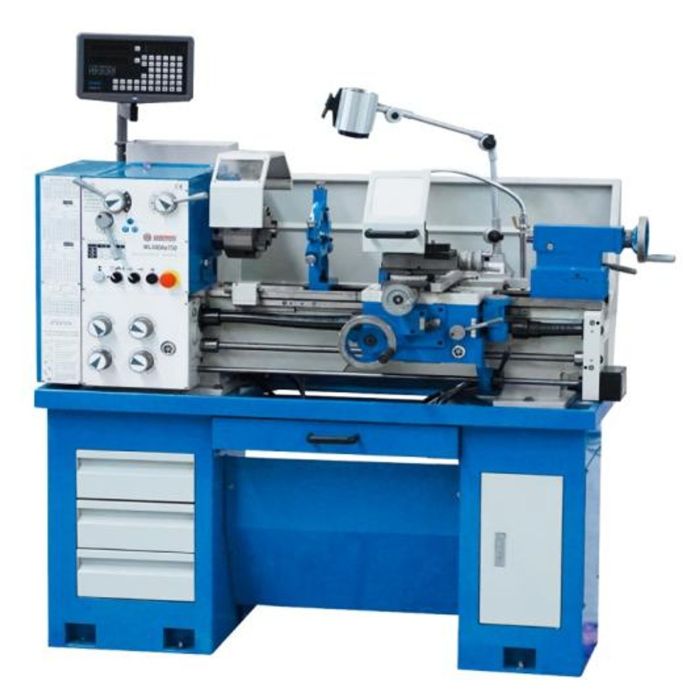

Product Description

Features

1. Economical, wide useful hobby lathe.
2. Induction hardened ground bedway.
3. Large MT5 spindle bore.
4. Spindle is supported by precision tapered roller bearing.
5. Adjustable gibs for the slideway.
6. Precise cuts with cross & longitudinal powerfeed.

Specifications

CONTENT	METRIC INFO.	IMPETRIAL INFO.	METRIC INFO.	IMPETRIAL INFO.
ITEM NO.	10106305		10106306
Distance between centers	750mm	29-17/32"	914mm	35-63/64"
Swing over bed	300mm	11-13/16"	300mm	11-13/16"
Swing over gap	430mm	16-59/64"	430mm	16-59/64"
Swing over cross slide	178mm	7-1/64"	178mm	7-1/64"
Width of bed	181mm	7-1/8"	181mm	7-1/8"
Taper of spindle bore	MT5	MT5	MT5	MT5
Spindle bore	38mm	1-1/2"	38mm	1-1/2"
Number of spindle speeds	9	9	9	9
Range of spindle speeds	75-1400 rpm	75-1400 rpm	75-1400 rpm	75-1400 rpm
Range of cross feeds	0.018-0.238mm/r	0.0007"-0.0094"/r	0.018-0.238mm/r	0.0007"-0.0094"/r
Range of longitudinal feeds	0.078-1.044mm/r	0.0031"-0.0411"	0.078-1.044mm/r	0.0031"-0.0411"
Range of inch threads	2-1/4-40 T.P.I	2-1/4-40 T.P.I	2-1/4-40 T.P.I	2-1/4-40 T.P.I
Range of metric threads	0.45-10mm	0.45-10mm	0.45-10mm	0.45-10mm
Top slide travel	76mm	2-63/64"	76mm	2-63/64"
Cross slide travel	175mm	6-57/64"	175mm	6-57/64"
Tailstock quill travel	90mm	3-35/64"	90mm	3-35/64"
Taper of tailstock quill	MT3	MT3	MT3	MT3
Motor	1.1KW	1.1KW	1.1KW	1.1KW
Packing size	1730x750x1450mm	68-7/64" x29-17/32"x57-3/32"	1960x750x1450mm	77-11/64"x29-17/32"x57-3/32"
Net weight	480kg	1058lb	550kg	1212lb

Features&Details

FEATURES:

1. Economical, wide useful hobby lathe.
2. Induction hardened ground bedway.
3. Large MT5 spindle bore.
4. Spindle is supported by precision tapered roller bearing.
5. Adjustable gibs for the slideway.
6. Precise cuts with cross & longitudinal powerfeed.

Standard Accessories

STANDARD ACCESSORIES:	INCLUDED
3-Jaw Chuck(160mm)	yes
4-jaw chuck(200mm)	yes
Splash Guard	yes
Follow Rest	yes
Steady Rest	yes
Face Plate (250mm)	yes
Chip Tray	yes
Stand & chip Tray	yes
Toolbox & Tools	yes

Optional Accessories

OPTIONAL ACCESSORIES:	Item NO.:
Coolant system	-
Foot brake	-
Halogen work lamp	-
Leadscrew cover	-
Tool post cover	-
Micro carriage stop	-
Taper turning attachment	-
Quick change tool post	-
Digital readout system	-
