| Selling Units: | Bag/Bags |
|---|
Transportation: Others

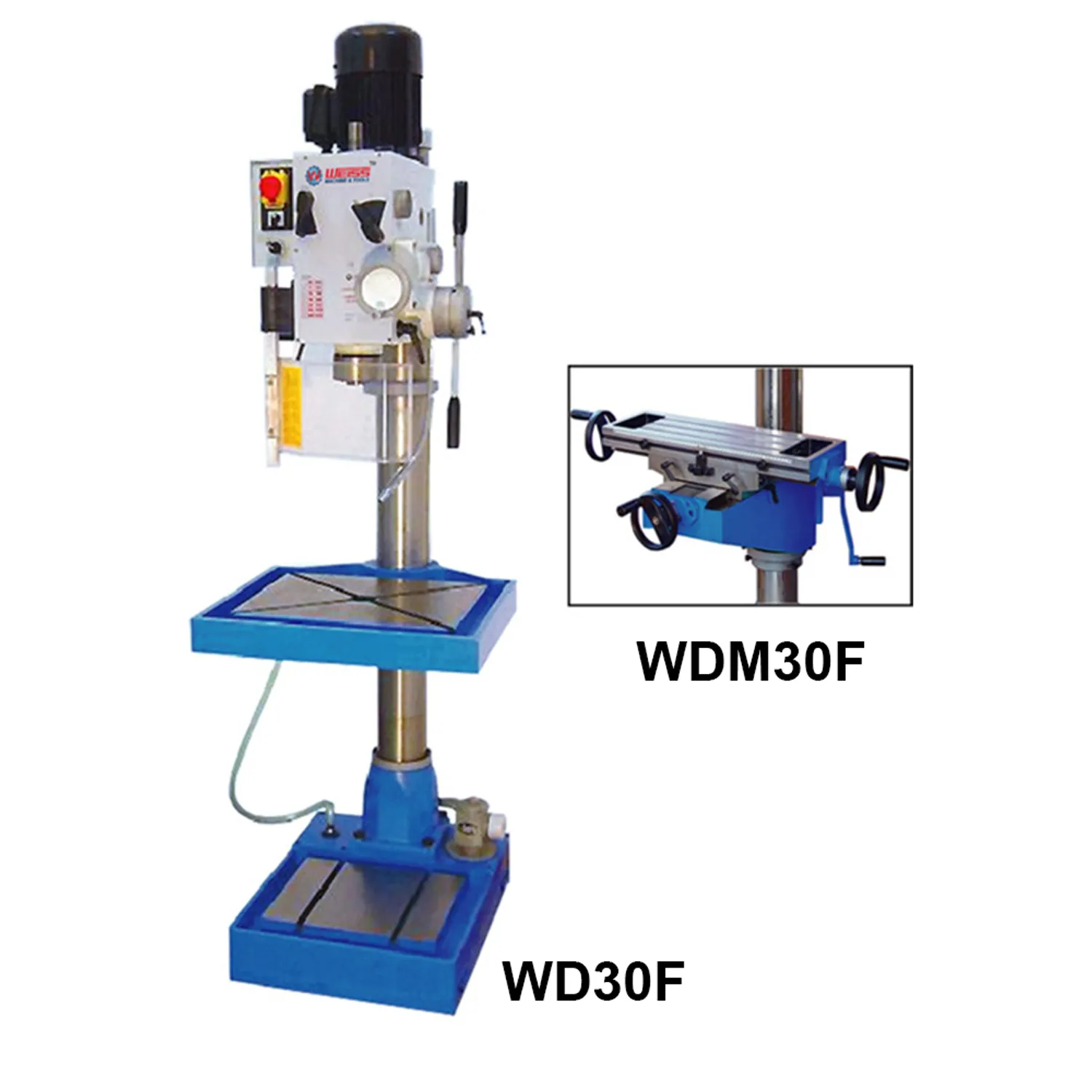

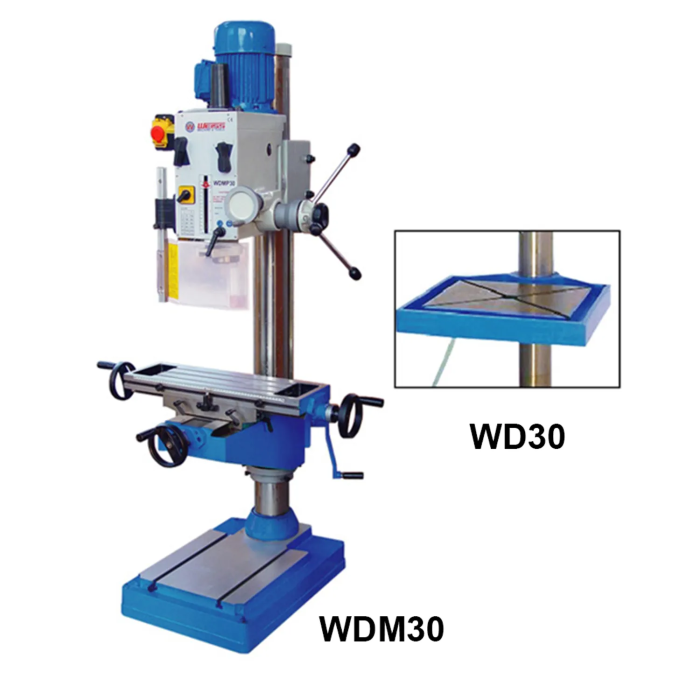

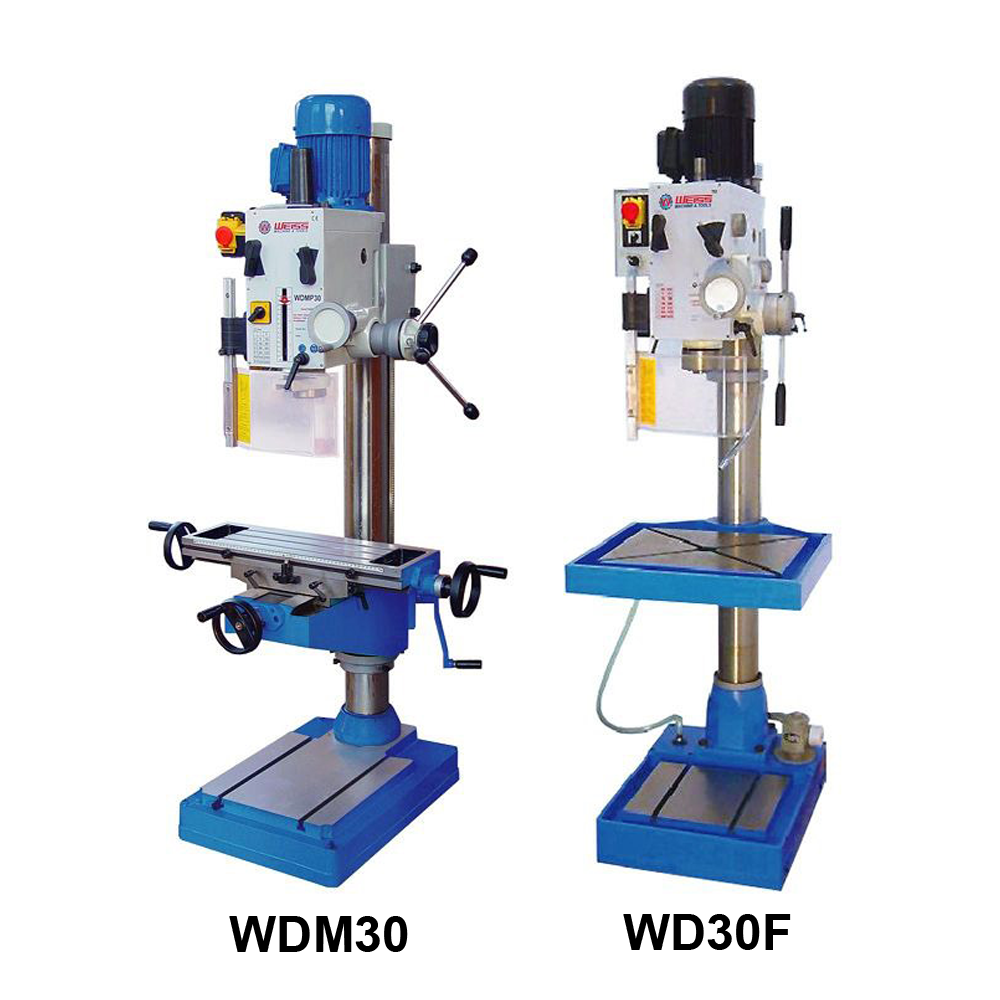

| Model No. | WD30 | WDM30 | WD30F | WDM30F |
| Item No. | 10304030 | 10304031 | 10304032 | 10304033 |
| Specifications： | ||||
| Max drilling capacity | 30mm (MT3) 40mm (MT4) | |||
| Spindle taper | MT3, MT4, R8 or ISO30 | |||
| Spindle stroke | 120mm | |||
| Step of spindle speeds | 12 ( for 2 speed motor) | 6 (for single speed motor) | ||
| Range of spindle speeds | 75 ~ 3200 rpm | 75 ~1600 rpm | ||
| Diameter of column | Φ115 mm | |||
| Distance from spindle to column | 272 mm | |||
| Distance from spindle nose to table | 610 mm | |||
| Distance from spindle end to base | 1180 mm | |||
| Table size | 540 x 470mm | 600 x 190 mm | 540 x 470 mm | 600 x 190 mm |
| Table travel | - | 370 x 190 mm | - | 370 x 190 mm |
| T-slot | 3 x 12mm | |||
| Base size | 650 x 450 mm | |||
| Main Motor | 0.85 / 1.1 kw | |||
| Packing size | 740x720x1830mm | 820x720x1830 mm | 740x720x1830mm | 820x720x1830mm |
| Net weight | 320kg | 340 kg | 330 kg | 350 kg |
