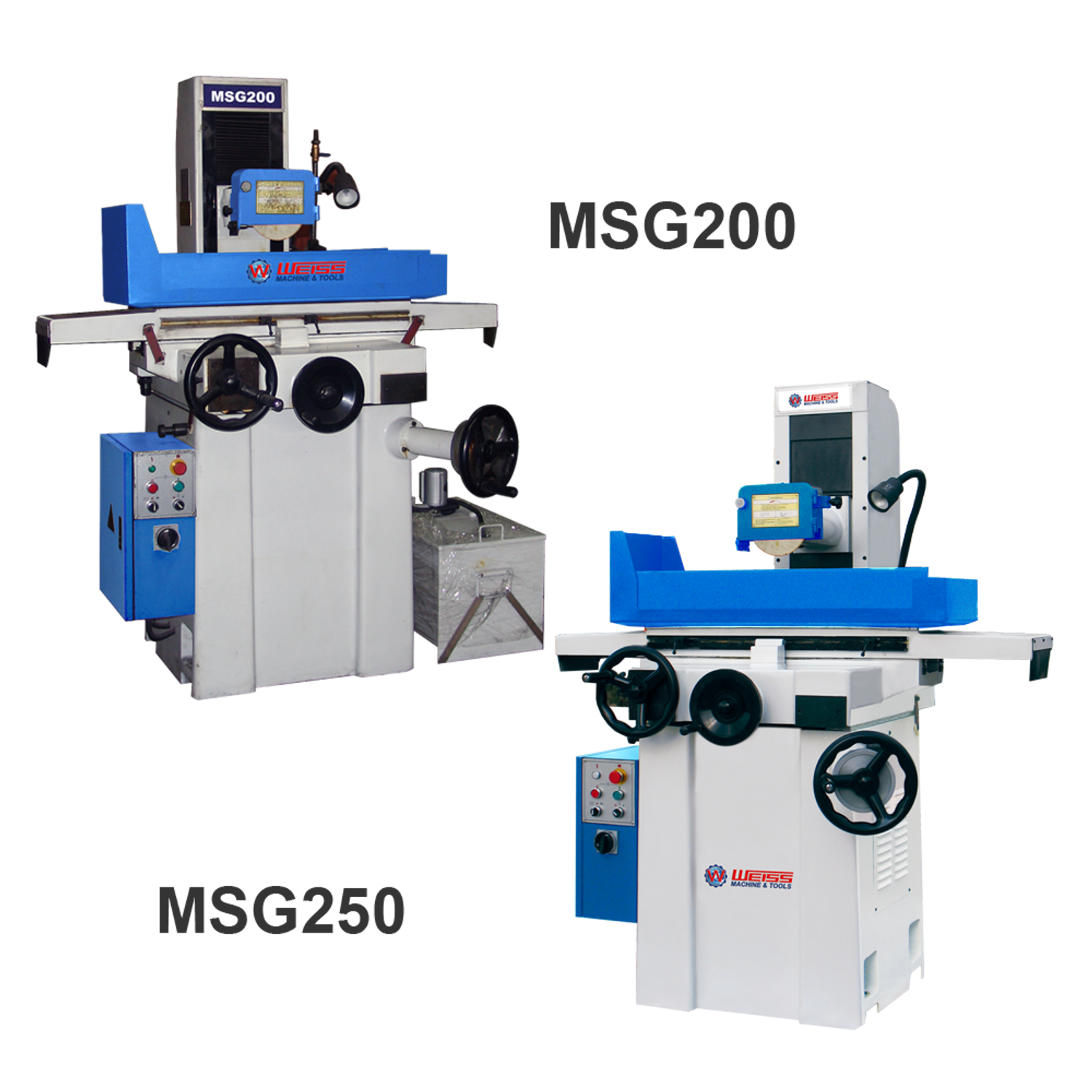

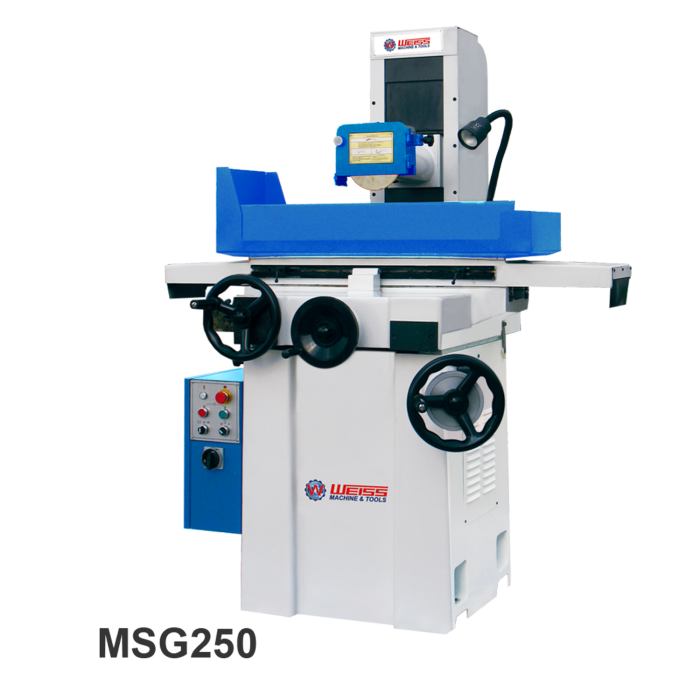

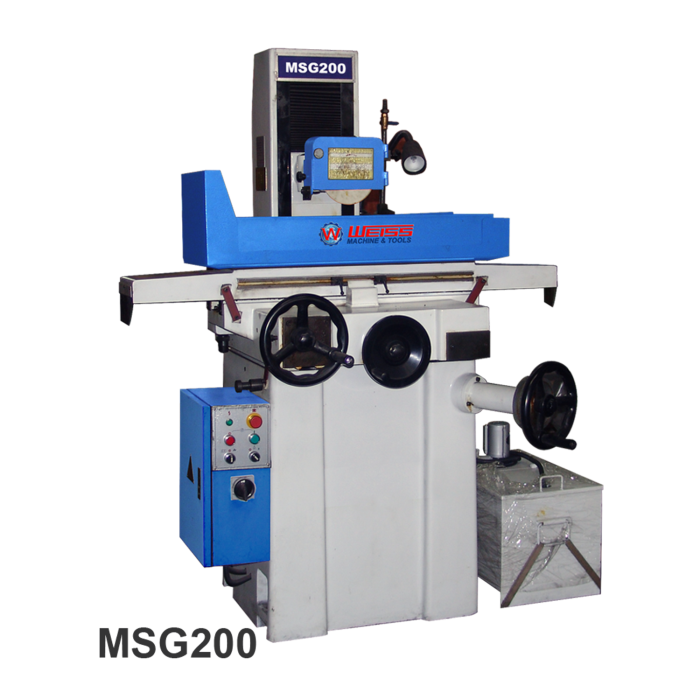

MSG200/MSG250 Manual Surface Grinding Machines

MSG200/MSG250 Manual Surface Grinding Machines
MSG200/MSG250 Manual Surface Grinding Machines
MSG200/MSG250 Manual Surface Grinding Machines
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: MSG200/MSG250

    Item No: 10401020/10401025

    Style: MSG200 MSG250

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications

    Model No. Unit MSG200 MSG250
    Item No.   10401020 10401025
    Specifications：
    Max. width to be ground mm 165 220
    Max. length to be ground mm 470 520
    Max. height to be ground mm 350
    Table size mm 150x460 200x520
    Permanent magnetic chuck size(optional) mm 150x400 200x450
    Max. longitudinal travel mm 500 570
    Max. cross travel mm 200 250
    Max. distance from spindle cenler to table surface mm 450 450

    Feed of vertical handwheel    		 Per rev. mm 2 2
    Per div. mm 0.005 0.005
    Grinding wheel size(OD*W*lD) 200x20x31.75 200x203x31.75
    Spindle speed r/min. 2850 2850
    Power of spindle head Kw 1.5 (buld inspindle 1.1) 1.5 (buld inspindle 1.1)
    Max. load capacity(include permanent magnetic chuck) Kg 110 140
    Machine weight Kg 1000 1120
    Machine appearance size mm 1360x1350x1710 1450x1390x1770
    Package dimension mm 1670x1650x1930 1670x1700x1980
    Package size (dismantle table) mm 1670x1120x1930 1670x1120x1980

    Features&Details
    • Widely useful, grind various surfaces
    • Spindle and leadscrew is imported
    • Mutiple labyrinth seal is used on spindle quill
    • Rolling ball guideway is used on longitudinal direction
    • Double V type guideways
    • Vertical handwheel is fixed on bed
    • Manual oil pump lubricates all moveable parts

    Standard Accessories

    STANDARD ACCESSORIES: INCLUDED
    Wheel yes
    Balancing arbor yes
    Hoisting set yes
    Monkey spanner yes
    Wheel chuck yes
    Wheel dresser yes
    Levelling screw and block yes
    Tool box and special wrench yes
    Halogen lamp yes
    Coolant system yes

    Optional Accessories

    OPTIONAL ACCESSORIES: Item NO.:
    Permanent magnetic chuck
    Dust collector
    Wheel balancing stand
    Cooling and dust collecting equipment
