Home> Products> Drilling Machines> Drill Press> WDP25 Drill Press

WDP25 Drill Press

WDP25 Drill Press
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WDP25

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications

    Model No. WDP25
    Item No. 10301250 10301250

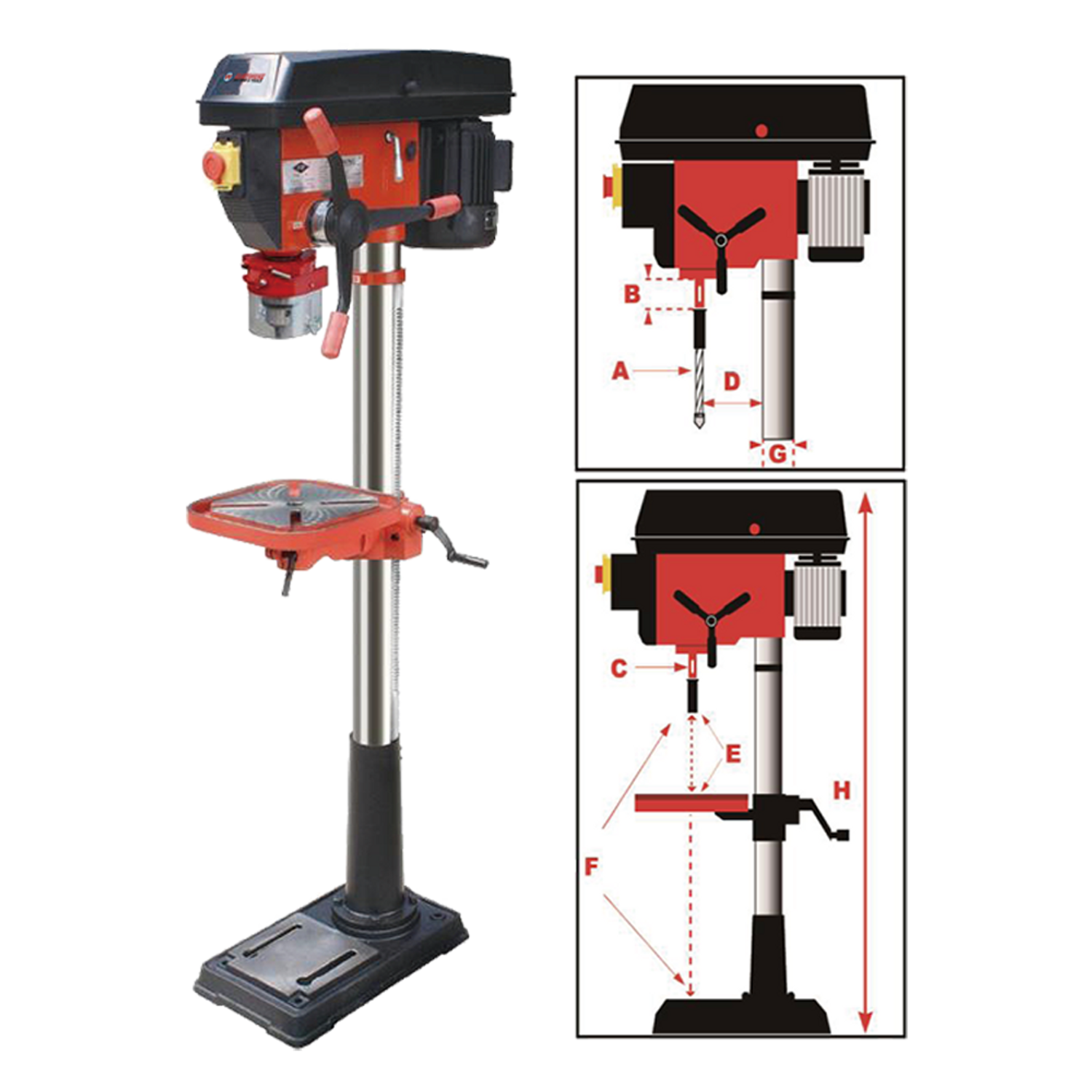

    Specifications： Metric(mm) Imperial (in)
    A Max Drilling Diameter Φ25mm(1")
      Motor Power (W) 750 w
      Chuck Capacity 5-20 mm
    B Spindle Travel 85 mm
      Class Of Speed 12
      Speed 50Hz 280-2830 RPM
      Speed 60Hz 340-2860 RPM
    C Spindle Taper MT3
    D Max. distance from spindle axis to surface of column 176 mm
    E Max. distance from spindle end to surface of table 685 mm
    F Max. distance from spindle end to surface of base 1175 mm
      Table Size 290x290 mm
      Base Size 460X270 mm
    G Column Diameter Φ80 mm
    H Height 1600 mm
      Net Weight/Gross Weight 71/75 Kg
      Packing Size 1140x490x275 mm
      20'/40' 192/384

    Features&Details

      Features:

    1. Cast iron working table, Cast iron base
    2. GS/CE/EMC/ROHS
    3. Micro-switch inside pulley cover box
    4. Front emergency switch
    5. Cast iron feeding handle
    6. Chuck Guard
    7. Cast iron belt Pulley
    8. Rack lifting system



    Optional Accessories

    Optional Accessories: Code No.
    4" Bench vice
    Cross laser light
