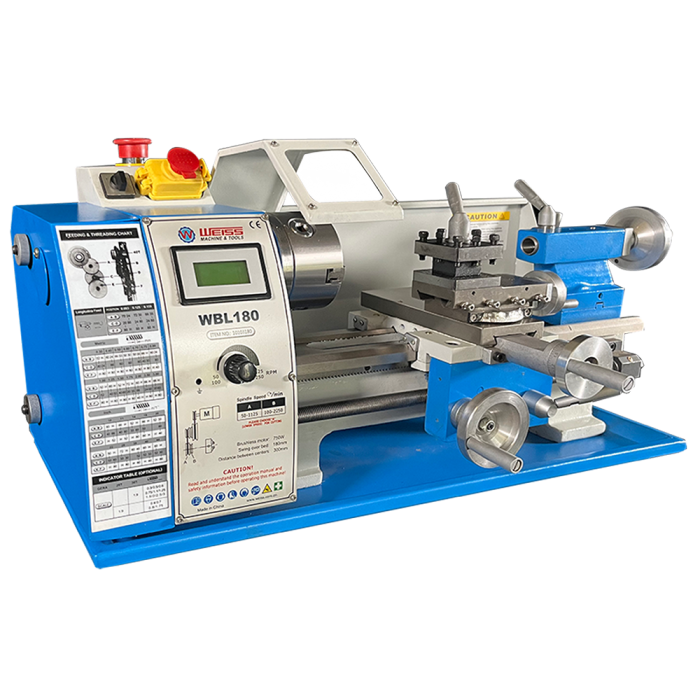

WBL180 VARIABLE SPEED LATHE

WBL180 VARIABLE SPEED LATHE
WBL180 VARIABLE SPEED LATHE
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WBL180 Mini Metal Lathe

    Item No: 10103180

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Features
    Perfect machine for hobby machinists, has the features and precision of larger lathes.

    Specifications

    Model No. WBL180
    Item No. 10103180
    Specifications： Metric(mm) Imperial (in)
    Distance between centers 300mm 11-13/16"
    Swing over bed 180mm 7-3/32"
    Swing over cross slide 110mm 4-21/64"
    Width of bed 100mm 3-15/16"
    Taper of spindle bore MT3 MT3
    Spindle bore 21mm 53/64"
    Range of spindle speeds 50-2250 RPM 50-2250 RPM
    Range of longitudinal feeds 0.083-0.159mm 0.0033"~0.0063
    Range of inch threads 10-44 TPI 10-44 TPI
    Range of metric threads 0.3-3mm 0.3-3mm
    Top slide travel 55mm 2-11/64"
    Cross slide travel 75mm 2-61/64"
    Tailstock quill travel 50mm 1-31/32"
    Taper of tailstock quill MT2 MT2
    Brushless Motor 0.75kw 0.75kw
    Machine Size 740x390x370mm 29-9/64"x15-23/64"x14-9/16"
    Packing size 800x480x460mm 31-1⁄2"x18-57/64"x18-7/64"
    Net weight 60Kg 132lb

    Features&Details


    FEATURES:

    1. Perfect machine for hobby machinists, has the features and precision of larger lathes.
    2. Powerful 750W brushelss motor
    3. Variable -speed spindle with high/low speed ranges
    4. V-ways bed is hardened and precision ground
    5. Spindle is supported by precision taper roller bearings
    6. Adjustable gibs for slideways
    7. Convenient quick-lock tailstock
    8. Tailstock can be offset for taper turning

    Standard Accessories

    STANDARD ACCESSORIES: INCLUDED
    3-Jaw chuck (100mm) yes
    High and low variable spindle speed ranges yes
    Digital display of speed range yes
    Chip tray yes
    Splash guard yes
    Switch-off chuck cover yes
    Toolbox & tools yes

    Optional Accessories

    OPTIONAL ACCESSORIES: Item NO.:
    Steady rest 30011001
    Follow rest 30011002
    Face plate 30011003
    4-Jaw chuck(100mm) 22014102
    Backplate for 4-Jaw chuck 30011005
    Leadscrew cover 30011015
    Tool post cover 30011020
    Threading dial(Metric/Inch) 30111025/30111026
    7 pcs 10mm turning tools 21020013
    9 pcs 12mm turning tools 21020019
    Euro type tool post set TOOA0 22121000
    ER25 Collet Fixture 22050101
    2-Axis Magnetic DRO (D50) 23072241

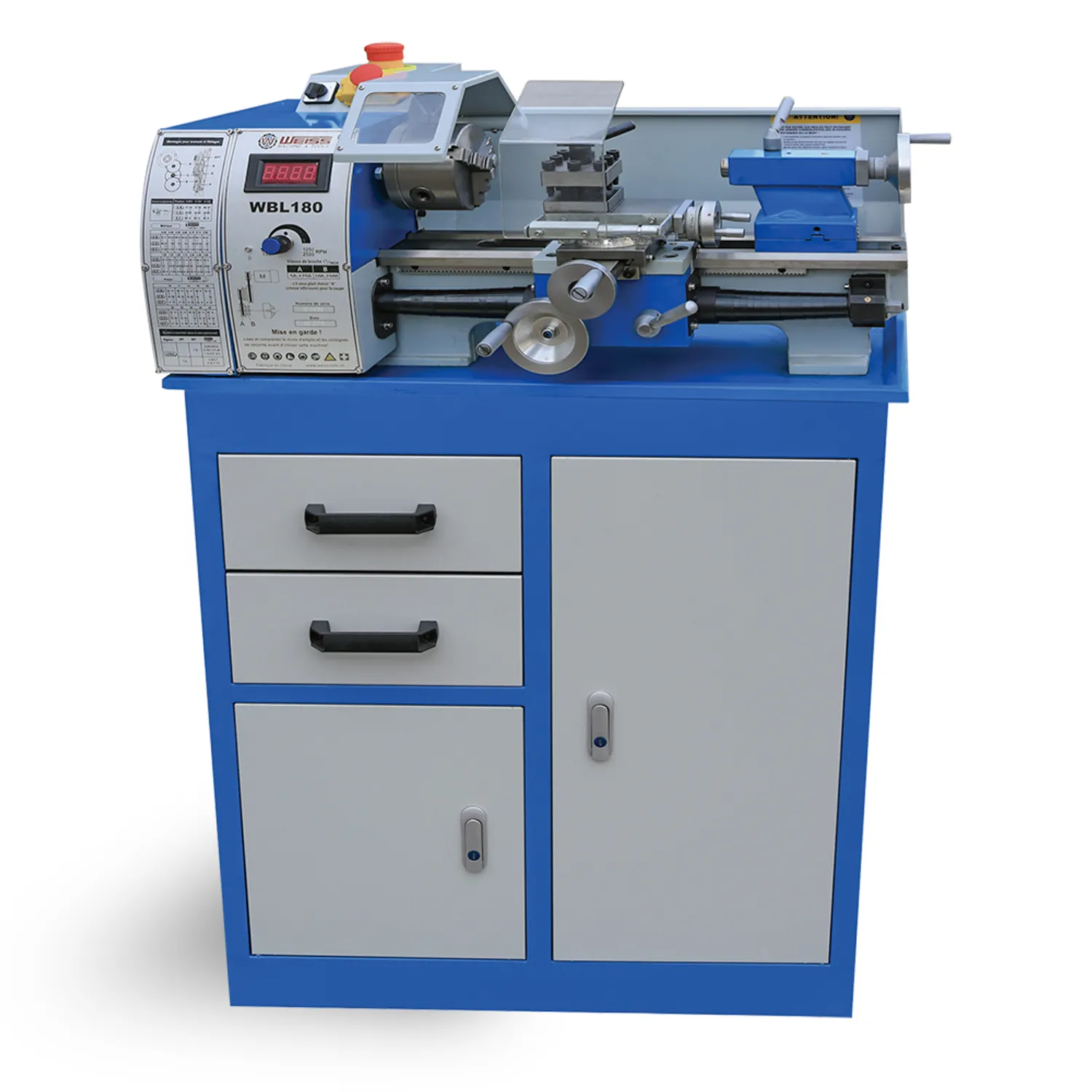

    Stand 30101030
    Luxury Stand 30101035
