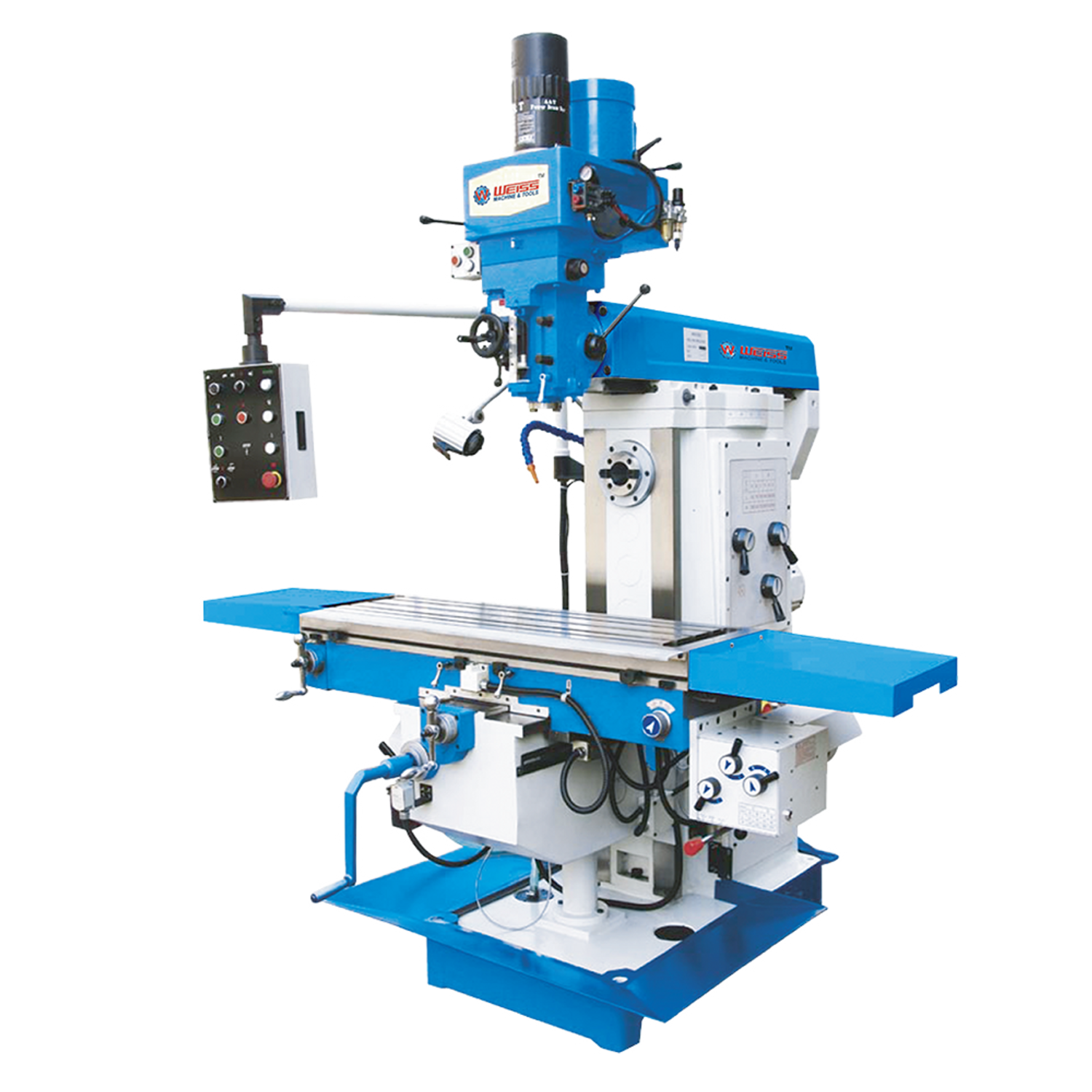

WM6336 Universal Milling Machine

WM6336 Universal Milling Machine
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WM6336 Universal Milling Machine

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications

    Model No. VM6336

    Item No.

    10207036

    Specifications

    Metric(mm)
    Table size 1320x360 mm
    Table travel (X,Y) 1000x300 mm
    Knee travel 450 mm
    Table power feed speed range (X) 15 - 370 mm/min
    Table power feed speed range (Y) 15 - 370 mm/min
    Knee rapid speed 575 mm/min
    T-slot 3x18 - 80mm
    Ram travel 400 mm
    Vertical Spindle:
    Distance spindle nose to table 200-650 mm
    Distance spindle axis to column 150-550 mm
    Spindle taper ISO40
    Spindle stroke 140 mm
    Step of spindle speeds 10
    Range of spindle speeds 70-3520 rpm
    Automatic spindle feed 0.045/0.086/0.142 mm/rev.
    Spindle motor 3.75 kw
    Head swivel (L&R) ±45°
    Horizontal Spindle:
    Spindle taper ISO50
    Step of spindle speeds 12
    Range of spindle speeds 58~1800 rpm
    Spindle motor 3.75 kw
    Distance spindle center to table 0 ~ 450 mm
    Distance spindle cneter to ram 235mm
    Packing size 2070x2020x2330 mm
    Net weight 2200 kg

    Features&Details


    • Versatile application.

    • Heavy, solid design made of high-quality Meehanite cast iron.

    • Vertical and horizontal milling position.

    • Robust machine construction.

    • Milling head can be swiveled and rotated at any spatial angle.

    • Smooth running due to polished gear wheels running in oil bath.All guides are hardened and adjustable by means of wedges.

    • Central lubrication.Large sized decoupled handwheels with scal

      LED machine lamp.Coolant system.Easy operation of the switching elements.

    • Sturdy, rectangular guideways in the Y and Z axes.

    • Height-adjustable protective screen with micro-switch, against flying chips and parts, for maximum protection of the user.

    • Massive and large-dimensioned XY stage, precisely surface-finished with T-slots.

    • Feed motor with fixed steps.Table feed X and Y axis.Z-axis with electric table height adjustment.
