| Selling Units: | Bag/Bags |
|---|
Transportation: Others

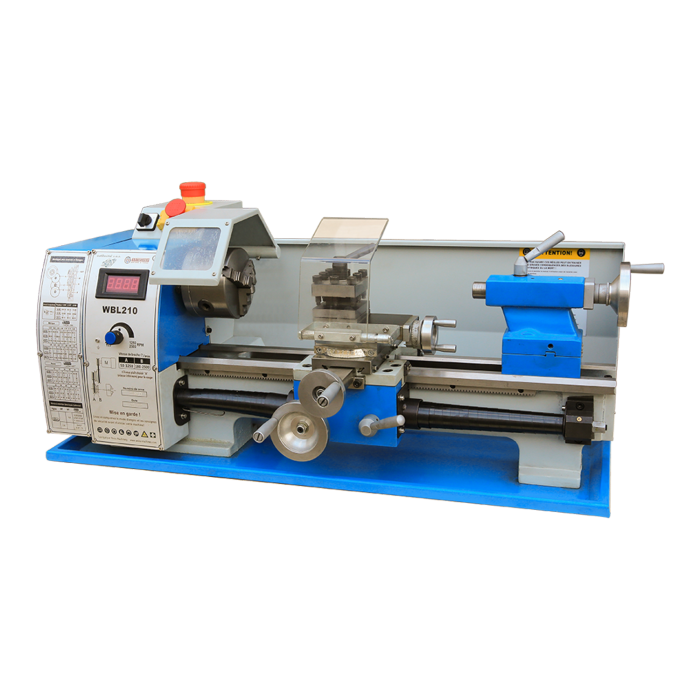

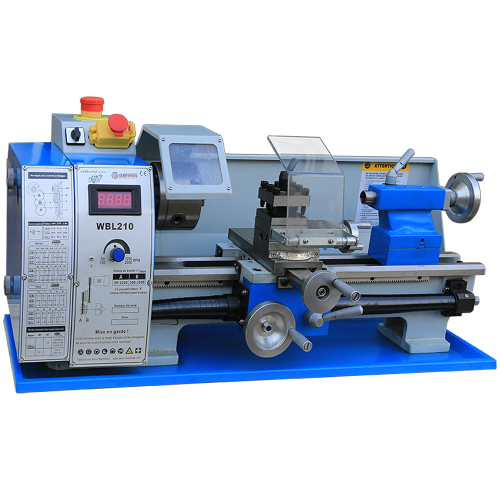

| Model No. | WBL210 | |
| Item No. | 10103210 | |
| Specifications： | Metric(mm) | Imperial (in) |
| Distance between centers | 400mm | 15-3/4" |
| Swing over bed | 210mm | 8-17/64" |
| Swing over cross slide | 130mm | 5-1/8" |
| Width of bed | 100mm | 3-15/16" |
| Taper of spindle bore | MT3 | MT3 |
| Spindle bore | 21mm | 53/64" |
| Range of spindle speeds | 50-2250 RPM | 50-2250 RPM |
| Range of longitudinal feeds | 0.083-0.198mm | 0.0033"~0.0078 |
| Range of inch threads | 10-44 TPI | 10-44 TPI |
| Range of metric threads | 0.3-3mm | 0.3-3mm |
| Top slide travel | 55mm | 2-11/64" |
| Cross slide travel | 75mm | 2-61/64" |
| Tailstock quill travel | 50mm | 1-31/32" |
| Taper of tailstock quill | MT2 | MT2 |
| Brushless Motor | 0.75kw | 0.75 kw |

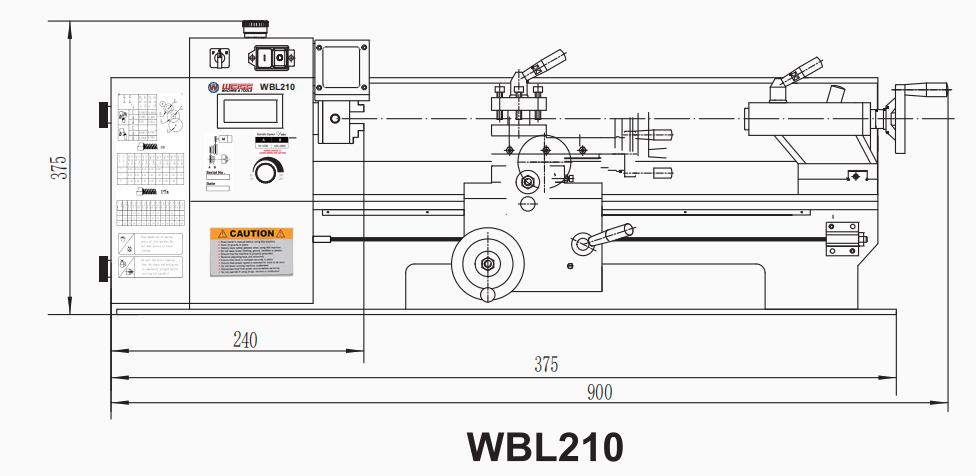

| Machine Size | 820x400x370mm | 32-9/32"x15-3/4"x14-9/16" |
| Packing size | 930x480x460mm | 36-39/64"x18-57/64"x18-7/64" |
| Net weight | 75Kg | 165lb |
| STANDARD ACCESSORIES: | INCLUDED |
| 3-Jaw chuck (100mm) | yes |
| High and low variable spindle speed ranges | yes |
| Digital display of speed range | yes |
| Chip tray | yes |
| Splash guard | yes |
| Switch-off chuck cover | yes |
| Toolbox & tools | yes |
| OPTIONAL ACCESSORIES: | Item NO.: |
| Steady rest | 30101001/30102001 |
| Follow rest | 30101002/30102002 |
| Face plate | 30011003 |
| 4-Jaw chuck(100mm) | 22014102 |
| Backplate for 4-Jaw chuck | 30011005 |
| Leadscrew cover | 30011015 |
| Tool post cover | 30011020 |
| Threading dial(Metric/Inch) | 30111025/30111026 |
| 7 pcs 10mm turning tools | 21020013 |
| 9 pcs 12mm turning tools | 21020019 |
| Euro type tool post set TOOA0 | 22121000 |
| ER25 Collet Fixture | 22050101 |
| 2-Axis Magnetic DRO (D50) | 23072241 |

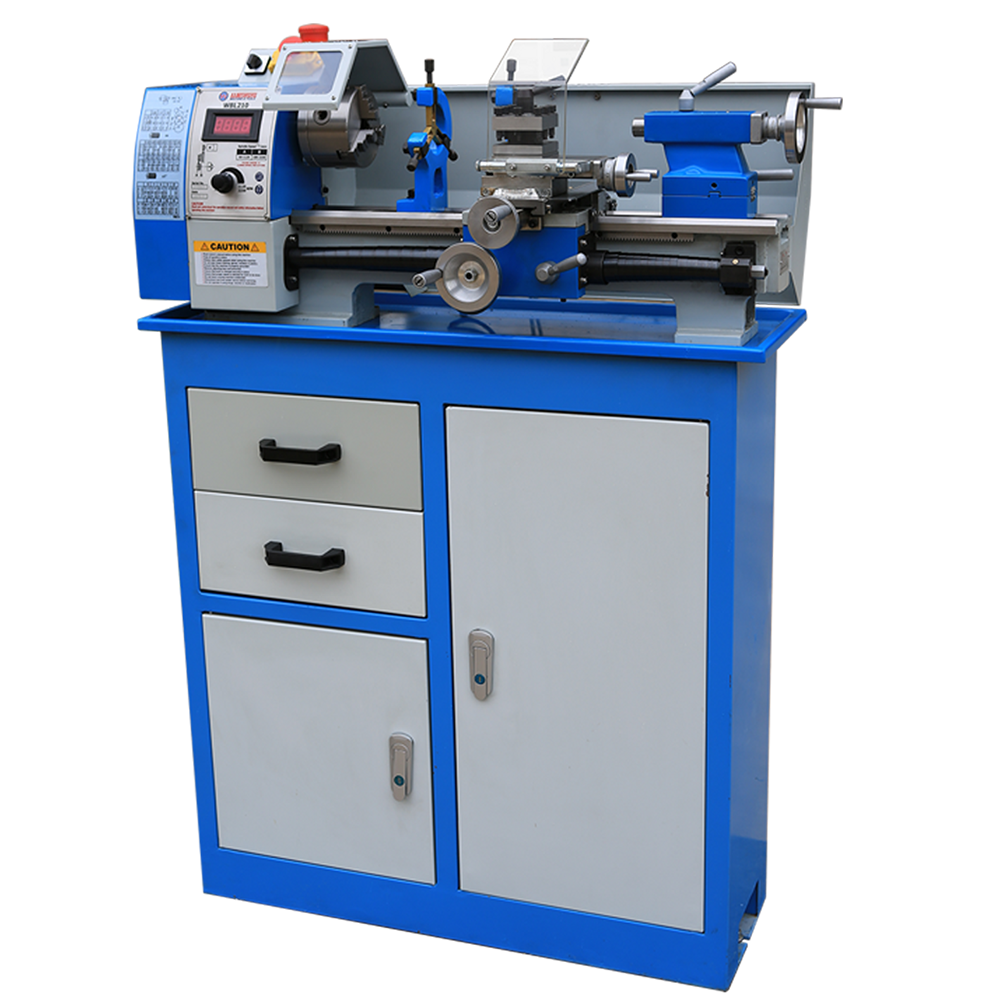

| Stand | 30101030 |
| Luxury Stand | 30101035 |
