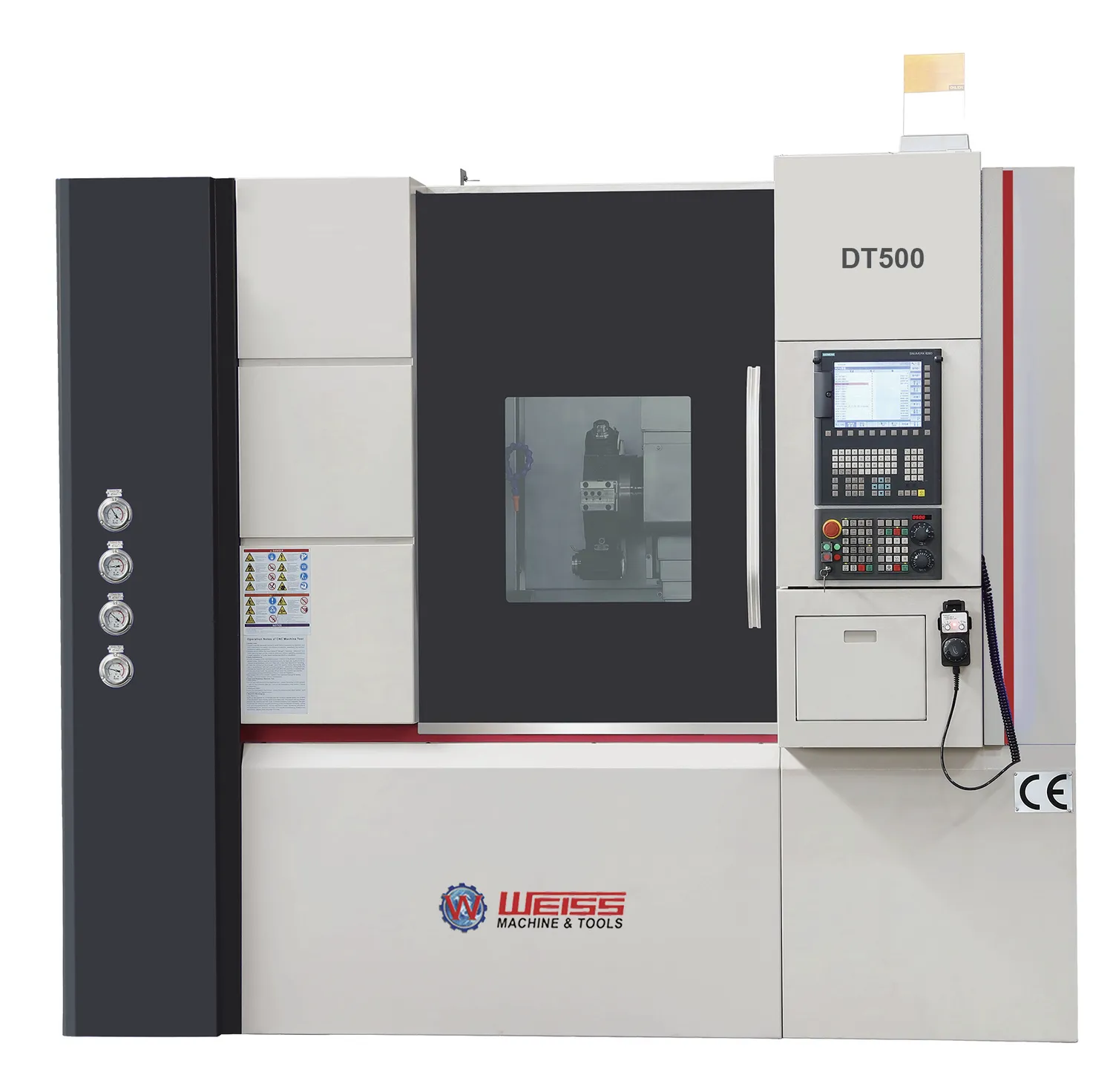

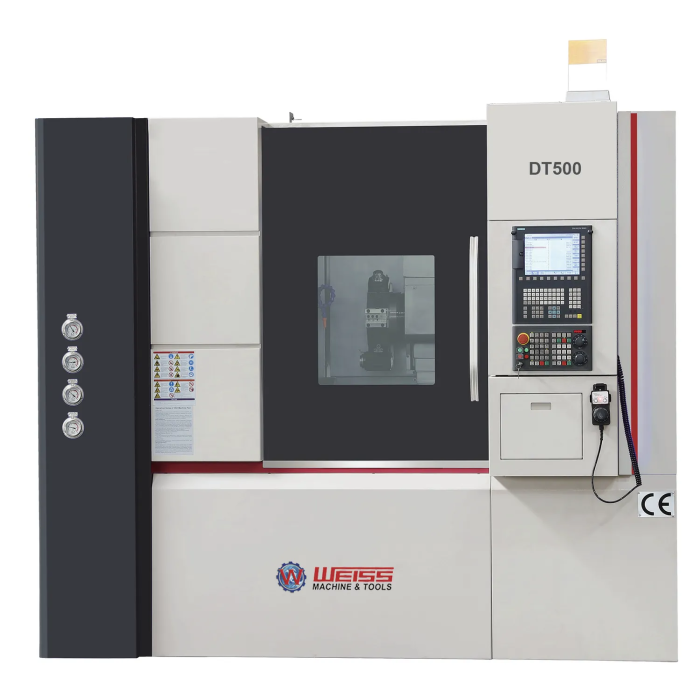

DT500 CNC SLANT BED LINEAR GUIDE WAY TURNING CENTER (DRIVEN TURRET WITHOUT Y AXIS)

DT500 CNC SLANT BED LINEAR GUIDE WAY TURNING CENTER (DRIVEN TURRET WITHOUT Y AXIS)
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: CNC Turning Centers

    Item No: 10123305

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Features

    Supper rigid small spindle type tailstock.




    Specifications

    CONTENT METRIC INFO.
    ITEM NO.
    10123305
    Specification
    Max. swing dia. over bed Φ550mm
    Max. swing dia. over slide Φ250mm
    Max. work piece length 400mm
    Max. turning dia. Φ250mm
    Max. bar capacity Φ52mm
    Spindle nose A2-6
    Spindle bore Φ66mm
    Spindle speed 4000rpm
    Spindle shift mode Variable
    Spindle motor power 22/30kw
    Chuck type Hydraulic
    Chuck size 8''
    X axis rapid traverse 20m/min
    Y axis rapid traverse 20m/min
    Z axis rapid traverse 20m/min
    X axis travel 160mm
    Y axis travel 100(±50)mm
    Z axis travel 400mm
    Guide way type LM
    Turret type Driven turret
    Number of tools stations 12
    Max. speed of driving tool 4000rpm
    Tool shank size BMT45
    Tailstock type Hydraulic
    Tailstock travel 400mm
    Tailstock quill taper MT4
    Net weight 5800kg
    Machine dimension(LxWxH) 2450x1850x2200mm
    Machine dimension(LxWxH) 2600/2700/3300/3750x2000x2000(mm)

    Features&Details

    Features
    • 4 axis simutaniously interpolation turning center X+Z+Y+C
    • Wide span base and bed module design provides foundation of reliability.
    • Large torque driect driven spindle.
    • Supper rigid small spindle type tailstock.
    • X/Y/Z axis all use heavy duty cylindrical roller linear motion guideway
