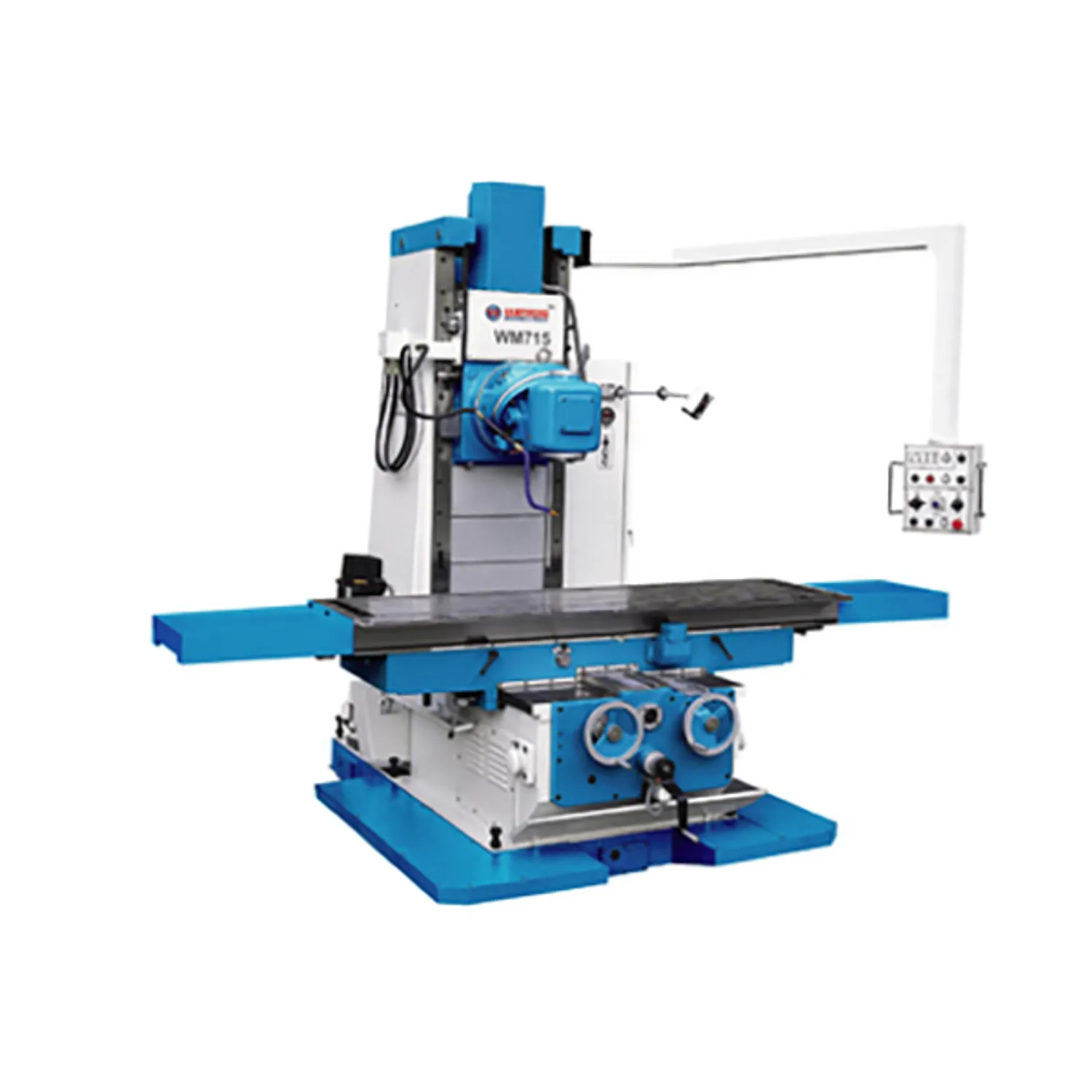

Model No.: WM715 Bed-type Milling Machine
Item No: 10209150
Product Categories: Milling Machines: Bed Milling Machines
Selling Units: | Bag/Bags |
---|
Transportation: Others
Model No. | VM715 |
Item No. | 10209150 |
Specifications | |
Table size | 2100 x 500 mm |
Table travel (X,Y) | 1500 x 670 mm |
Vertical travel of headstock | 0~670 mm |
T-slot (Number x Width - Distance) | 4x18 - 100 mm |
Max. loading of table | 2000 kg |
X, Y axis feed speed | 20~1800 mm/min. |
X, Y axis rapid speed | 3500 mm/min. |
Spindle taper | ISO50 |
Spindle speed steps | 12 |
Spindle speed range | 35 ~ 1345 rpm |
Distance from spindle axis to vertical guideway | 605 mm |
Spindle motor | 7.5 kw |
Overall dimension | 3300 x 2380 x 2750 mm |
Net weight | 7300 kg |
FEATURES:
Swivel head when horizontal milling.
Advanced design.Large load.Wide machining range.
