WDP16E Drill Press

WDP16E Drill Press
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WDP16E

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications

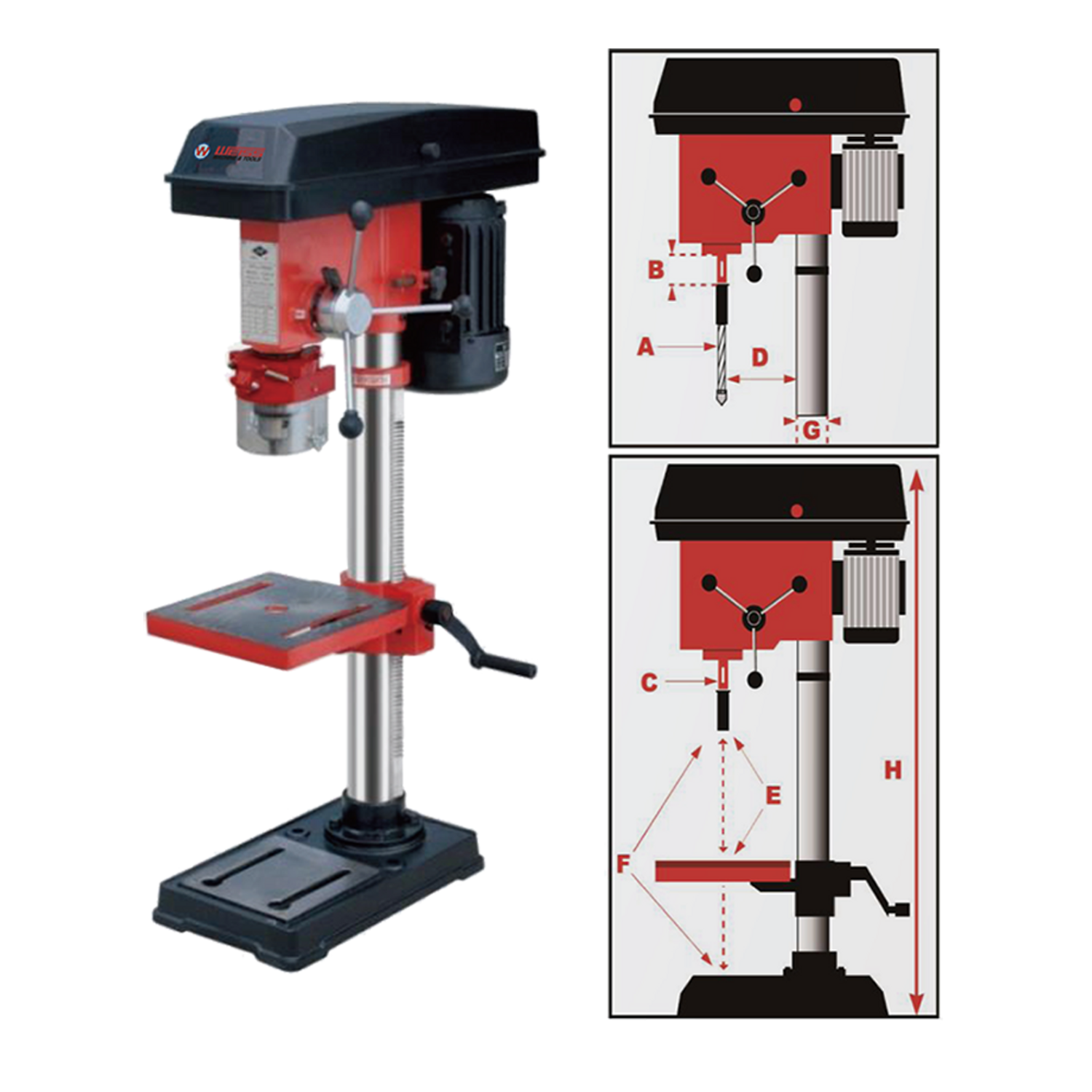

    Model No. WDP16E
    Item No. 10301162 10301162
    Specifications： Metric(mm) Imperial (in)
    A Max Drilling Diameter Φ16mm(5/8")
      Motor Power (W) 375 w
      Chuck Capacity 3-16 mm
    B Spindle Travel 60 mm
      Class Of Speed 5
      Speed 50Hz 620-2620 RPM
      Speed 60Hz 740-3140 RPM
    C Spindle Taper B16
    D Max. distance from spindle axis to surface of column 130 mm
    E Max. distance from spindle end to surface of table 400 mm
    F Max. distance from spindle end to surface of base 515 mm
      Table Size 200X200 mm
      Base Size 340X210 mm
    G Column Diameter Φ58 mm
    H Height 840 mm
      Net Weight/Gross Weight 28/30 Kg
      Packing Size 665x415x260 mm
      20'/40' 410/960


    Features&Details


    1. Cast iron working table, Cast iron base

    2. GS/CE/EMC/ROHS
    3. Micro-switch inside pulley cover box
    4. Side electromagnetic switch
    5. Chuck Guard
    6. Cast aluminum Belt Pulley
    7. Rack lifting system

    Optional Accessories

    Optional Accessories: Code No.
    4" Bench vice
    Front emergency switch
    Cross laser light
