Product Description

Specifications

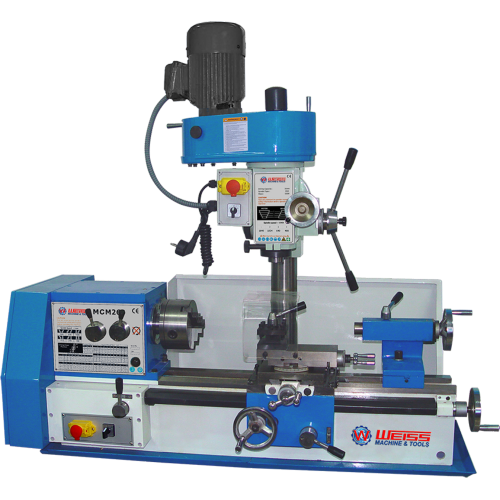

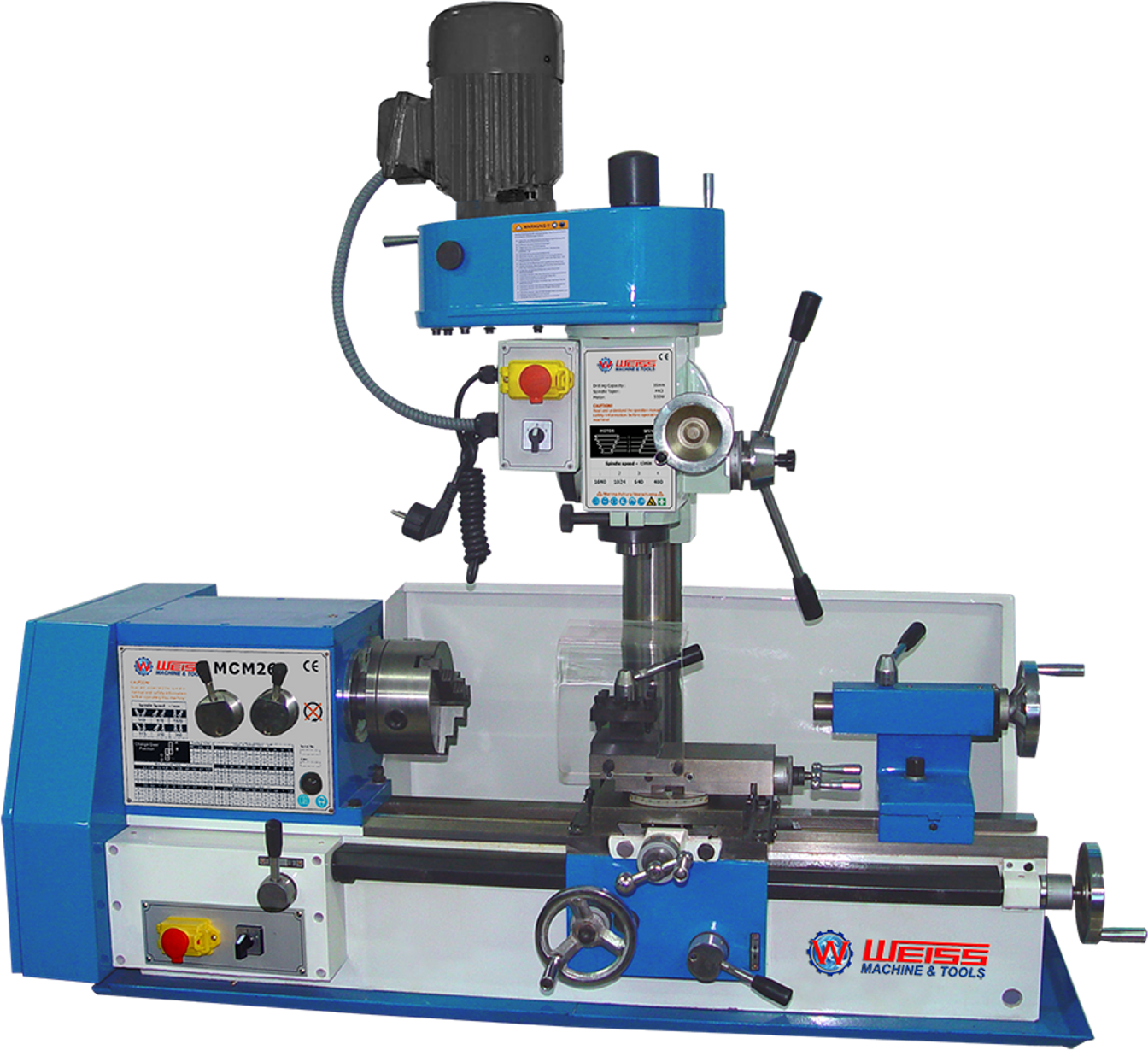

Model No.	WLM300
ITEM NO.	10110115/10110116
Specifications：	Metric(mm)	Imperial (in)
Lathe
Distance between centers	450/700 mm
Swing over bed	250 mm
Taper of spindle bore	MT4
Spindle bore	27 mm
Range of spindle speeds	115-1620 rpm
Range of inch threads	8-56 T.P.I
Range of metric threads	0.2-3.5 mm
Travel of cross slide	140 mm
Taper of tailstock quill	MT3
Motor	750W
Mill & Drill
Taper of spindle bore	MT3
Spindle stroke	80 mm
Step of spindle speeds	4
Range of spindle speeds	400-1600 rpm
Head stroke	240 mm
Head tilt	±90°
Motor	550W
Packing size	1510x670x920 mm
Net weight	245 kg

Features&Details

FEATURES:

1. V-way bed is precisioon ground.
2. Spindle is supported by precision tapered bearing.
3. Lathe headstock is constantly oiled during operating.
4. Belt drived mill head get quiet operation.
5. Mill head can be tilted ±90°.
6. Power longitudinal feed allows threading.
7. Adjustable gids for slidways.
8. Equipped with leadscrew cover and work table.
9. Change gears has large feed and threading functions.
10. Tailstock can be offset for turning tapers
11. Tolerance test certificate,test flow chart included.
