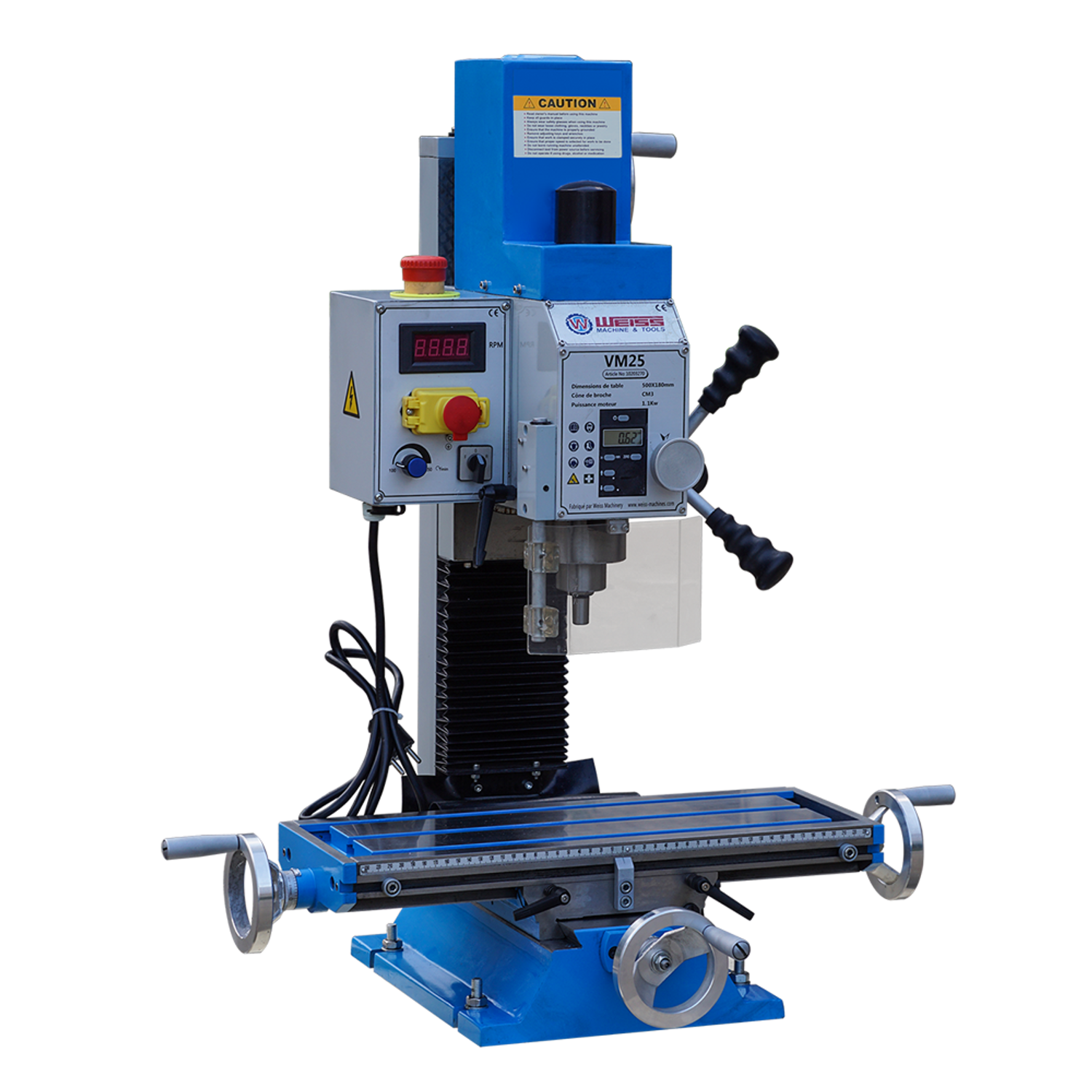

VM25 VM25L Variable Speed Milling Machine

VM25 VM25L Variable Speed Milling Machine
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: VM25 VM25L Variable Speed Milling Machine

    Style: 10203270 10203275

    Size: 500v180mm 700x180mm

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications
    Model No. VM25(L)

    Item No.

    10203270/10203275

    Specifications

    		 Metric(mm)
    Max. drilling capacity 25mm
    Max. end milling capacity 16mm
    Max. face milling capacity 63mm
    Table size 500x180mm 700x180mm
    T-slot 3x12mm
    Spindle stroke 50mm
    Step of spindle speeds Variable
    Range of spindle speeds 100-2250rpm
    Spindle incline angle ±90°
    Table travel (X,Y) 285X140mm 480X140mm
    Max.vertical Travel 270mm
    Distance from spindle nose to column 160mm
    Distance from spindle nose to table 320mm
    Motor 1.1kw
    Machine Size 750/950x580x940mm
    Packing size 560x600x900/760x710x950mm
    Net weight 100/118kg
    Shipping Weight 120/125kg

    Features&Details

    FEATURES:

    1. Variable speed enables to operate easily.
    2. Spindle is supported by high precision taper roller bearing.
    3. Single speed belt drive provide more quiet and easy operation.
    4. Mill head can be tilled +90°.
    5. Precision manual fine down feed.
    6. Easy reading scale has satin chrome finish.
    7. Bigger table provides more capacity.
    8. Dovetail column,base & worktable with adjustable taper gibs.

    Standard Accessories

    STANDARD ACCESSORIES
    Drill chuck 3-16/B16
    Drawbar
    Arbor MT3/B16-M10
    Digital depth ruler
    Spindle Cover With Micro Switch
    Toolbox & tools

    Optional Accessories

    Opitional Accessories
    Tapping Function
    Keyless Drill Chucks 3-16mm
    ER25 Collet Chucks MT3-Er25/12pcs
    Vice Bms100
    HHS 19 Pcs Drill Sets
    End Mill Sets 20PCS 3-20mm
    3-Axis DRO(Magnetic Scales)
    58pcs clamping kits M12
    Oil Tray
    Stand
    Luxury Stand
