Product Detail Description
Product Attributes

Model No.WPB/WPBH Series

Item No11232062/11232063/11232082/~/11232607/11232706/11232806

Style63t/2500 700t/6000 63t/3200 800t/6000 80t/2500 600t/7000

Packaging & Delivery
Selling Units: Bag/Bags
Supply Ability & Additional Information

TransportationOthers

Product Description
Specifications

Model WAD // WADE // WADH Technical parameters
Specifications

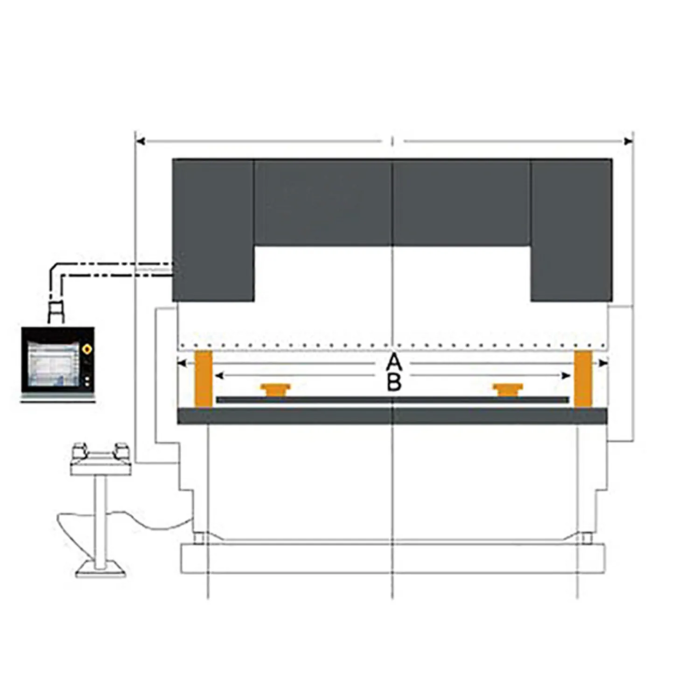

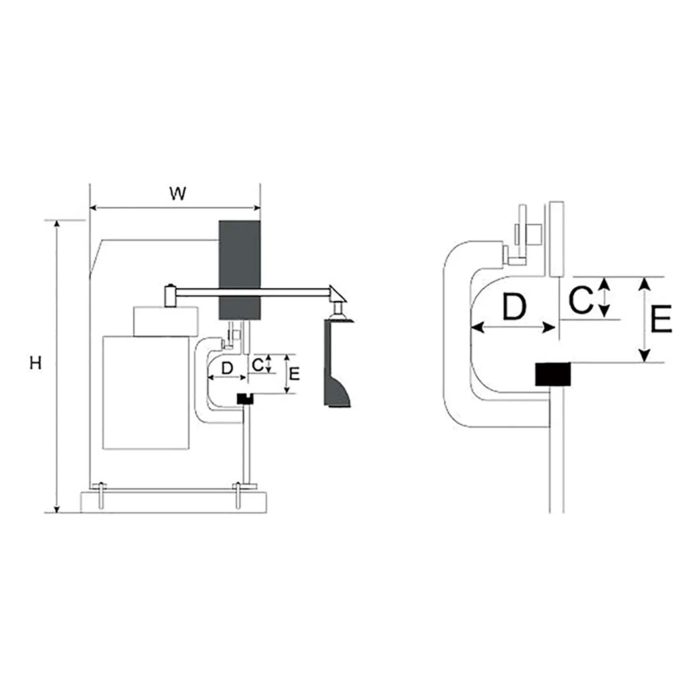

      A B D C E
Model Item No. Nominal
Pressure
(kN)
Length of
Table(mm)
Distance between
columns (mm)
Throat Depth
(mm)
Stroke
(mm)
Open Height
(mm)
Main Motor
(kW)
Overall dimensions
LxWxH
63t/2500 11232062 630 2500 2050 300 150 460 5.5 2800X1600X2300
63t/3200 11232063 630 3200 2700 300 150 460 5.5 3400X1700X2300
80t/2500 11232082 800 2500 2050 300 150 460 5.5 2800X1600X2400
80t/3200 11232083 800 3200 2700 300 150 460 5.5 3400X1700X2300
100t/3200 11232103 1000 3200 2700 350 200 480 7.5 3400X1800X2600
100t/4000 11232104 1000 4000 3100 350 200 480 7.5 4200X1800X2600
125t/3200 11232123 1250 3200 2700 350 200 480 11 3500X1700X2600
125t/4000 11232124 1250 4000 3100 350 200 480 11 4300X1700X2700
160t/3200 11232163 1600 3200 2700 400 200 480 15 3500X2000X3100
160t/4000 11232164 1600 4000 3100 400 200 480 15 4300X20000X2800
220t/3200 11232223 2200 3200 2600 400 200 480 18.5 3400X2200X2850
220t/4000 11232224 2200 4000 3100 400 200 480 18.5 4300X2600X3050
250t/3200 11232253 2500 3200 2600 400 250 520 22 3500X2000X2900
250t/4000 11232254 2500 4000 3100 400 250 520 22 4300X20000X3800
250t/5000 11232255 2500 5000 3800 400 250 580 22 5300X2450X4000
250t/6000 11232256 2500 6000 4600 400 250 580 22 6300X2500X4200
300t/4000 11232304 3000 4000 3200 400 250 580 22 4300X2300X3450
300t/5000 11232305 3000 5000 4000 400 250 580 22 5300X2500X4300
300t/6000 11232306 3000 6000 4600 400 250 580 22 6300X2500X4800
400t/4000 11232404 4000 4000 3200 400 250 580 30 4200X2700X4200
400t/5000 11232405 4000 5000 4000 400 250 580 30 5300X2700X4200
400t/6000 11232406 4000 6000 4600 400 250 580 30 6300X2700X4300
500t/4000 11232504 5000 4000 3200 400 250 600 37 4300X2700X4200
500t/5000 11232505 5000 5000 4000 400 250 600 37 5300X2700X4300
500t/6000 11232506 5000 6000 5050 400 300 600 37 6300X2500X3700
600t/5000 11232605 6000 5000 3800 500 320 640 45 5300X3300X4500
600t/6000 11232606 6000 6000 5050 500 320 640 45 6300X3300X5300
600t/7000 11232607 6000 7000 5300 500 320 640 45 7300X3300X5800
700t/6000 11232706 7000 6000 4900 500 320 700 55 6300X3500X5500
800t/6000 11232806 8000 6000 4600 500 320 800 55 6300X3500X6000

Features&Details

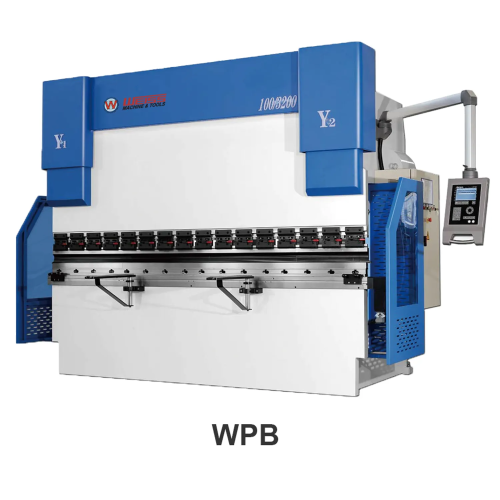

WPB Series electro-hydraulic synchronous CNC bending machine (Double linkage)
  • CNC sheetmetal press brake with streamlined design,high speed,high precision,high rigidity;
  • Electro hydraulic servo system,full loop controlling the synchronization of the upper slider;

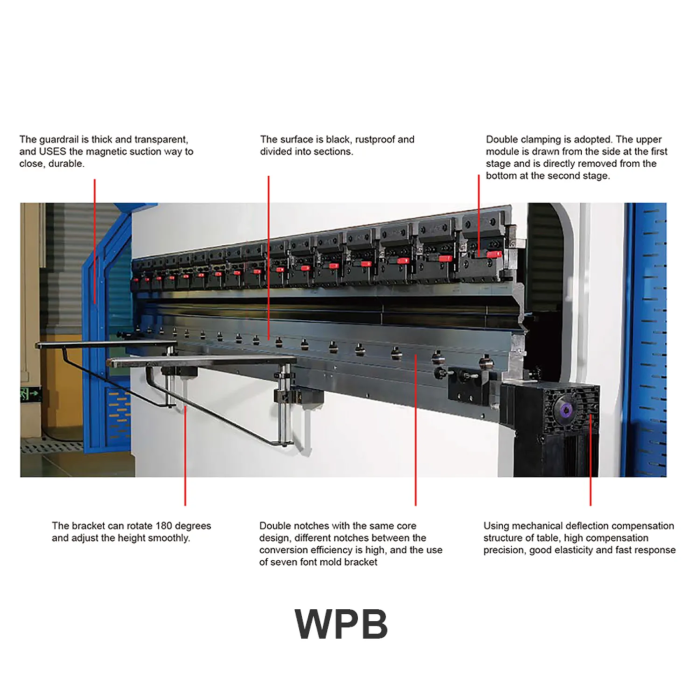

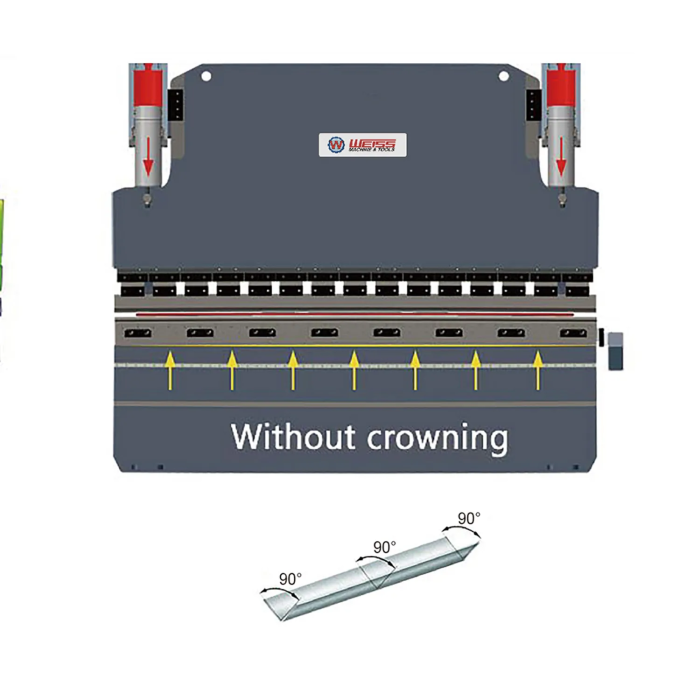

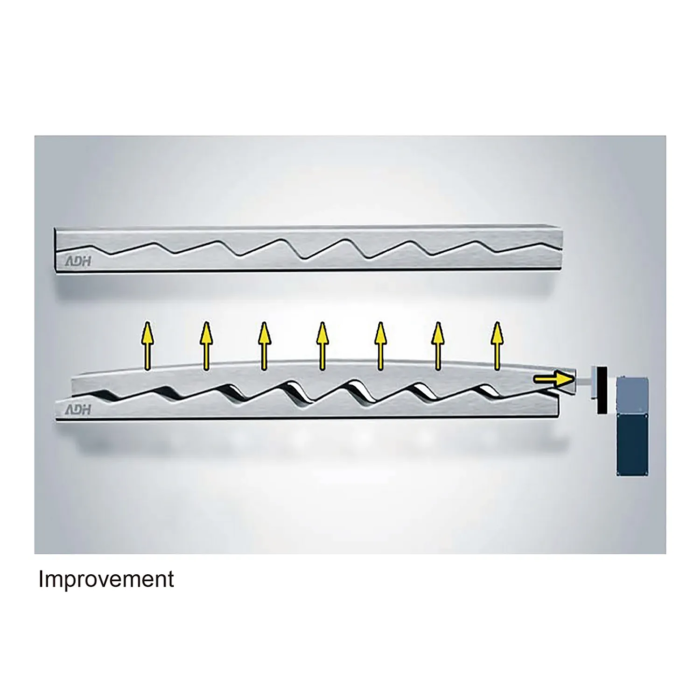

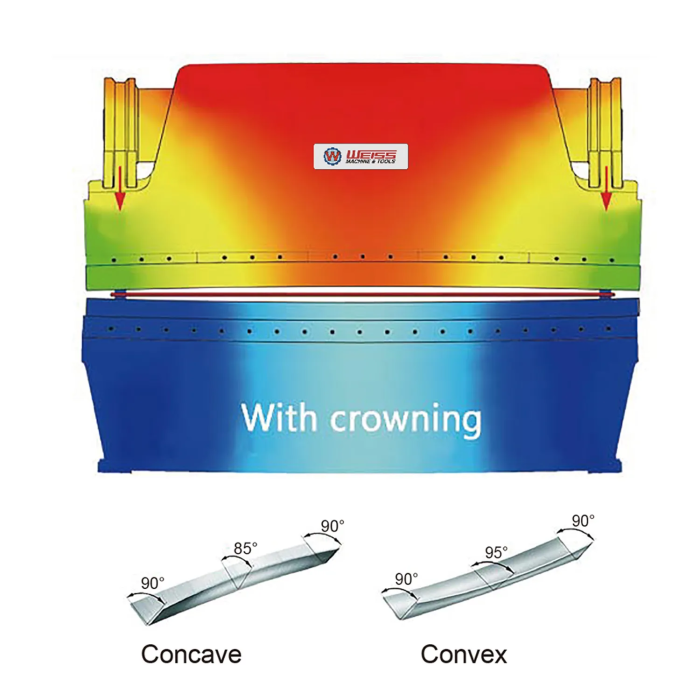

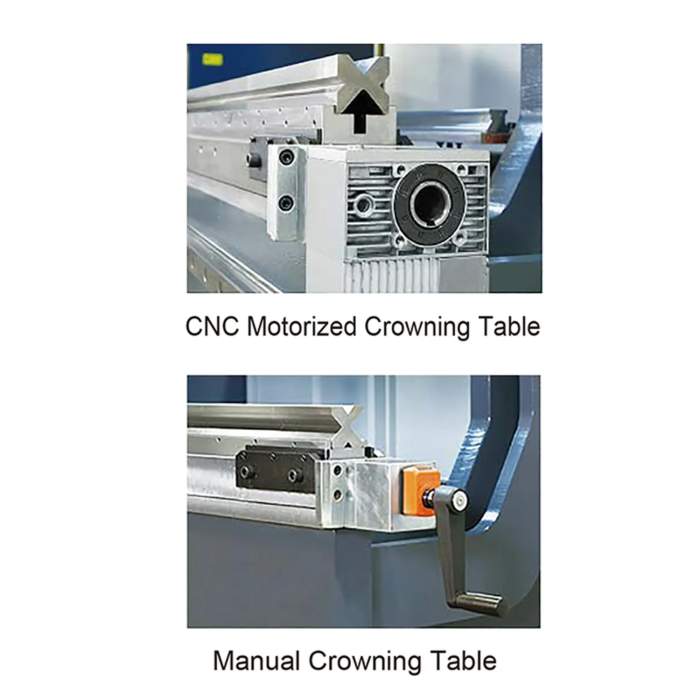

  • Mechanical compensation on crowning of worktable and deformation compensation on throat ensuring good bending strength and precision;
  • Backgauge is driven by digital AC servo motor, moved with ball screw, guided by linear guide.
