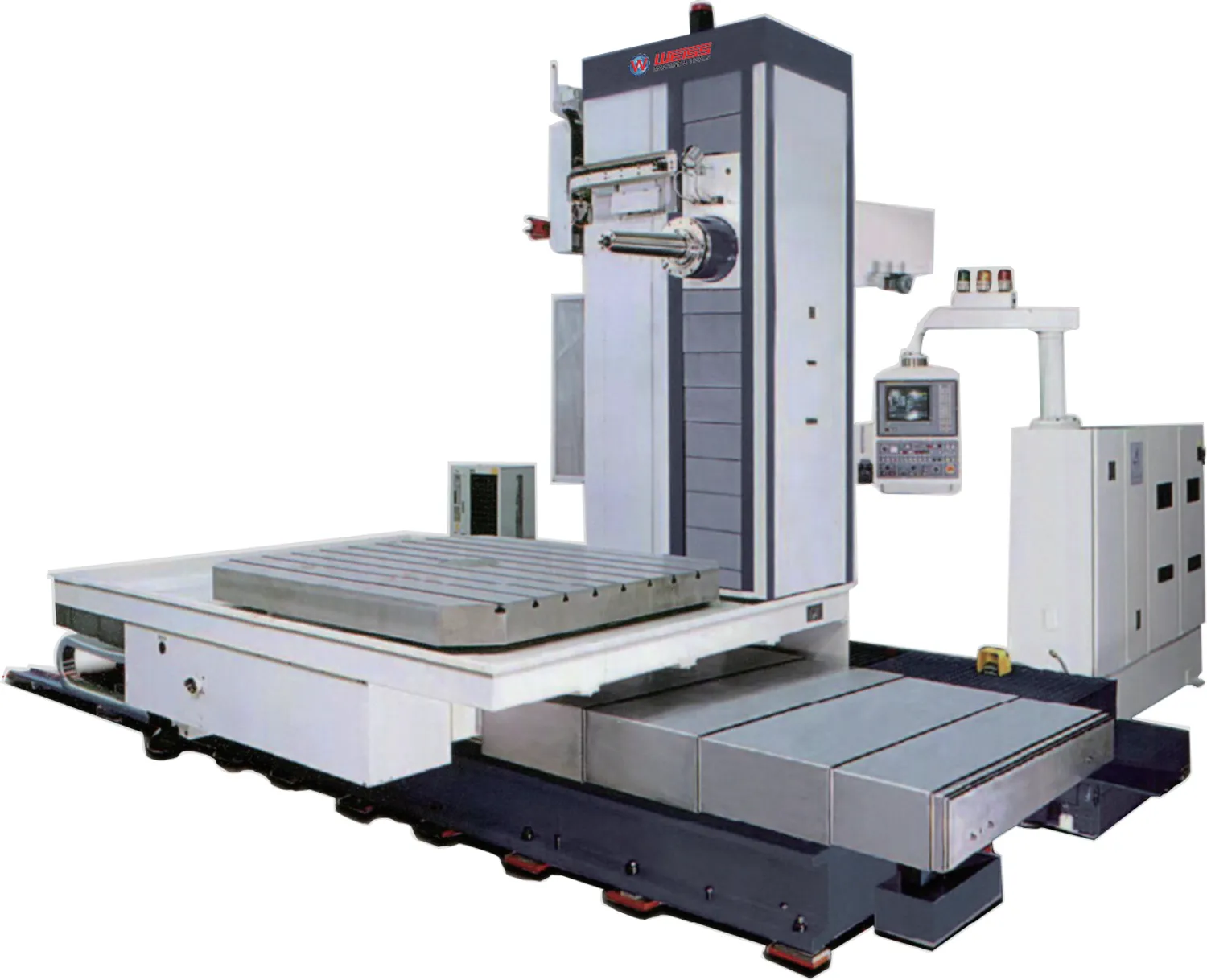

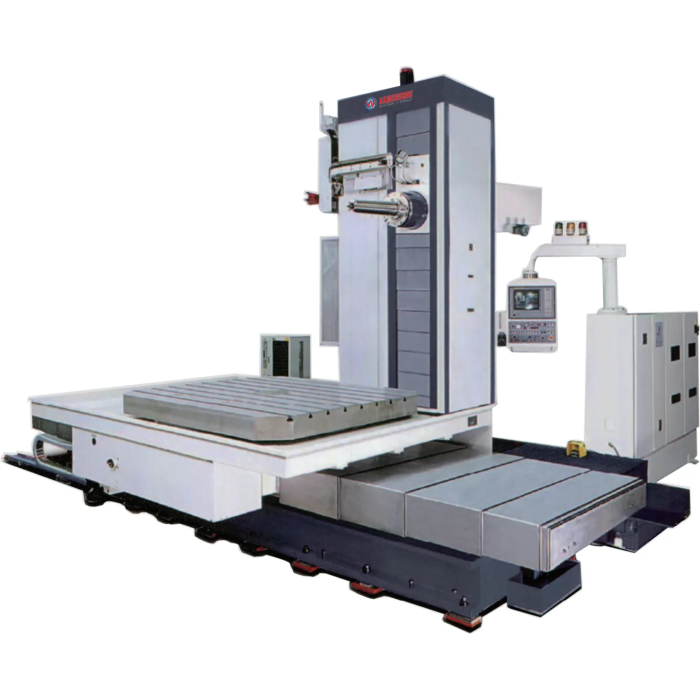

HB130 CNC Horizontal Boring Machine Centers

HB130 CNC Horizontal Boring Machine Centers
  • Min. Order: 1 Bag/Bags
  • Transportation: Others
Share:
MOB:19962018358 Contact Us >
Product Detail Description
Product Attributes

Model No.CNC Horizontal Boring Machine Centers

Packaging & Delivery
Selling Units: Bag/Bags
Supply Ability & Additional Information

TransportationOthers

Product Description
Features
1、The boring bar can extend to a length of 500/800/1000, with deep hole processing capability and can achieve true circle machining to the micrometer level.
2、The disc achieves excellent accuracy through professional scraping technology.

Specifications



CONTENT METRIC INFO.
Item No.
10610130
Specification
Table size 1600x1800mm
Max. load 10000kg
Max. swing dia. Φ4200mm
Min. table index 0.001°
X/Y/Z/W axis travel 3000/2000/1600mm
Spindle center to table 80-880mm
Spindle nose to center line of table 100-2300mm
X/Y/Z feed speed 5m/min
X/Y/Z axis rapid traverse 8/8/38m/min
Boring shaft dia. 130mm
Spindle speed 20-1500r/min
Spindle taper BT50
Spindle motor power 27kw
Tool magazine Chain type
Tool capacity 24T
Tool weight 25kg
Tool length 400mm
Tool diameter Φ120/Φ250mm
Positioning(X/Y/Z) ±0.030mm
Repeatability(X/Y/Z) ±0.015mm
Positioning(B) ±30s
Repeatability(B) ±15s
Net weight --
Machine dimension(LxWxH) 8200x8200x4900mm


Features&Details

Features
  • The spindle is made of chromium molybdenum alloy steel, with a hardness of up to HRC60-62, ensuring optimal rigidity and accuracy. The boring bar can extend to a length of 500/800/1000, with deep hole processing capability and can achieve true circle machining to the micrometer level.
  • The workbench (B-axis) adopts circular oil pressure clamping, and its accuracy is extremely stable during heavy cutting. The rotation adopts servo control and automatic rotation positioning, which is suitable for various processing needs. The disc achieves excellent accuracy through professional scraping technology.
  • The panel design is aesthetically pleasing and in line with ergonomic grade operating habits. It can rotate left and right, and can manually control the screen and RS232 network transmission.
  • All three axes are equipped with imported optical rulers to improve positioning accuracy and facilitate the processing of ultra precision parts.
  • All castings are made of FC300 cast iron and stress is simulated using finite element analysis software.
