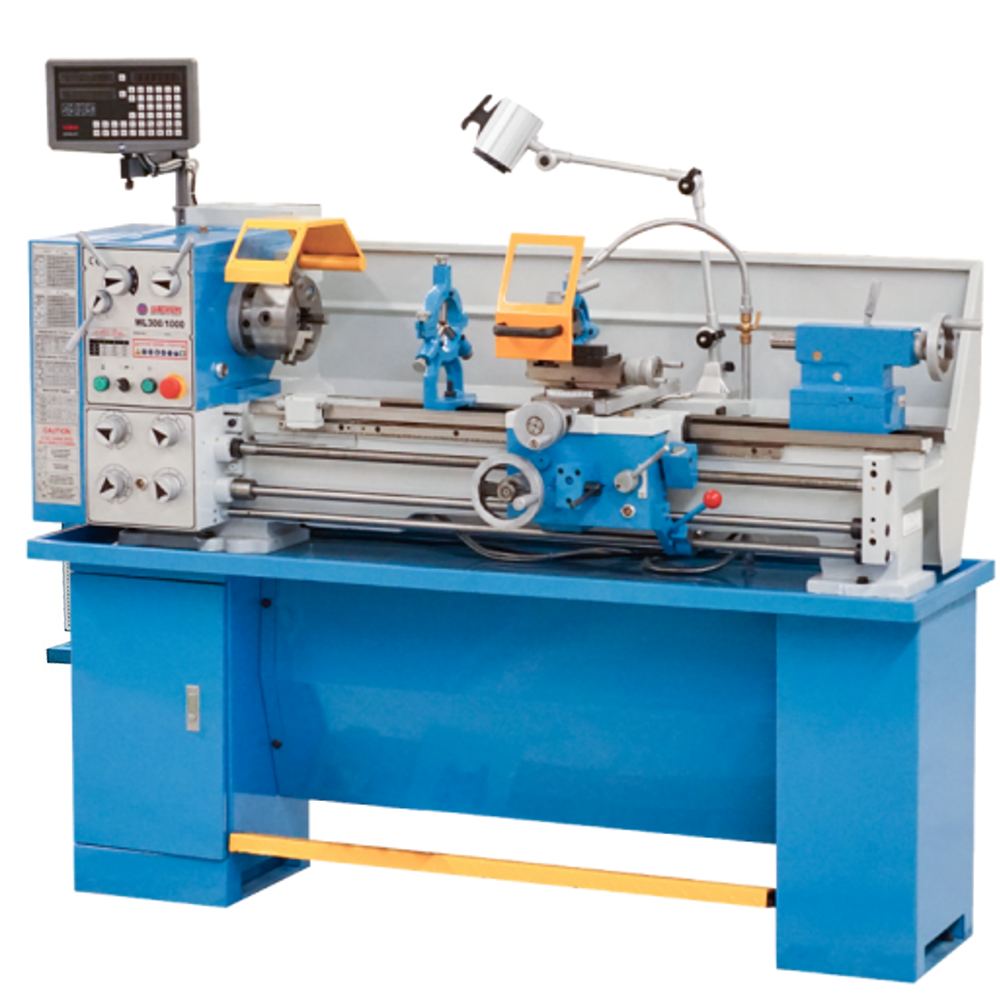

Product Description

Features

1. Induction hardened, precision ground V-way bed.
2. D1-4 spindle is supported by high quality tapered roller bearing.
3. Hardened, precision ground gears in headstock.
4. Gearbox has large feed and threading functions.
5. Independent leadscrew and feed rod.
6. Carriage mounted spindle control lever.
7. Adjustable gibs for slideways.
8. Automatic feed and threading are fully interlocked.
9. Tailstock can be offset for turning tapers.

Specifications

CONTENT	METRIC INFO.	INCHES INFO.	METRIC INFO.	INCHES INFO.
ITEM NO.	10106301		10106302
Distance between centers	914mm	35-63/64"	1000mm	39-3/8"
Swing over bed	300mm	11-13/16"	300mm	11-13/16"
Swing over gap	430mm	16-59/64"	430mm	16-59/64"
Swing over cross slide	180mm	7-3/32"	180mm	7-3/32"
Width of bed	180mm	7-3/32"	180mm	7-3/32"
Taper of spindle bore	MT5	MT5	MT5	MT5
Spindle bore	38mm	1-1/2"	38mm	1-1/2"
Number of spindle speeds	9	9	9	9
Range of spindle speeds	75-1400 rpm	75-1400 rpm	75-1400 rpm	75-1400 rpm
Range of cross feeds	0.017-0.276mm/r	0.0007"-0.0109"/r	0.017-0.276mm/r	0.0007"-0.0109"/r
Range of longitudinal feeds	0.079-1.291 mm/r	0.0031"-0.0508"/r	0.079-1.291 mm/r	0.0031"-0.0508"/r
Range of inch threads	4-60 T.P.I	4-60 T.P.I	4-60 T.P.I	4-60 T.P.I
Range of metric threads	0.4-7mm	0.4-7mm	0.4-7mm	0.4-7mm
Top slide travel	76mm	2-63/64"	76mm	2-63/64"
Cross slide travel	175mm	6-57/64"	175mm	6-57/64"
Tailstock quill travel	90mm	3-35/64"	90mm	3-35/64"
Taper of tailstock quill	MT3	MT3	MT3	MT3
Motor	1.1KW	1.1KW	1.1KW	1.1KW
Packing size	1680x750x1450mm	66-9/64"x29-17/32"x57-3/32"	1940x750x1450mm	76-3/8"x29-17/32"x57-3/32"
Net weight	540	1190lb	620 kg	1366lb

Features&Details

FEATURES:

1. Induction hardened, precision ground V-way bed.
2. D1-4 spindle is supported by high quality tapered roller bearing.
3. Hardened, precision ground gears in headstock.
4. Gearbox has large feed and threading functions.
5. Independent leadscrew and feed rod.
6. Carriage mounted spindle control lever.
7. Adjustable gibs for slideways.
8. Automatic feed and threading are fully interlocked.
9. Tailstock can be offset for turning tapers.

Standard Accessories

STANDARD ACCESSORIES:	INCLUDED
3-Jaw Chuck(160mm)	yes
4-jaw chuck(200mm)	yes
Splash Guard	yes
Follow Rest	yes
Steady Rest	yes
Face Plate (250mm)	yes
Chip Tray	yes
Stand & chip Tray	yes
Toolbox & Tools	yes

Optional Accessories

OPTIONAL ACCESSORIES:	Item NO.:
Coolant system	-
Foot brake	-
Halogen work lamp	-
Leadscrew cover	-
Tool post cover	-
Micro carriage stop	-
Taper turning attachment	-
Quick change tool post	-
Digital readout system	-
