Product Description

Features

1. Big spindle bore 38mm.
2. Powerful 750W brushelss motor.
3. Variable -speed spindle with high/low speed ranges.
4. V-ways bed is hardened and precision ground.
5. Spindle is supported by precision taper roller bearings.
6. Adjustable gibs for slideways.
7. Convenient quick-lock tailstock.
8. Tailstock can be offset for taper turning.

Specifications

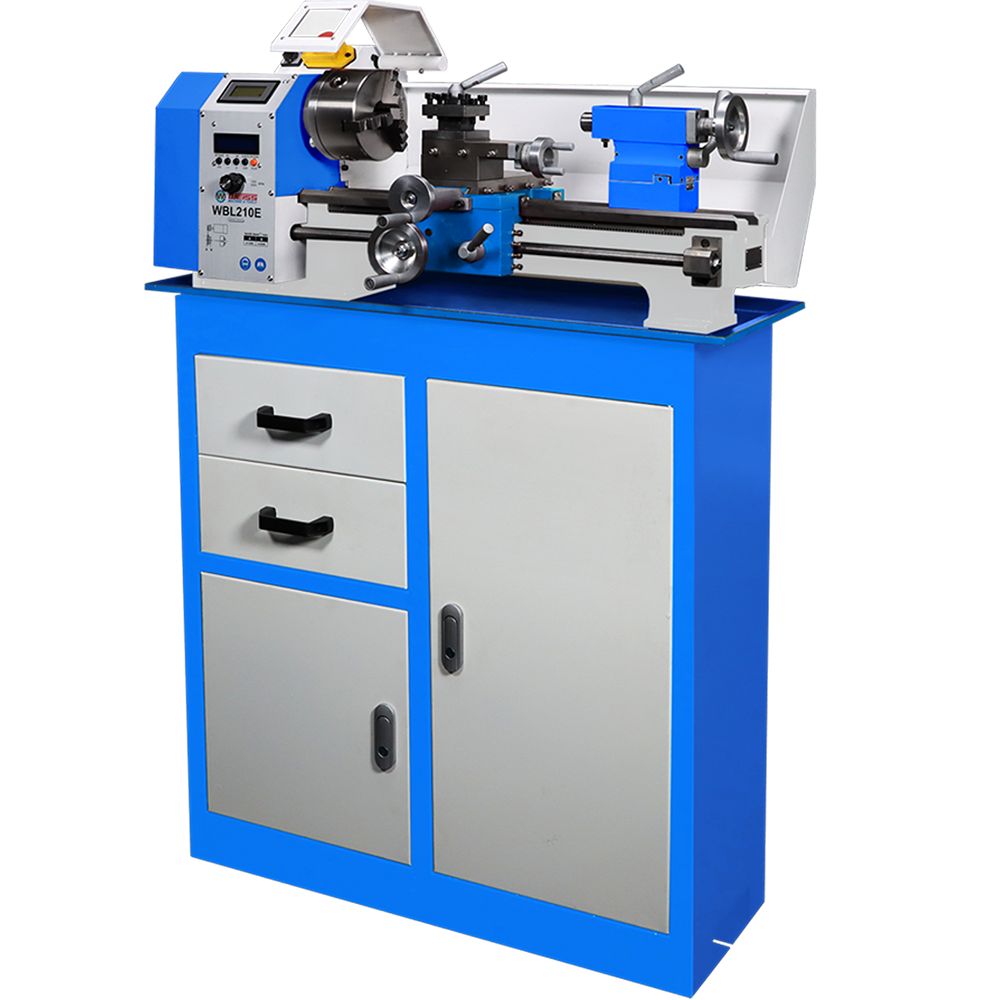

Model No.	WBL210E
Item No.	10103721
Specifications：	Metric(mm)	Imperial (in)
Distance between centers	400mm	15-3/4"
Swing over bed	210mm	8-17/64"
Swing over cross slide	130mm	5-1/8"
Width of bed	100mm	3-15/16"
Taper of spindle bore	MT5	MT5
Spindle bore	38mm	1-1/2"
Range of spindle speeds	50-2250 RPM	50-2250 RPM
Range of longitudinal feeds	0.1-0.4mm	0.0039"~0.0157"
Range of inch threads	6-96 T.P.I	6-96 T.P.I
Range of metric threads	0.10-5.0mm	0.10-5.0mm
Top slide travel	55mm	2-11/64"
Cross slide travel	65mm	2-9/16"
Tailstock quill travel	50mm	1-31/32"
Taper of tailstock quill	MT2	MT2
Brushless Motor	1.1 KW	1.1 KW
Machine Size	820x385x410mm	32-9/32"x15-5/32"x16-9/64"
Packing size	930x460x500mm	36-39/64"x18-7/64"x19-11/16"
Net weight	70 Kg	154lb

Features&Details

FEATURES:

1. Big spindle bore 38mm.
2. Powerful 1100W brushelss motor.
3. Variable -speed spindle with high/low speed ranges.
4. V-ways bed is hardened and precision ground.
5. Spindle is supported by precision taper roller bearings.
6. Adjustable gibs for slideways.
7. Convenient quick-lock tailstock.
8. Tailstock can be offset for taper turning.
9. WBL210E uses an electronic change gear system, eliminating the trouble of replacing the change gears.
10. WBL210E can achieve one -click settings of the threading pitch and processing length and automatically cut the thread.
11. WBL210E has reverse feed for cutting left-hand threads.

Standard Accessories

STANDARD ACCESSORIES:	INCLUDED
3-Jaw chuck (100mm)	yes
3-Jaw chuck (125mm)	yes
High and low variable spindle speed ranges	yes
Digital display of speed range	yes
Chip tray	yes
Splash guard	yes
Switch-off chuck cover	yes
Toolbox & tools	yes

Optional Accessories

OPTIONAL ACCESSORIES:	Item NO.:
Steady rest	30102001
Follow rest	30102002
Face plate	30102003
4-Jaw chuck(125mm)	22014103
Backplate for 4-Jaw chuck	30102005
Leadscrew cover	30102015
Tool post cover	30101020
Threading dial(Metric/Inch)	30101025/30101026
7 pcs 10mm turning tools	21020013
9 pcs 12mm turning tools	21020019
Euro type tool post set TOOA0	22121000
ER25 Collet Fixture	22050101
2-Axis Magnetic DRO (D50)	23072242
Stand	30101030
Luxury Stand	30101035
