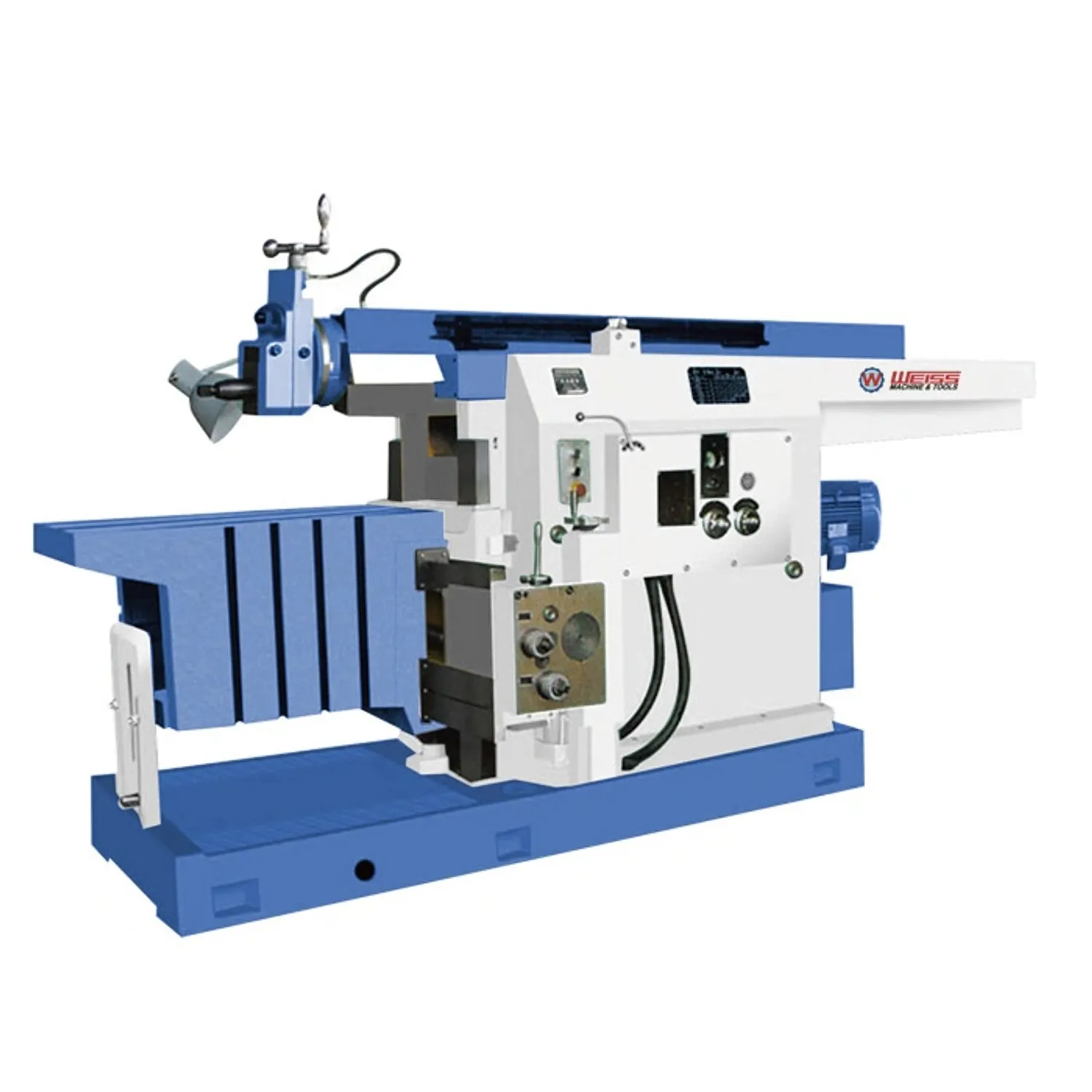

WPM100C The Planing Machine

WPM100C The Planing Machine
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WPM100C The Planing Machine

    Item No: 107601001

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Features

    1、 flexible and reliable starting and stopping,
    2、good rigidity of the machine tool,
    3、large cutting force, small thermal deformation,
    4、stable precision and suitability for strong planing.

    Specifications

    Model No. WPM100C

    Item No.

    107601001

    Specifications

    Maximum planing length

    1000mm

    Cutting speed of ram(stepless)

    3-44mm/min

    Distance from lower edge of ram to upper surface of table

    80-400mm

    Max.cutting force

    28000N

    Max.travel of toolhead

    160mm

    Maximum size of tool shank(WxT)(mm)

    30x45mm

    Upper working surface of table(LxW)

    1000x500mm

    Width of centtral T-slot of table(mm)

    22mm

    Max.horizontal travel of table

    800mm

    Horizontal feed of table per recip rocating stroke of ram(stepless)

    0.25-5mm

    Main motor

    7.5kw

    Motor for rapid motion of table

    0.75kw

    Overall dimensions(LxWxH)

    3615x1574x1760mm

    N.W/G.W

    4200/4350kg

    Features&Details


    • Both the main cutting motion and the feed motion are gear transmission, with stable rotation, small over-travel, flexible and reliable starting and stopping, good rigidity of the machine tool, large cutting force, small thermal deformation, stable precision and suitability for strong planing.

    • The tool holder has an automatic tool lifting mechanism, the machine tool handles are centralized, and the operation is convenient.
