WDP16A Drill Press

WDP16A Drill Press

Get Latest Price
    Share:

    Model No.WDP16A

    CustomizationBasic configuration Customization for appearance, material, size, etc., please contact us

    Description
    Product Description
    Specifications

    Model No. WDP16A
    Item No. 10301164 10301164

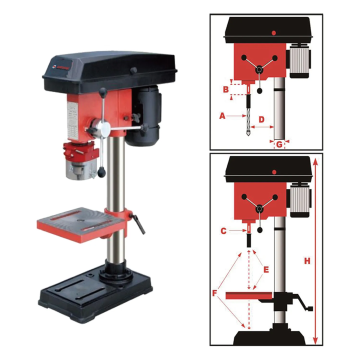

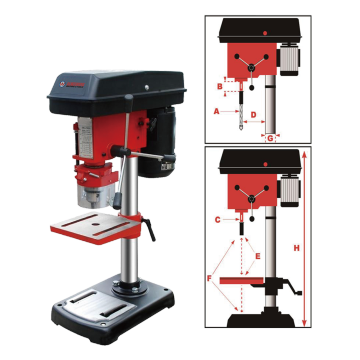

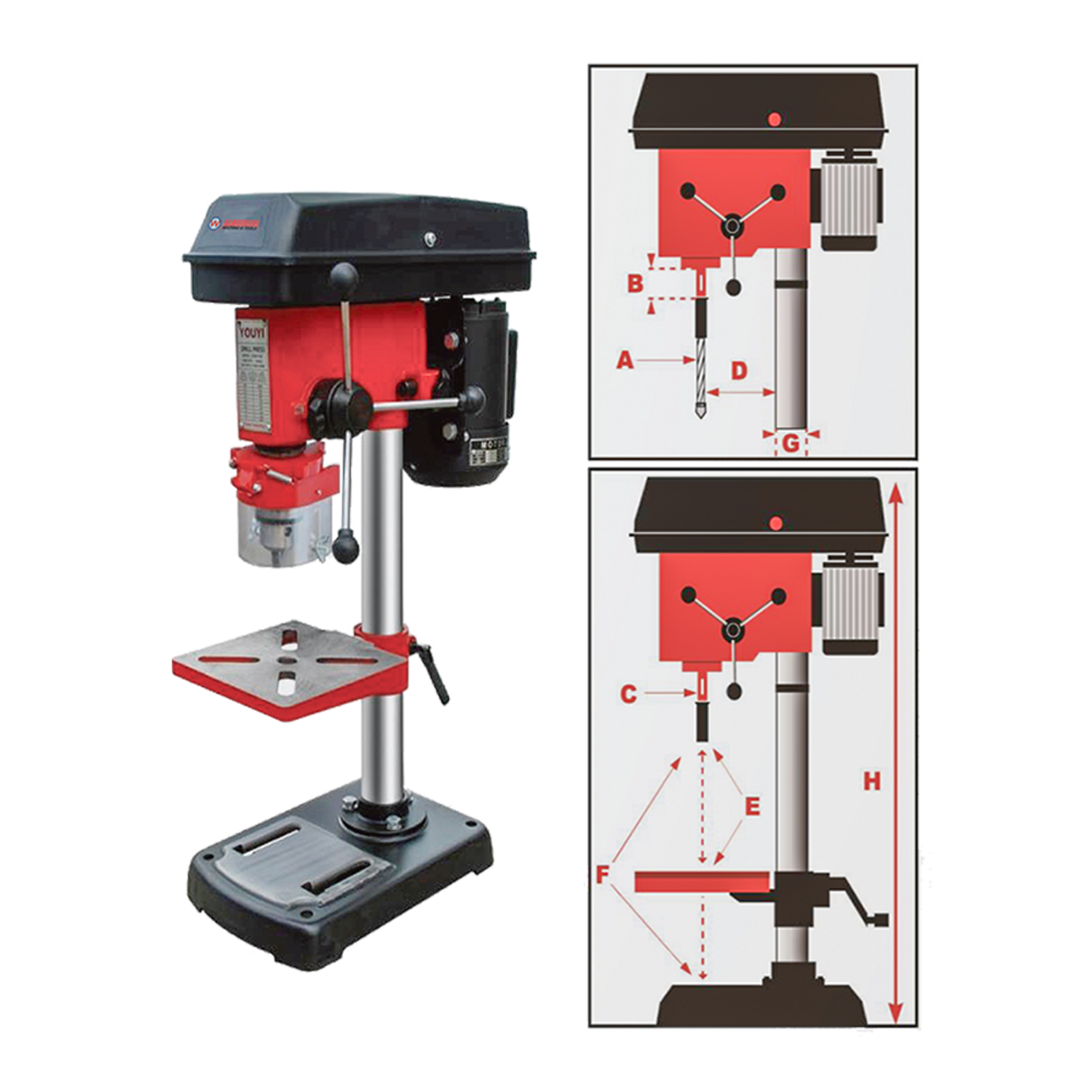

    Specifications: Metric(mm) Imperial (in)
    A Max Drilling Diameter Φ16mm (5/8")
      Motor Power (W) 500 W
      Chuck Capacity 3-16 mm
    B Spindle Travel 50 mm
      Class Of Speed 9
      Speed 50Hz 400-2500 RPM
      Speed 60Hz 480-3000 RPM
    C Spindle Taper B16
    D Max. distance from spindle axis to surface of column 116 mm
    E Max. distance from spindle end to surface of table 245 mm
    F Max. distance from spindle end to surface of base 330 mm
      Table Size 170X175 mm
      Base Size 320X195 mm
    G Column Diameter Φ46 mm
    H Height 610 mm
      Net Weight/Gross Weight 21/22 kg
      Packing Size 465x355x225 mm
      20'/40' 800/1600

    Features&Details


    1. Cast iron working table, Cast iron base

    2. GS/CE/EMC/ROHS
    3. Micro-switch inside pulley cover box
    4. Side electromagnetic switch
    5. Chuck Guard
    6. Cast aluminum Belt Pulley


    Optional Accessories

    Optional Accessories: Code No.
    4" Bench vice
