| Selling Units: | Bag/Bags |
|---|
Transportation: Others

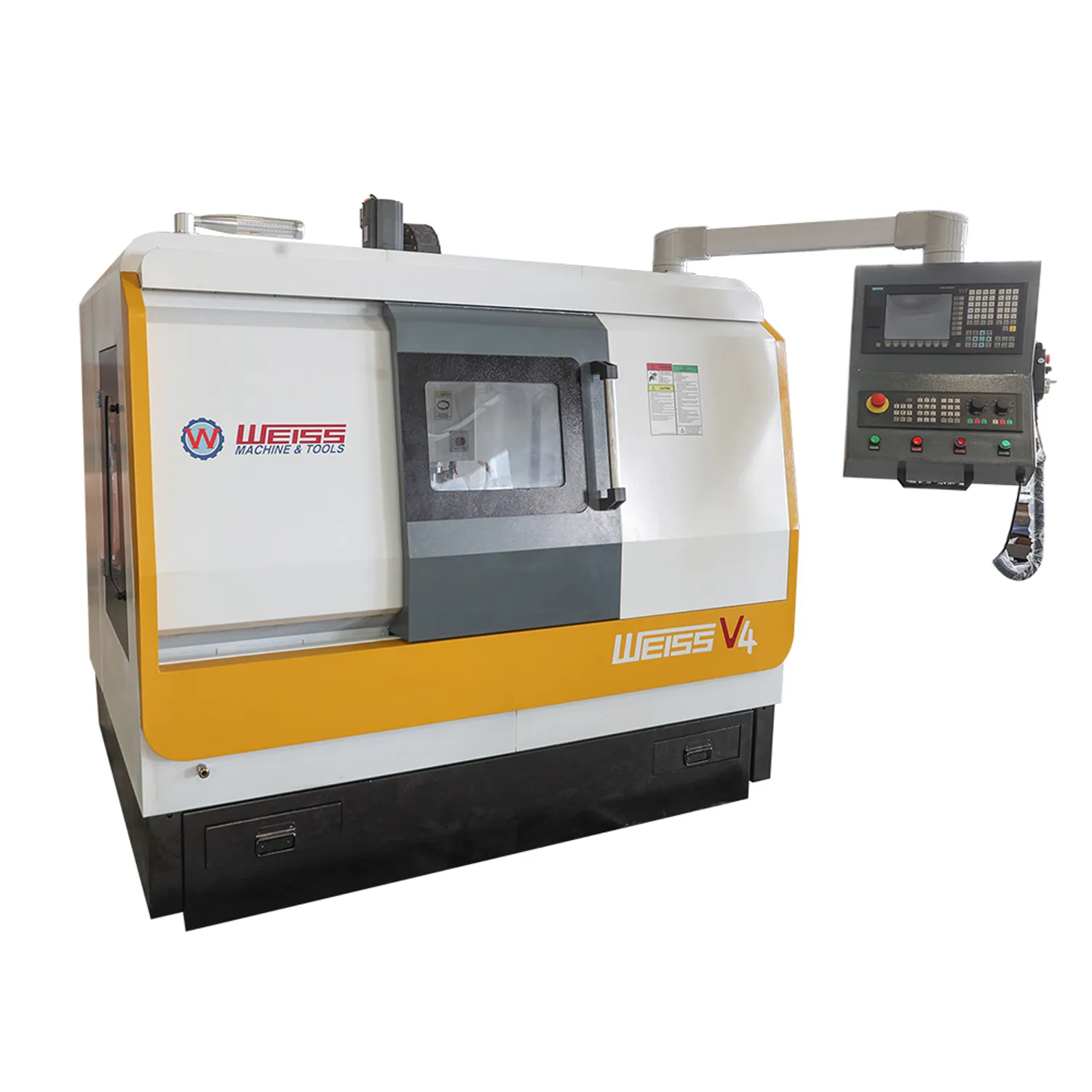

| MODEL NO. | V2 | V3 | V4 |
| ITEM NO. | 10220200 | 10220300 | 10220400 |
| Specifications: | |||
| Max.drilling capacity | 25mm | 30mm | 45mm |
| Max.end milling capacity | 16mm | 20mm | 32mm |
| Max.face milling capacity | 63mm | 76mm | 80mm |
| Worktable | |||
| Table length | 700mm | 840mm | 800mm |
| Table width | 180mm | 210mm | 260mm |
| Distance from spindle to column | 160mm | 200mm | 285mm |
| Distance from spindle to table | 320mm | 400mm | 465mm |
| T-slot | 3x12mm/63mm | 3x14mm/63mm | 5x16mm/50mm |
| Spindle | |||
| Spindle taper | MT2/R8 | BT30 | BT30 |
| Spindle speed | 100-3000rpn | 6000rpm | 6000rpm |
| Feed speed | |||
| X-axis | 5000mm/min | 6000mm/min | 8000mm/min |
| Y-axis | 5000mm/min | 6000mm/min | 8000mm/mir |
| Z-axis | 5000mm/min | 6000mm/min | 8000mm/min |
| Feed motor torque | |||
| X-axis | 2.39Nm | 2.39Nm | 6Nm |
| Y-axis | 2.39Nm | 3.18Nm | 6Nm |
| Z-axis | 2.39Nm | 3.18Nm | 6Nm |
| Travel | |||
| X-axis | 480mm | 400mm | 375mm |
| Y-axis | 150mm | 180mm | 215mm |
| Z-axis | 275mm | 250mm | 365mm |
| Precision | |||
| Repositioning accuracy | 0.015mm | 0.01mm | 0.01mm |
| Positioning accuracy | 0.015mm/300mm | 0.02mm | 0.01mm |
| Turret | |||
| Type | / | Armless | Armless |
| Number of tools | / | 8T | 12T |
| Floctrical Date | |||
| Spindle moto | 1.1KW | 1.5KW | 2.2/3.7KW |
| Supply voltage | 220V or 110V | 220V or 110V | 220V or 400V |
| Main trequenc | 50HZ or 60HZ | 50HZ or 60HZ | 50HZ or 60HZ |
| Dimensions and weights | |||
| Length approx | 1650mm | 1960mm | 2000mm |
| Width/depth appro | 830mm | 1400mm | 1630mm |
| Height approx | 1900mm | 2080mm | 2100mm |
| Features: | ||
| ||
| Details: | ||
