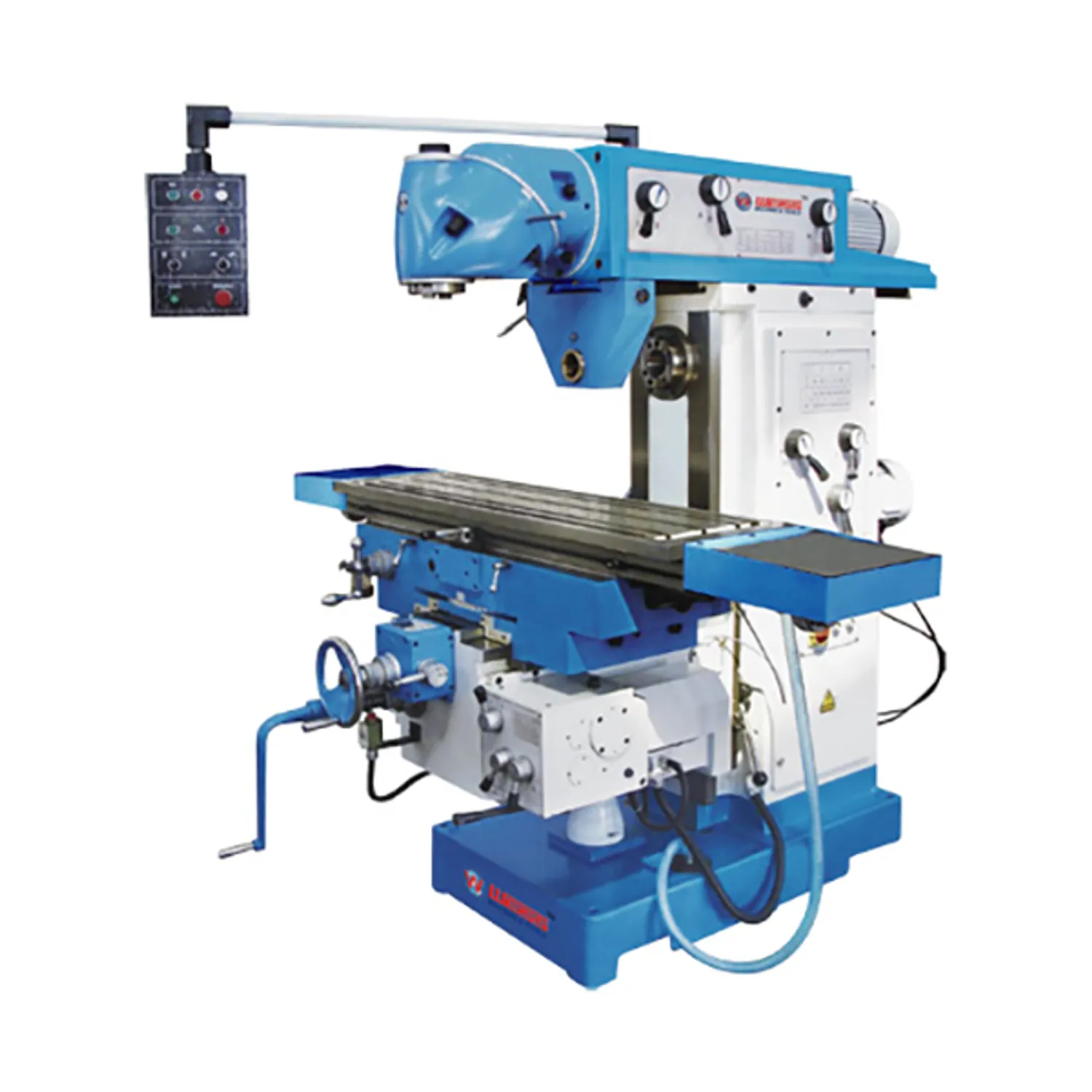

WM6436 Universal Milling Machine

Min. Order: 1 Bag/Bags
Transportation: Others

Price:

Get Latest Price

Contact Now



MOB:19962018358 Contact Us >



E- MAIL info@weiss.com.cn

Product Detail Description

Product Attributes

Model No.: WM6436 Universal Milling Machine

Item No: 10208136

Product Categories: Universal Milling Machine

Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Features

1、Milling head can be swiveled and rotated at any spatial angle.
2、Smooth running due to polished gear wheels running in oil bath.All guides are hardened and adjustable by means of wedges.

Specifications

Model No.	VM6436
Item No.	10208136
Specifications
Table size	1320 x 360 mm
Table travel (X,Y)	1000 x 300 mm
Knee travel	400
Table power feed speed range (X)	22 ~ 420 mm/min.
Table power feed speed range (Y)	22 ~ 393 mm/min.
Knee rapid speed	10 ~ 168 mm/min.
T-slot	3 x 14 - 94 mm
Tabel swivel angle	35°
Ram travel	700 mm
Vertical Spindle:
Distance from spindle nose to table	0 ~ 400 mm
Distance from spindle axis to column	250 ~ 950 mm
Spindle taper	ISO50
Step of spindle speeds	12
Range of spindle speeds	60 ~ 1750 rpm
Spindle motor	4 kw
Head swivel (L&R)	360°
Horizontal Spindle:
Spindle taper	ISO50
Step of spindle speeds	12
Range of spindle speeds	60 ~ 1750 rpm
Spindle motor	4 kw
Distance spindle center to table	0-400 mm
Distance Spindle cneter to ram	180 mm
Packing size	2070 x 2025 x 2020 mm
Net weight	2300 kg

Features&Details

FEATURES:

Versatile application.
Heavy, solid design made of high-quality Meehanite cast iron.
Vertical and horizontal milling position.
Robust machine construction.
Milling head can be swiveled and rotated at any spatial angle.
Smooth running due to polished gear wheels running in oil bath.All guides are hardened and adjustable by means of wedges.
Central lubrication.Large sized decoupled handwheels with scal

LED machine lamp.Coolant system.Easy operation of the switching elements.
Sturdy, rectangular guideways in the Y and Z axes.
Height-adjustable protective screen with micro-switch, against flying chips and parts, for maximum protection of the user.
Massive and large-dimensioned XY stage, precisely surface-finished with T-slots.
Feed motor with fixed steps.Table feed X and Y axis.Z-axis with electric table height adjustment.
