| Selling Units: | Bag/Bags |
|---|
Transportation: Others

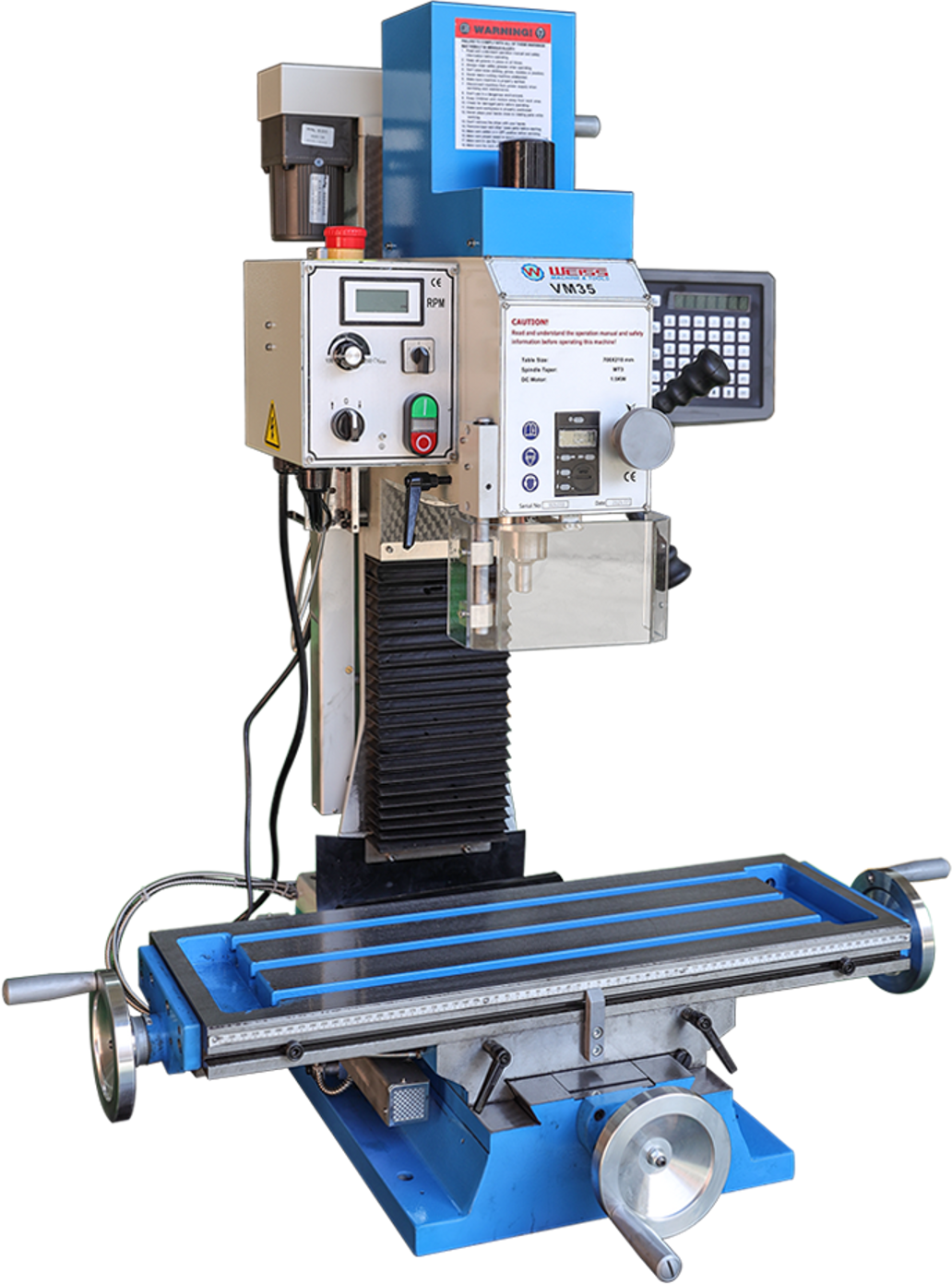

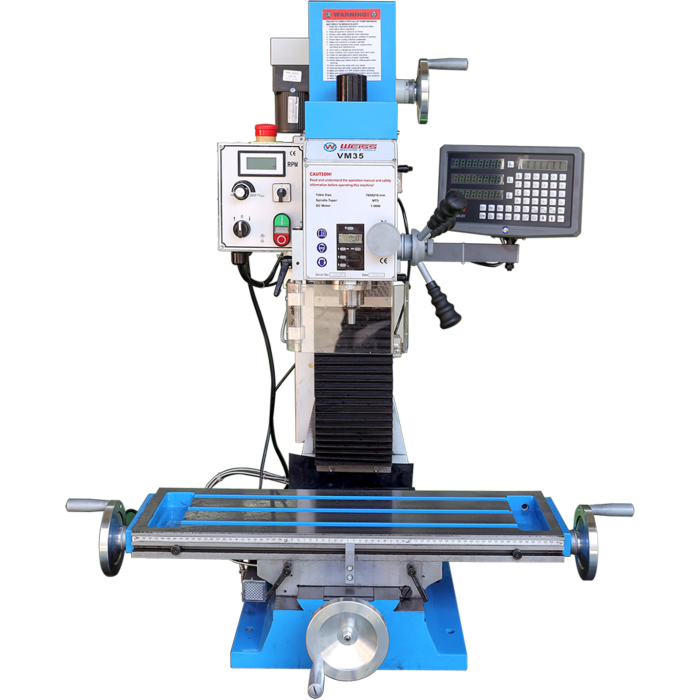

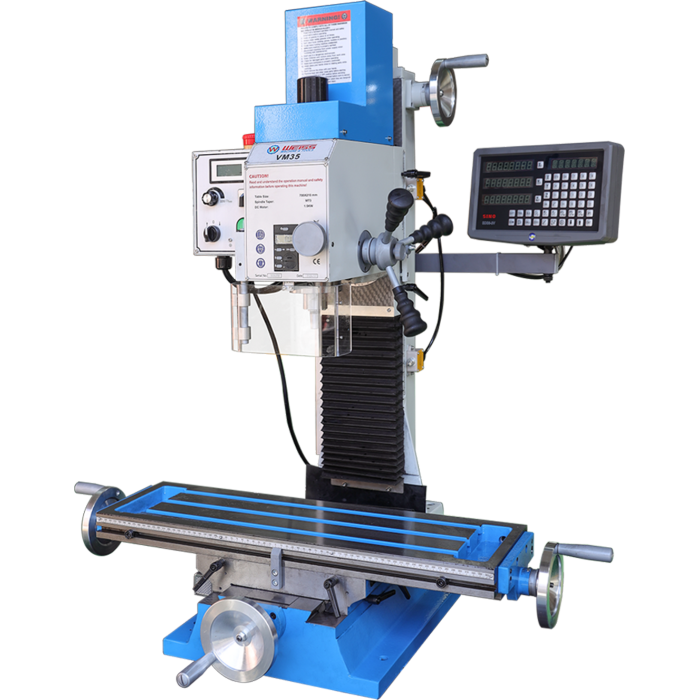

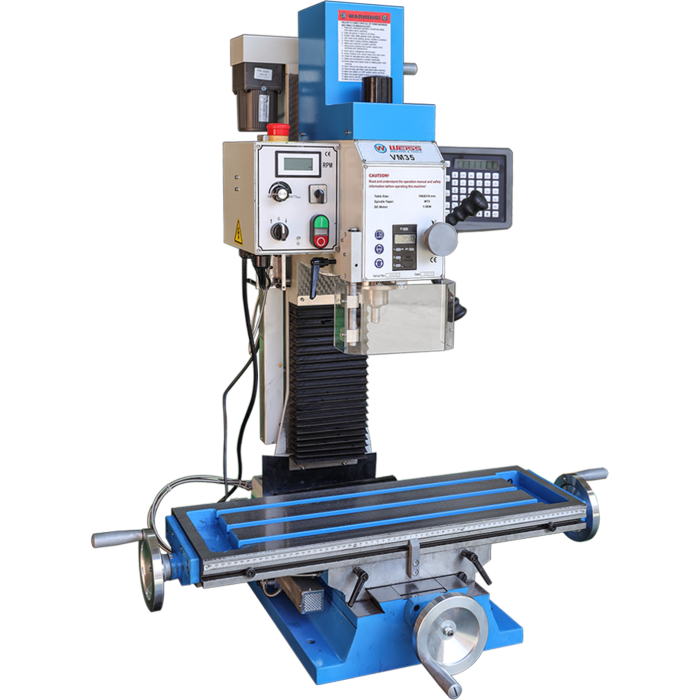

| Model No. | VM35/VM35L | |
| ITEM NO. | 10203350/10203355 | |
| Specifications： | Metric(mm) | Imperial (in) |
| Max. drilling capacity | 30 mm | |
| Max. end milling capacity | 20 mm | |
| Max. face milling capacity | 76 mm | |
| Table size | 700x210 mm/840x210 mm | |
| Table travel (X,Y) | 440x180 mm/520x180 mm | |
| X-Axis leadscrew | Ball screw | |
| Y-Axis leadscrew | Ball screw | |
| Z-Axis leadscrew | T screw | |
| Spindle taper | MT3/R8/ISO30 | |
| Spindle stroke | 70 mm | |
| Step of spindle speeds | Variable | |
| Range of spindle speeds | 100-2250 rpm | |
| Spindle incline angle | ±90 º | |
| Distance from spindle to column | 190 mm | |
| Distance from spindle nose to table | 470 mm | |
| Brushless Motor | 1.5 kw | |
| Machine Size | 1000/1300x710x1185 mm | |
| Packing size | 900/1100x700x1150 mm | |
| Net weight | 205kg/225kg | |
| Gross weight | 245kg/265kg | |

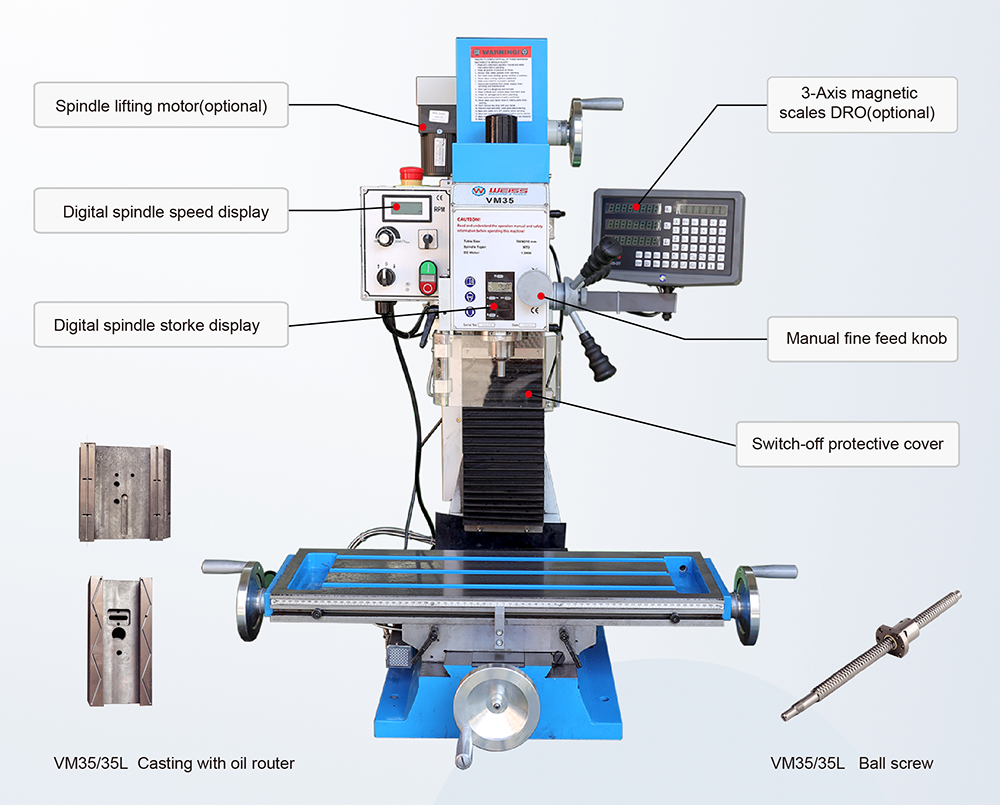

FEATURES:
1. 700/840x210mm table provides a large work space and the T-slots allow clamping the work-piece for an accurate and safe operation
2. 1500W powerful brushless motor with high-torque and low-noise, easy maintenance
3. Single speed tooth belt drive provide convenient and reliable operation with quiet running
4. Variable-speed spindle from 100 to 2,250 rpm with DRO
5. Micrometer fine feed or standard drilling function
6. The dovetail rails are equipped with adjustable taper inserts for greater wear resistance
7. Super-rigid precision-ground dovetail headstock column and table ways, precision handwheel control for X, Y, and Z-axis
8. Counterweight facilitates adjustment of the Z-axis
9. Mill head tiltable to both sides by ± 90 ° for angular boring, milling of bevels etc.

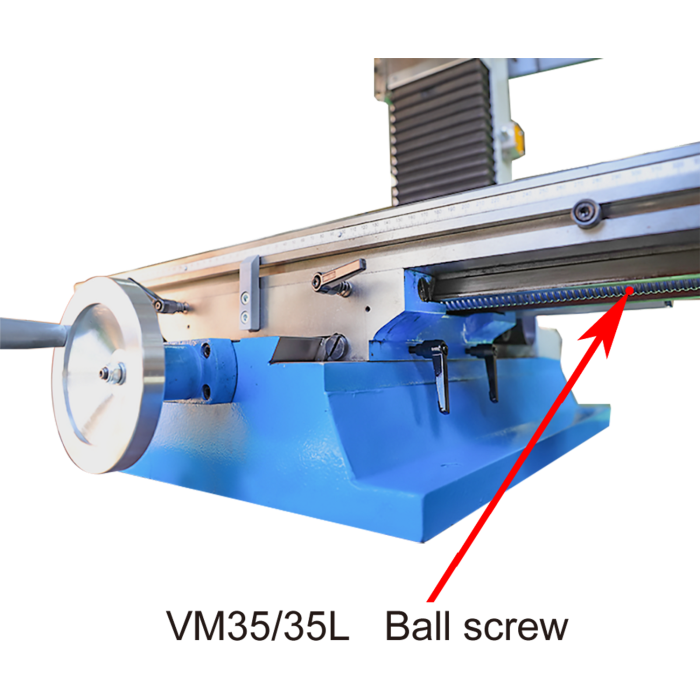

10. VM35(L) is ball-screw type based on VM32(L), wiith X & Y axis ball screw and Z axis common screw
11. VM35(L) Z axis ball screw is available for CNC conversion.
12. Manual central lubrication is available for VM35(L) (optional)
13. VM35(L) is your best choose for CNC updating conversion
| STANDARD ACCESSORIES: | INCLUDED |
| Drill chuck 3-16mm | yes |
| Arbor MT3/B16-M12 | yes |
| Drawbar | yes |
| Digital display of speed range | yes |
| Digital spindle stroke indication | yes |
| Protect cover for spindle | yes |
| Tool box & tools | yes |
| OPTIONAL ACCESSORIES: | Item NO.: |
| Tapping foot pedal | 30200024 |
| X-Axis power feed | 30203041 |
| Z-Axis elevator motor | 30203047 |
| Keyless drill chuck 3-16mm | 22020205 |
| HHS 25PCS drill set 1-13mm | 21210252 |
| 7 PCS HSS Tin-coated end mill set, 4-16mm | 21100007 |
| 12 PCS HSS Tin-coated end mill set, 3-12mm | 21100012 |
| 20 PCS HSS Tin-coated end mill set, 3-20mm | 21100020 |
| 5 pcs Center drill set | 21200005 |
| 58pcs clamping kits M 12 x 1.75/13.7mm | 22038024 |
| Mill chuck set ER32 MT3 3-20mm 12pcs | 22030233 |
| Machine Vise BMS125 | 22101025 |
| Machine vise WHV140 | 22101045 |
| 2 way precision tilting vise WOA100 | 22102104 |
| Universal machine vise MVB150 | 22102026 |
| Rotary Table RT150 | 22111515 |
| Semi-universal dividing head BS-0 | 22113005 |
| 3-Axis DRO with magnetic scales D80 | 23073304 |
| Oil tray | 30203010 |
| Stand | 30203030 |
| Luxury stand | 30203035 |
| Manual central luburication (only VM35/VM35L) | 30203019 |
