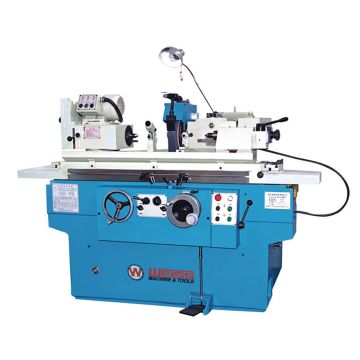

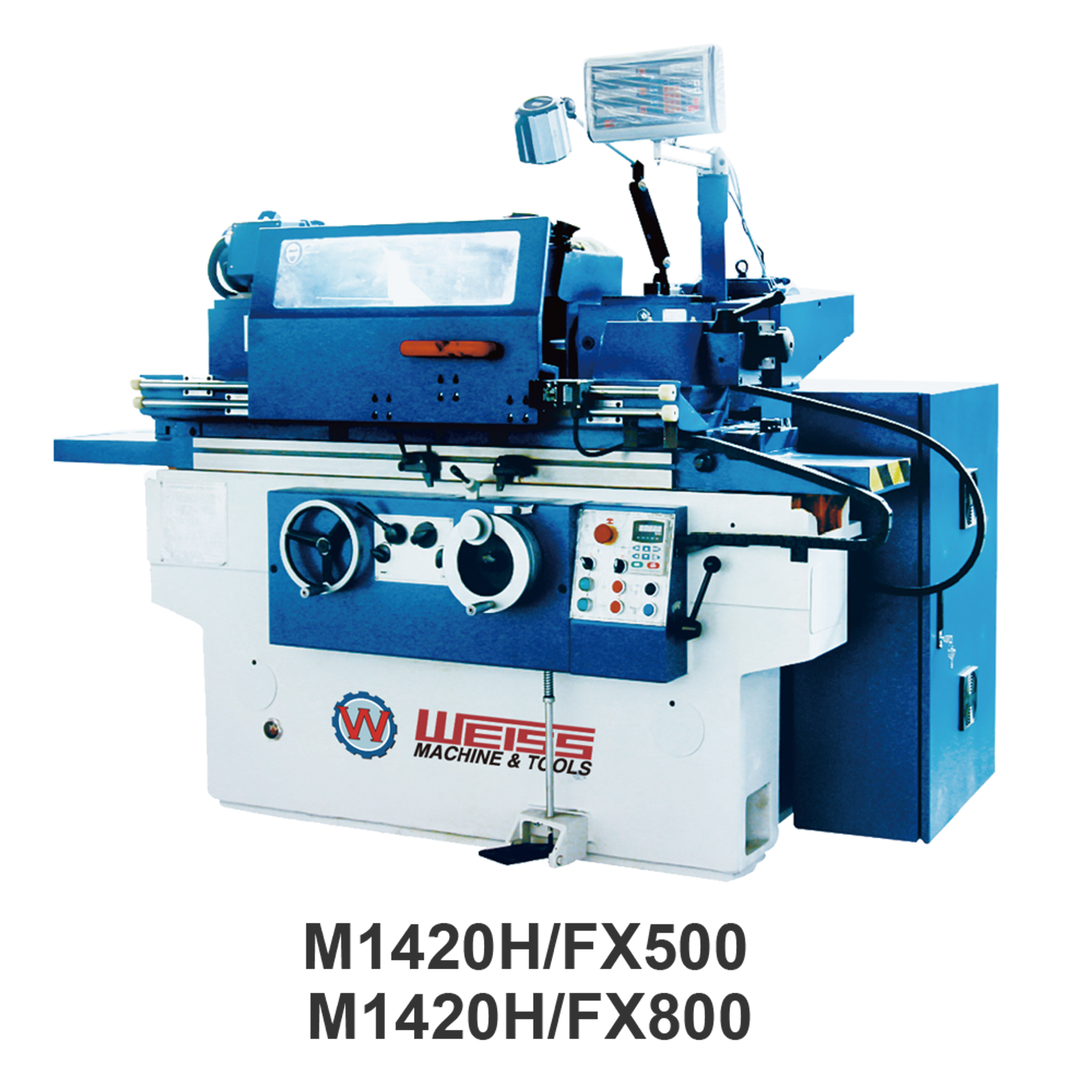

Name: M1420H/FX500 / M1420H/FX800 Cylinderical Grinding Machine
Brand: Weiss Machinery
Rating: 4.6 (2 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Specifications

Model No.	Unit	M1420H/FX500	M1420H/FX800
Item No.		10442005	10442008
Specifications：
External grinding diameters	mm	Φ8 - 200	Φ8-200
Internal grinding diameters	mm	Φ13 - 100	Φ13-100
Center height	mm	135	135
Workhead spindle speed	r/min	50Hz:25-380 stepless	50Hz:25-380 stepless
Max.travel of table	mm	650	950
Hydraulic traverse speeds	m/min	0.1 -4	0.1-4
Max.traval of worktable	kg	50	50
Grinding length External/Internal	mm	500/125	800/125
Swinel range of worktable		-5 - +9°	-3 - +7°
Max peripheral speed of grinding wheel	m/s	38	38
External wheel size	mm	Max Φ400x50xΦ203 Min Φ280x50xΦ203	Max Φ400x50xΦ203 Min Φ280x50xΦ203
Internal wheel spindle rotating-speed	drain	16000	16000
Workhead and tailstock center	morse	NO.4	NO.4
Machine motor power	kw	5.625	5.625
O.D.Roundness	μm	1.5/2.5 (O.D/I.D)	1.5/2.5 (O.D/I.D)
Uniform of dia. in longitudinal section	μm	5/8 (O.D/I.D)	5/8 (O.D/I.D)
Surface roughness	μm	Ra 0.32/0.63 (O.D/I.D)	Ra 0.32/0.63 (O.D/I.D)
Overall dimensions(LxWxH)	mm	2500x1600x1500	3000x1600x1500
Machine weight	kg	2500	3000

Features&Details

Features:

M1420H/F universal cylindrical grinding machine is the latest up to up grade products. For grinding the workpiece of inner and outer cylindricaland tapered, the most suitable for single piece and small batch production use.
Headstock by a variable frequency motor drive, continuously variable transmixxion.
Longitudinal movement of the machine by hydraulic stepless transmission, can also hand-wheel drive; wheel lateral movement with hydraulic quick retreat and manual feed function

Standard Accessories

Main Accessories:
Complete set of electric epuipment
Grinding wheel dresser
Wheel flanges
Wheel balancing mandrel
3-Jaw chuck
Chuck base
Open type steady rest
Driving dog
Carbide-tipped center
Supportiron
Extra Accessories:
Wheel Balancing stand
Radirs dresser
Center rest close type
