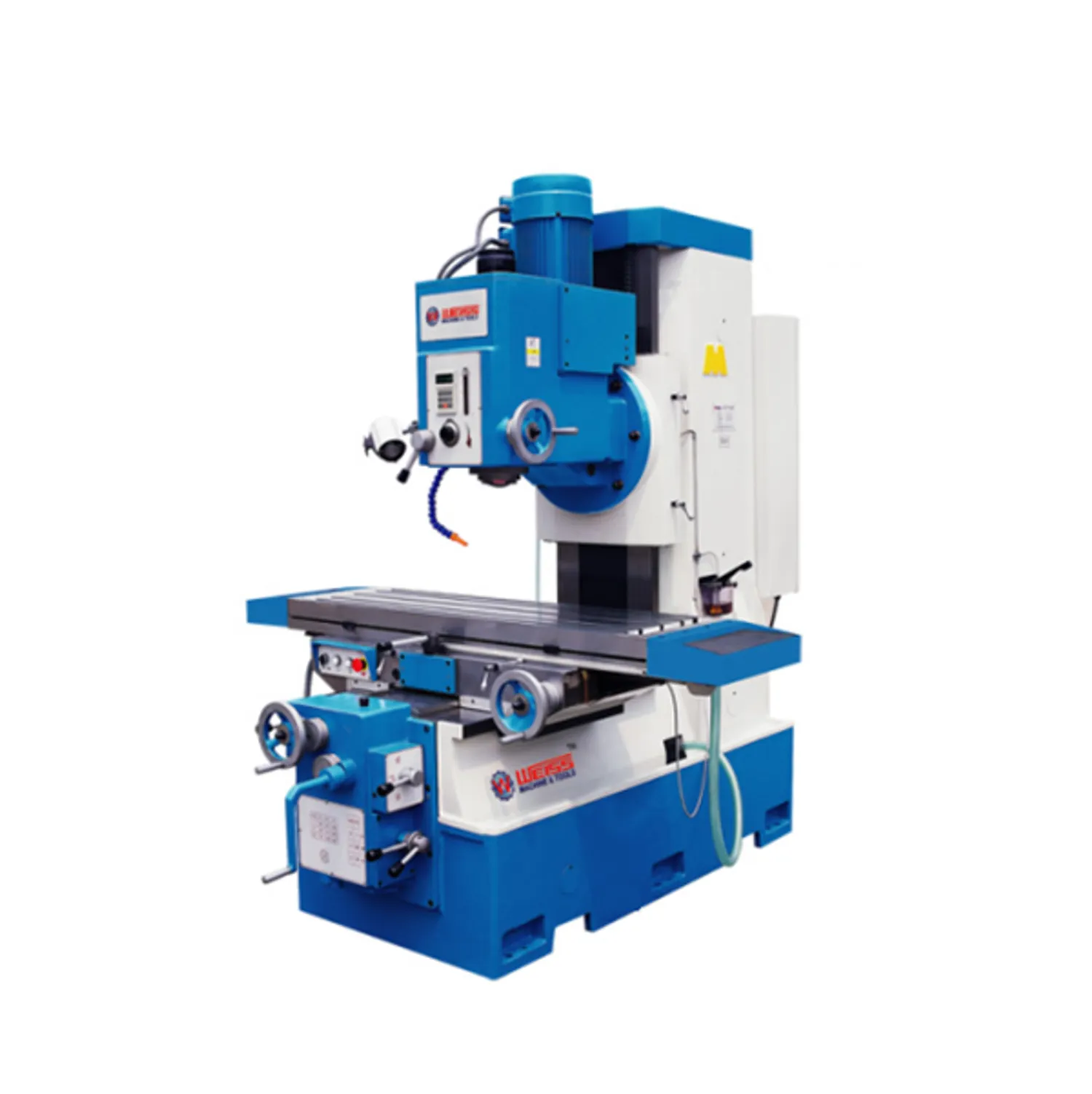

Name: WM7140 Bed-type Milling Machine
Brand: Weiss Machinery
Rating: 4.6 (45 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Features

1、Lathe bed structure, good rigidity and high precision.
2、Spindle sleeve automatic, manual, manual fine adjustment and other feed functions.

Specifications

Model No.	VM7140
Item No.	10209040
Specifications
Table size	1400 x 400 mm
Table travel (X,Y)	800 x 400 mm
Table power feed speed range (X)	18 ~ 627 mm/min
Table power feed speed range (Y)	18 ~ 627 mm/min
Headstock feed speed range (Z)	18 ~ 627 mm/min
T-slot	3 x18 - 100 mm
Distance from spindle nose to table	150 ~ 650 mm
Distance from spindle axis to column	525 mm
Spindle taper	ISO50
Spindle stroke	105 mm
Step of spindle speeds	Variable
Range of spindle speeds	18 ~ 1800 rpm
Head swivel	±30°
Automatic spindle feed	-
Spindle motor	7.5 kw
Overall dimension	2290 x 2040 x 2120 mm
Net weight	3860 kg

Features&Details

Lathe bed structure, good rigidity and high precision.
Spindle sleeve automatic, manual, manual fine adjustment and other feed functions.
The milling head is lifted along the guide rail of the lathe bed.worktable x, y mobile feed.
The manual lubrication device can forcibly lubricate the screw rod and guide rail.
