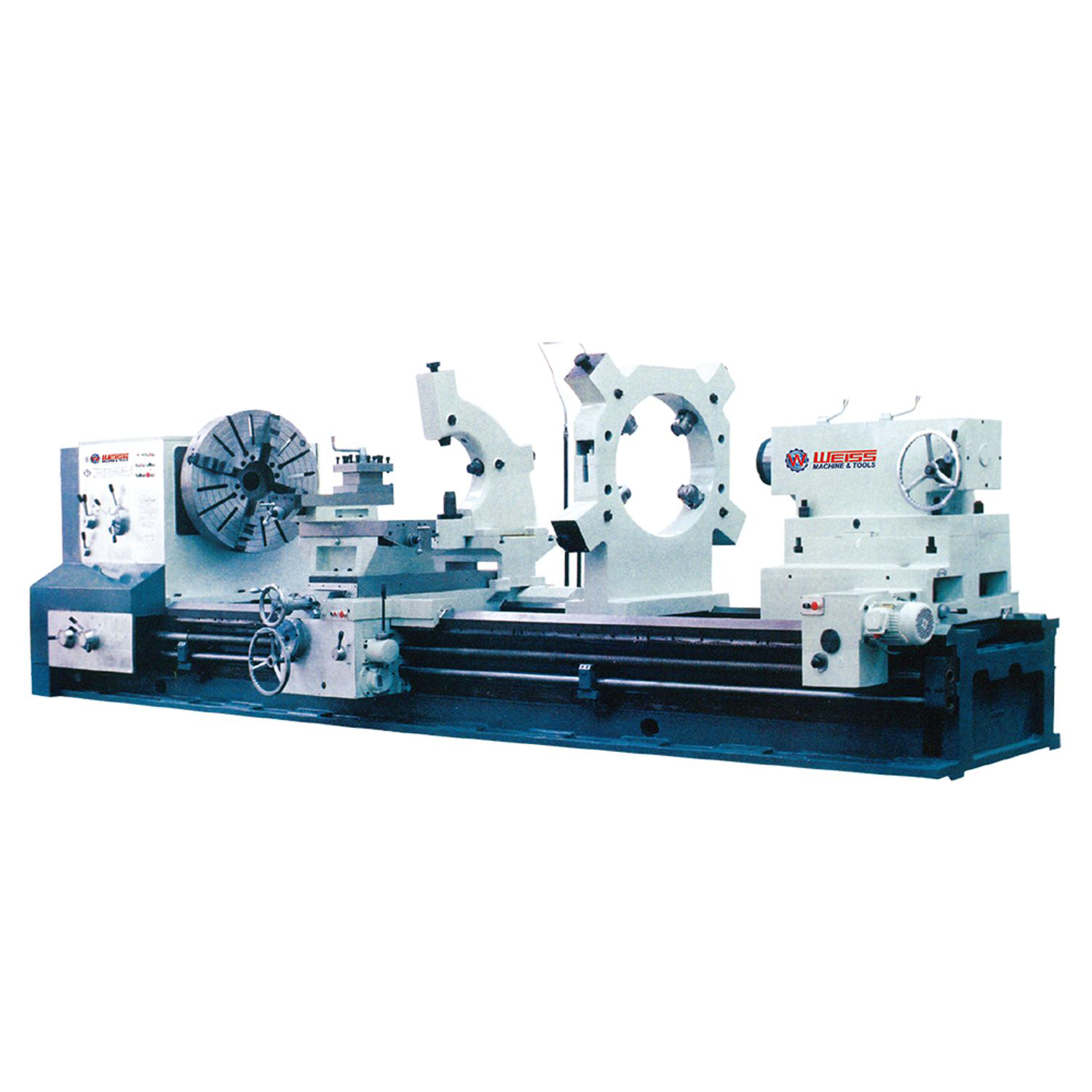

WL1280T/WL1480T/WL1680T/WL1980T/WL2080T HEAVY DUTY LATHE MACHINE

WL1280T/WL1480T/WL1680T/WL1980T/WL2080T HEAVY DUTY LATHE MACHINE
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WL1280T/WL1480T/WL1680T/WL1980T/WL2080T Heavy Duty Lathe Machine

    Distance Between Centers: 2000mm 3000mm 4000mm 5000mm 6000mm 8000mm 10000mm 12000mm

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications

    Model No. WL1280T/WL1480T/WL1680T/WL1980T/WL2080T

    ITEM NO.    		 WL1280T:10108502-10108509
    WL1480T:10108522-10108529
    WL1680T:10108542-10108549
    WL1980T:10108562-10108569
    WL2080T:10108582-10108589
    Specifications： Metric(mm) Imperial (in)
    Max.weight of workpiece 10T
    Max swing over bed 1280/1480/1680/1980/2080mm
    Max swing over cross slide 800/1000/1200/1500/1600mm
    Center distance 2m, 3m, 4m, 5m, 6m, 8m, 10m, 12m
    Width of bed 1100 mm
    Spindle bore Φ130 mm
    Spindle taper metric140#
    Spindle speeds 3.15-315 dmin or 2-200 r/mm or 2.5-250 r/mm,
      foreward.21 ,kinds, reversal.12,kinds
    Metric threads range 44 kinds 1-120 mm
    Inch threads ranqe 31 kinds 1/4-24/inch
    Moudle threads range 45 kinds 0.5-60 mm
    Diametrical threads range 38 kinds 1 / 2-56DP
    Longitudinal feeds range 56 kinds 0.1-12 mm
    Cross feed ranqe 56 kinds 0.05-6 mm
    Rapid feed Longitudinal/Cross 3400 mm/min.,1700 mm/min.
    Distance between Center & Tool 48 mm
    Tool section 45x45 mm
    Cross slide travel 860 mm
    Compound rest travel 280 mm
    Tailstock quill travel 300 mm
    Tailstock quill diameter Φ260 mm
    Tailstock quill taper metric 80#
    Main motor 30 kw
    Coolant pump motor 150W
    Rapid feed motor 1.5 kw
    Tailstock motor 1.5 kw
    Net weight (for WL1480T) 2m, 3m, 4m, 5m, 6m, 8m, 10m, 12m
      8000/19000/20000/21000/22000/24000/26000/28000kg
    Dimension (for WL1480T) (15280/6280/7280/8280/9280/11280/13280/15280)x2200x2600mm
