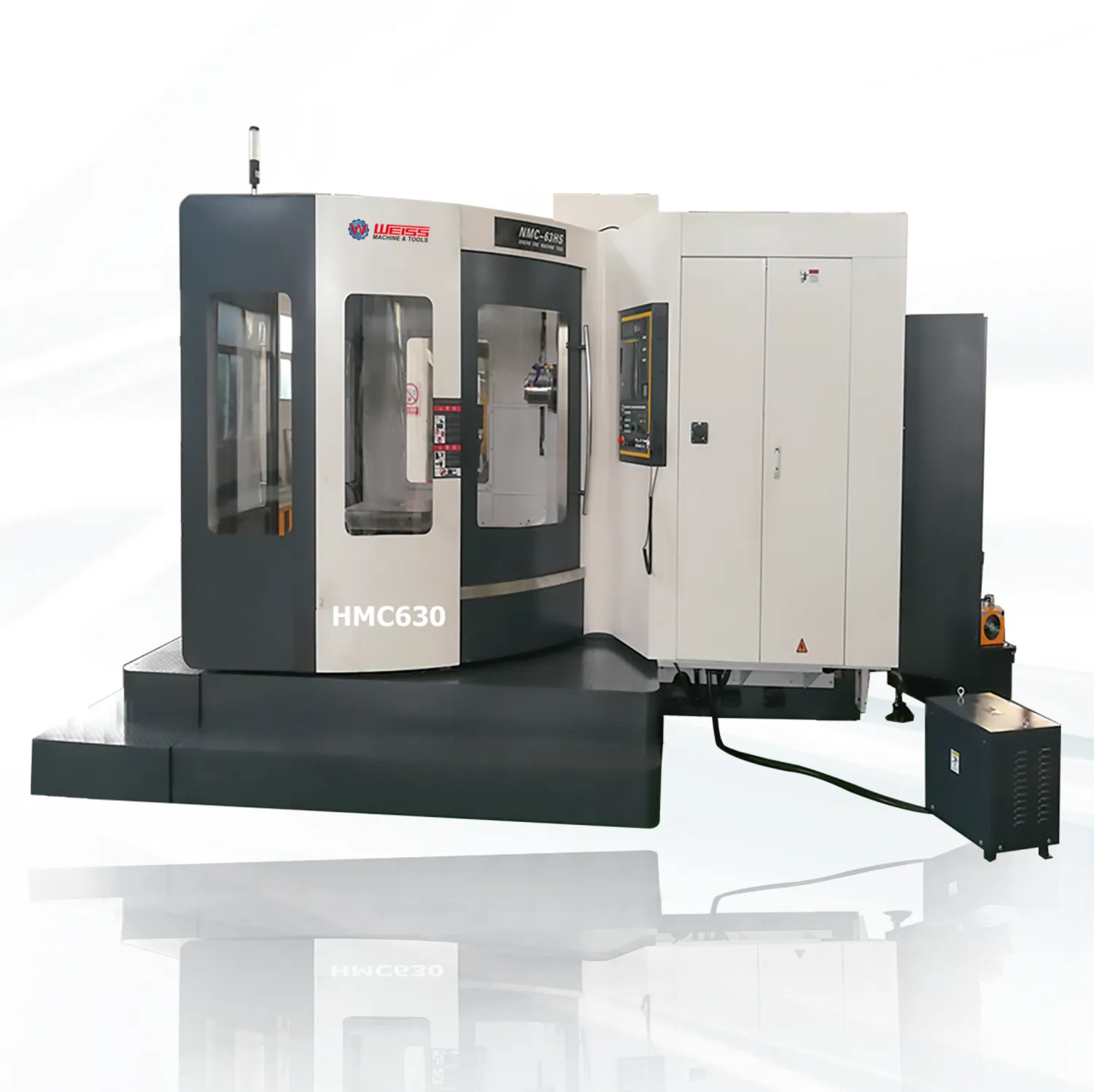

Name: HMC630 CNC HORIZONTAL MACHINING CENTER
Brand: Weiss Machinery
Rating: 4.9 (49 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Features

1、It has the advantages of high rigidity, good stability, and easy protection.
2、fast, stable, and reliable operation.

Specifications

CONTENT	METRIC INFO.
Item No.	10225063
Specification
Table size	630X700mm
T slot	5x22mm/125mm
Max. load	400kg
Table quantity	1pc (op. 2pcs)
Table indexing degree	1°/0.001°
Max. swing dia. of workpiece	1400mm
X/Y/Z axis travel	1050/750/4900mm
Distance between spindle center to table	0-750mm
Distance between spindle nose to table center	130-1030mm
Max. X/Y/Z feed speed	10000mm/min
Max. X/Y/Z rapid traverse	24/24/24m/min
Spindle speed	20-20000rpm
Spindle taper	BT50
Spindle motor power	15/18.5kw
X/Y/Z axis servo motor power	2.0/2.0/3.0kw
Guide way type	LM
Tool magazine	Chain
Tool capacity	30T(op40T/60T)
Tool weight	18kg
Positioning	±0.006mm
Repeatability	±0.004mm
Net weight	12000kg
Machine dimension(LxWxH)	3850x3550x3200mm

Features&Details

Features

Adopting the internationally popular inverted T-shaped movable column integral bed structure, it has the advantages of high rigidity, good stability, and easy protection.
The main castings are made of high-quality cast iron with high grade, resin sand molding, and secondary aging treatment after rough machining to ensure stability of accuracy.
Fully enclosed protection design, dual sided spiral chip removal structure, equipped with a large capacity cutting fluid water tank and convenient machine cleaning air gun, optional chain plate chip removal lifting device and chip storage car.
The standard BT50 ring spray spindle is equipped with an air curtain protection device, completely avoiding the infiltration of cutting fluid and dust; The spindle sleeve is cooled by circulating oil to ensure spindle accuracy and extend service life.
A fast and reliable cam manipulator tool changing mechanism, with a standard configuration of 30 pieces and a selection of 40 chain type tool magazine. The tool discs all adopt a bidirectional nearby tool selection method, ensuring fast, stable, and reliable operation.
