WDP16 Drill Press

WDP16 Drill Press
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WDP16

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications
    Model No. WDP16
    Item No. 10301160 10301160

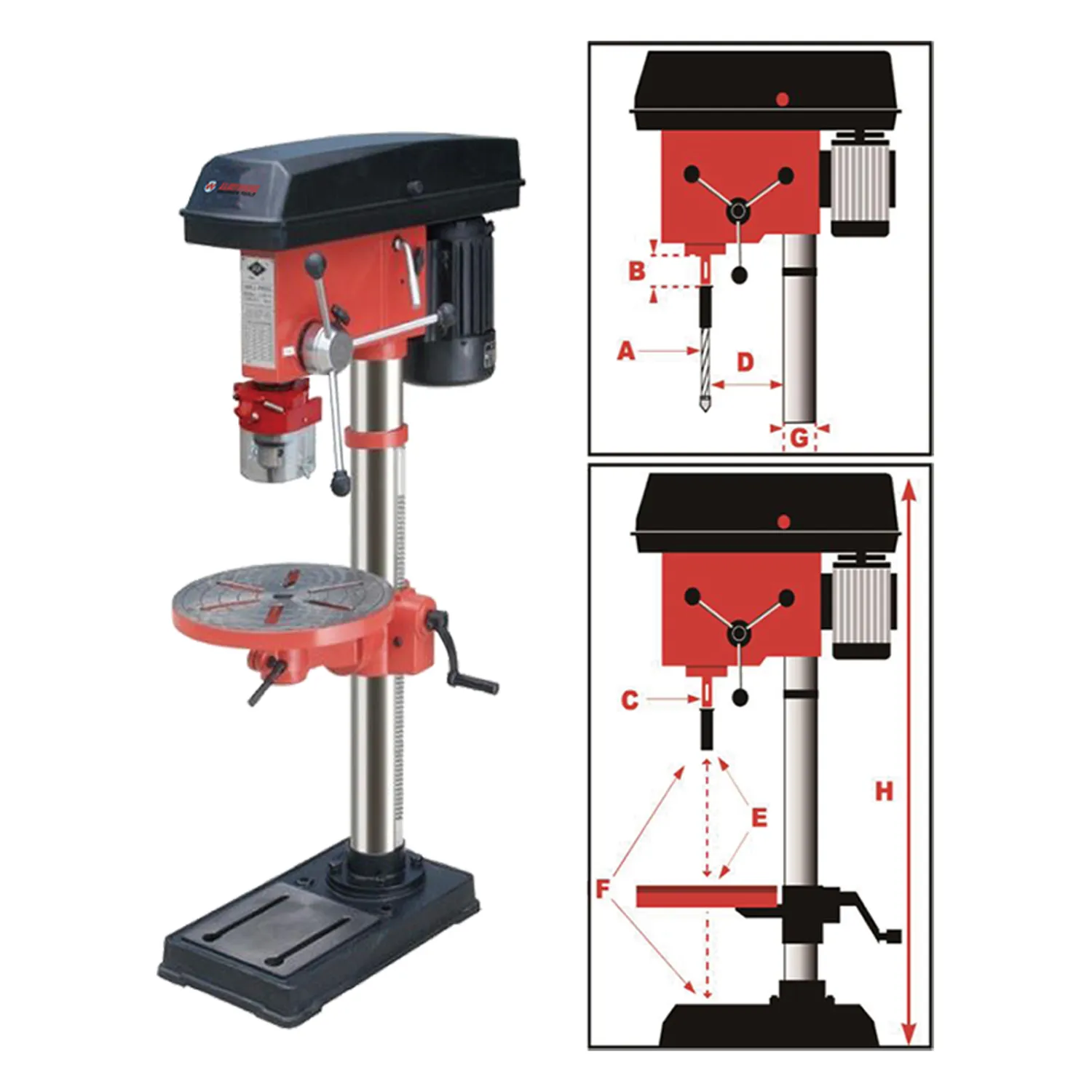

    Specifications： Metric(mm) Imperial (in)
    A Max Drilling Diameter Φ16mm (5/8")
      Motor Power (W) 375 W
      Chuck Capacity 3-16 mm
    B Spindle Travel 80 mm
      Class Of Speed 16
      Speed 50Hz 180-2770 RPM
      Speed 60Hz 220-3320 RPM
    C Spindle Taper MT2
    D Max. distance from spindle axis to surface of column 162.5 mm
    E Max. distance from spindle end to surface of table 450 mm
    F Max. distance from spindle end to surface of base 630 mm
      Table Size Φ290 mm
      Base Size 420X250 mm
    G Column Diameter Φ72 mm
    H Height 980 mm
      Net Weight/Gross Weight 42/45 kg
      Packing Size 770x450x260 mm
      20'/40' 325/650

    Features&Details

    1. Cast iron working table, Cast iron base
    2. GS/CE/EMC/ROHS
    3. Micro-switch inside pulley cover box

    4. Side electromagnetic switch
    5. Chuck Guard
    6. Cast aluminum Belt Pulley
    7. Rack lifting system



    Optional Accessories

    Optional Accessories: Code No.
    4" Bench vice
    Front emergency switch
    Cross laser light
