| Selling Units: | Bag/Bags |
|---|
Transportation: Others

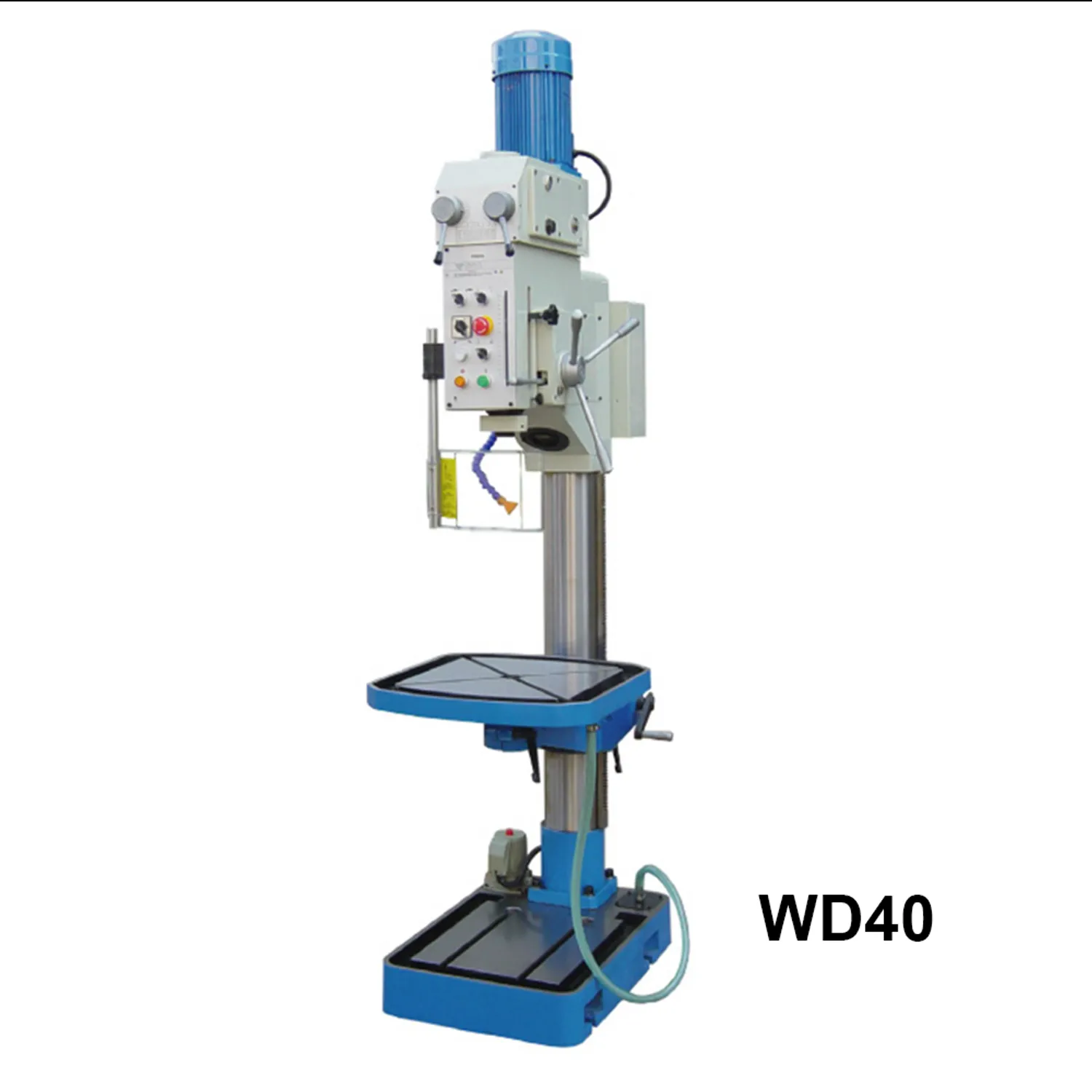

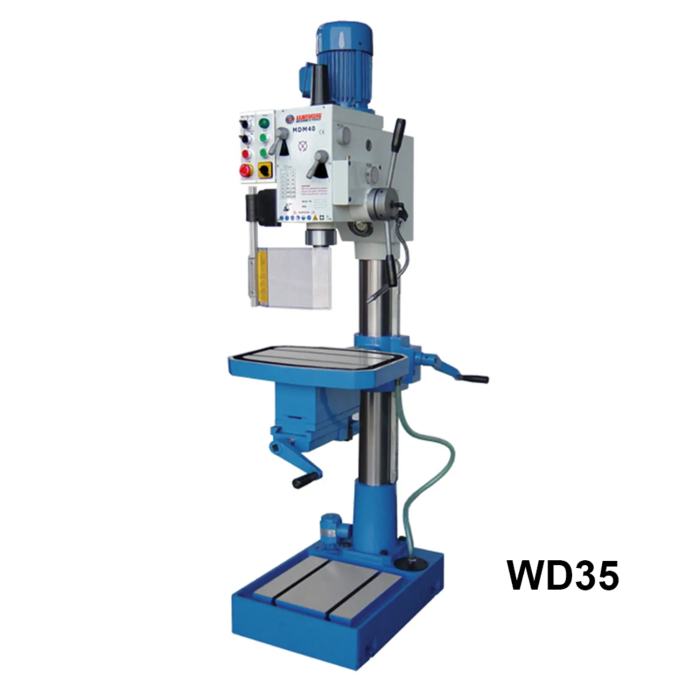

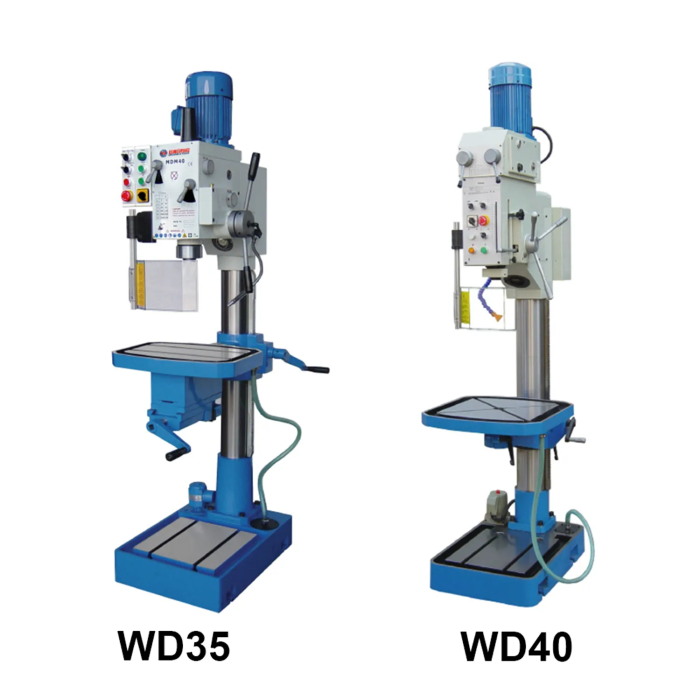

| Model No. | WD35 | WD40 |
| Item No. | 10303035 | 10303040 |
| Specifications： | ||
| Max. drilling capacity | Φ35 mm | Φ40 mm |
| Spindle taper | MT3, MT4, R8 | MT4 |
| Spindle stoke | 130mm | 180mm |
| Step of spindle speeds | 12 | 12 |
| Range of spindle speeds | 75 ~ 3200 rpm | 50 ~ 1450 rpm |
| Spindle feed range | 0.10/0.1810.26 mm/rev. | 0.1 / 0.2 mm/rev. |
| Diameter of column | 125 mm | 100-2900 rpm |
| Distance from spindle to column | 320 mm | 350 mm |
| Distance from spindle nose to table | 05 - 685 mm | 770 mm |
| Distance from spindle end to base | 1140 mm | 1210 mm |
| Table size | 500 x 360 mm | 560 x 560 mm |
| T-slot | 2x14mm | 18 mm |
| Base size | 470 x 670 mm | 730 x 500 mm |
| Main Motor | 1.5 kw | 0.75/1.5 kw |
| Coolant motor | 60 w | 75 w |
| Packing size | 570x 010 x 2110 mm | 1100 x 580 x 2270mm |
| Net weight | 400 kg | 540 kg |
|
