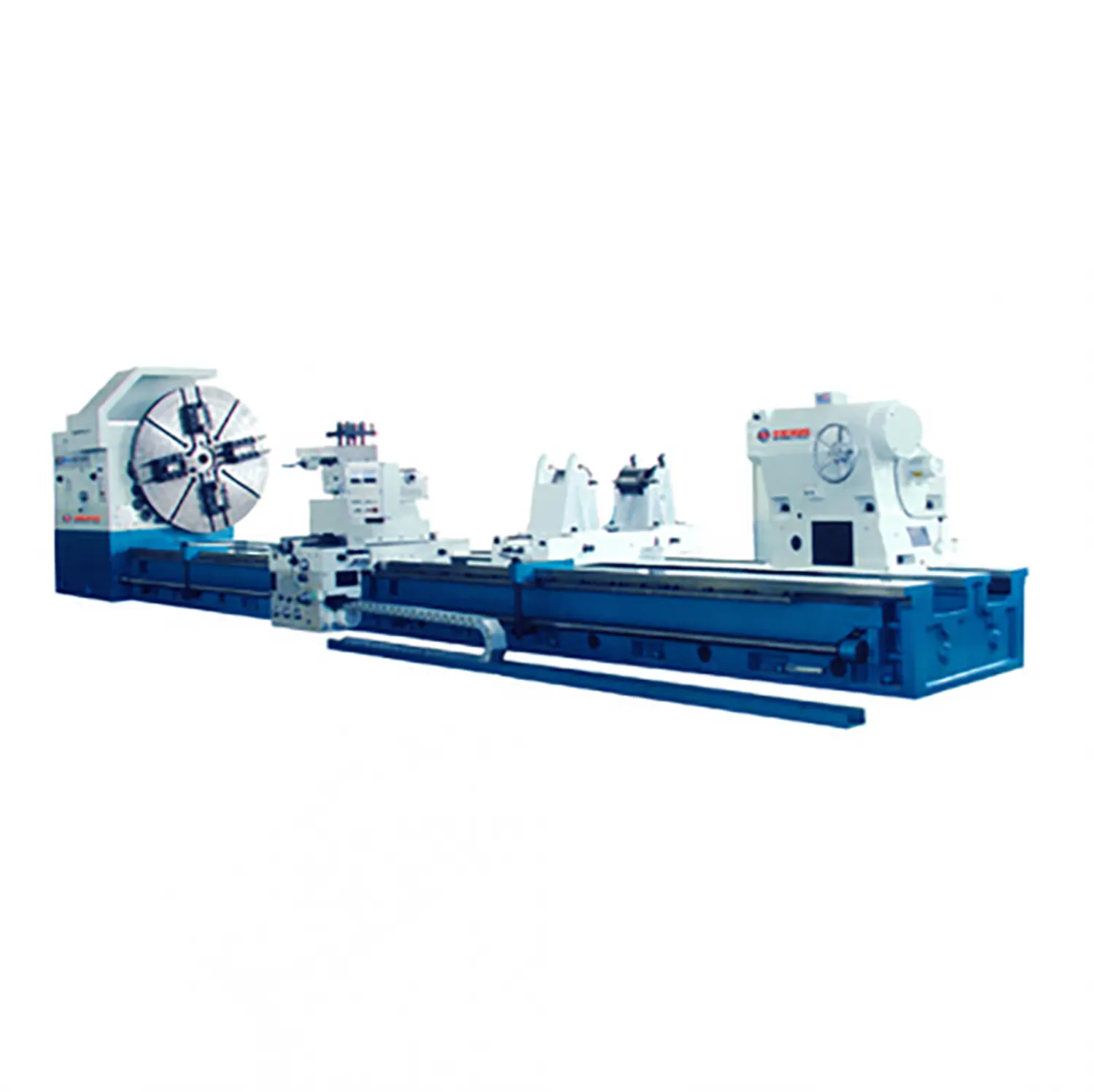

Name: WL1600D / WL1800D / WL2000D / WL2200D / WL2400D / WL2500D-Heavey duty lathe
Brand: Weiss Machinery
Rating: 4.7 (34 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Features

1、The main shaft adopts a two-support structure and is driven by a direct current motor, so that the main shaft obtains a stepless speed regulation range of 0.8-160r/min.
2、The lathe bed adopts a rectangular three-guide rail, and the whole lathe bed forms a box row, so that the lathe bed has higher rigidity.

Specifications

Model No.	WL1600D	WL1800D	WL2000D	WL2200D	WL2400D	WL2500D
Item No.	10108701~709	10108711~719	10108721~729	10108731~739	10108741~749	10108751~759
Max.weight of workpiece	32T	32T	32T	32T	32T	32T
Max swing over bed	1600 mm	1800 mm	2000 mm	2200 mm	2400 mm	2500 mm
Max swing over cross slide	1250 mm	1450 mm	1650 mm	1850 mm	2050 mm	2150 mm
Center distance	3m, 4m, 5m, 6m, 8m, 10m, 12m,16m
Width of bed	1600 mm
Spindle bore	Φ85 mm
Spindle taper	120 mm taper1:7
Spindle speeds	0.86~160 r/min.
Metric threads range	2~40 mm
Inch threads range	1~14 inch
Moudle threads range	1.5~20 mm
Longitudinal feeds range	0.125~4.8 mm/rev.
Cross feed range	0.063~2.4 mm/rev.
Rapid feed Longitudinal/Cross	3000 mm/min,1500 mm/min
Tool section	45x45 mm
Cross slide travel	725 mm
Middle slide travel	600 mm
Tailstock quill travel	300 mm
Tailstock quill diameter	300 mm
Tailstock quill taper	Φ100 taper 1:7
Close-type steady rest	Φ400-750 mm
Open-type steady rest	Φ650-1200 mm
Main drive motor	80 kw (D.C.)
Rapid feed motor	1.5 kw
Tailstock motor	1.5 kw

Description

FEATURES:

The main shaft adopts a two-support structure and is driven by a direct current motor, so that the main shaft obtains a stepless speed regulation range of 0.8-160r/min.
The lathe bed adopts a rectangular three-guide rail, and the whole lathe bed forms a box row, so that the lathe bed has higher rigidity.
The machine tool has the characteristics of strong rigidity, high efficiency, safety and reliability, convenient operation and beautiful appearance.
