| Selling Units: | Bag/Bags |
|---|
Transportation: Ocean,Land,Air,Express,Others
| CONTENT | METRIC INFO. | IMPERIAL INFO. |

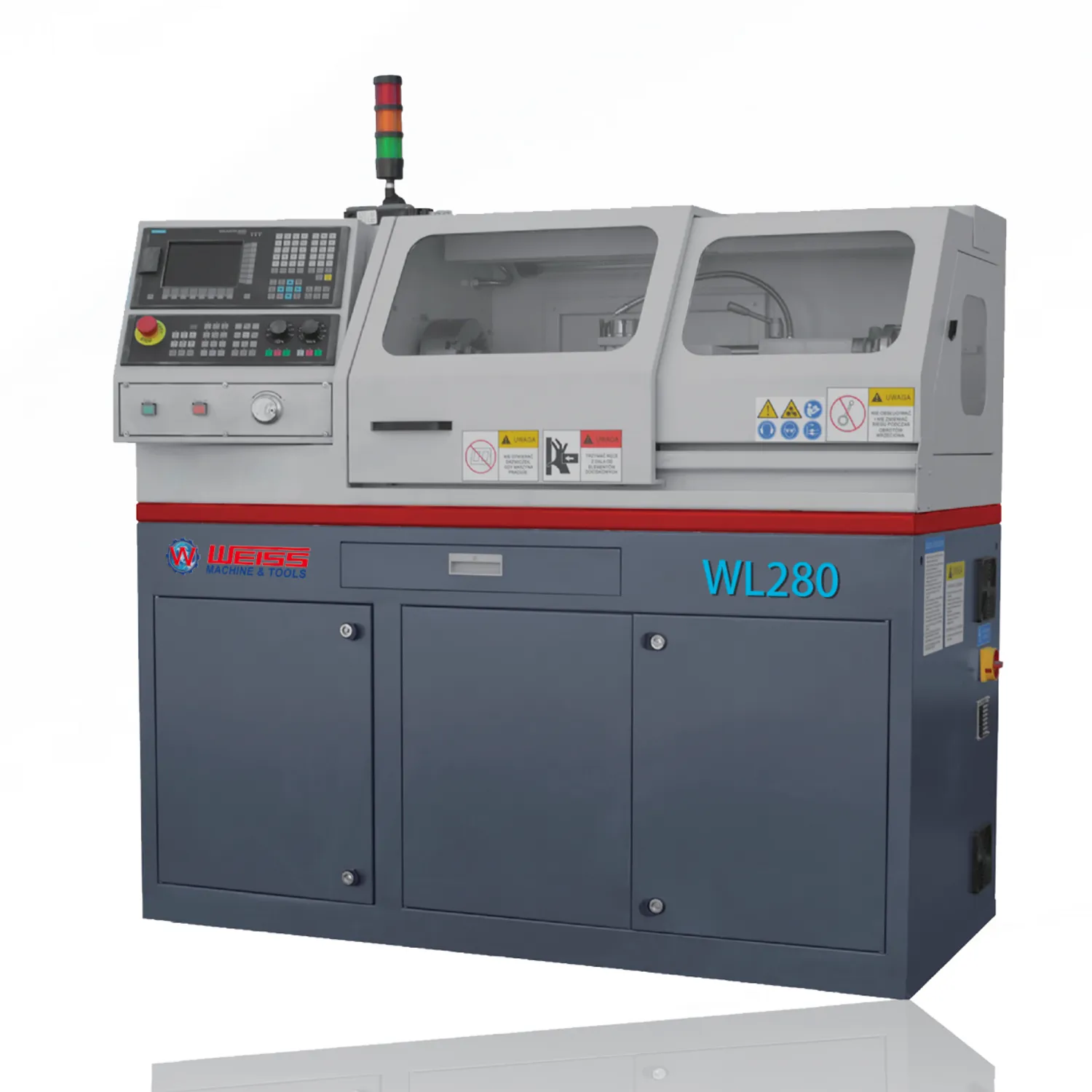

| ITEM NO. | 10120280 | |
| Specification | ||
| Swing over bed | Φ280mm | Φ11.02" |
| Swing over cross slide | Φ150mm | Φ5.91" |
| Distance between center | 500mm | 19.69" |
| Spindle nose | A2-5 | A2-5 |
| Spindle bore | Φ40mm | Φ1.57" |
| Taper of spindle | MT5 | MT5 |
| Chuck | 5" | 5" |
| Range Of spindle speed | 150~2500rpm or 30~4000rmp (op.) | 150~2500rpm or 30~4000rmp (op.) |
| X axis travel | 145mm | 5.71" |
| Z axis travel | 500mm | 20" |
| Turret | 4 | 4 |
| Max. section of tool | 12 X 12 mm | 0.47" X 0.47" |
| Travel of tailstock sleeve | 100mm | 4" |
| Diameter/taper of tailstock sleeve | Φ45mm/MT3 | Φ1.77"/MT3 |
| Main motor power | 2.2KW or 3.7KW (op.) | 2.2KW or 3.7KW (op.) |
| X axis feeding power | 3.5NM | 3.5NM |
| Z axis feeding power | 3.5NM | 3.5NM |
| Coolant pump power | 120W | 120W |
| Bed width | 180mm | 7" |
| Machine dimension | 1940 X 1210 X 1780mm | 76.38" X 47.64" X 70" |
| Weight | 800KG | 1763.69 pounds |
| Features | |
|
| Details | |
| STANDARD ACCESSORIES: | INCLUDED |
| Full enclosed protective cover | YES |
| 3-jaw chuck | YES |
| 4 position eletric tool post | YES |
| Manual chuck & tailstock | YES |
| Manual lubrication system | YES |
| Working light | YES |
| Tool box with tools | YES |
| OPTIONAL ACCESSORIES: |
| CNC contral system as request |
| 6 position electric tool post |
| Pneumatic chuck & tailstock |
| Hydraulic chuck & tailstock |
| Bar feeder |
| Universal Machine Vise MVB100 |
| Machine vise BMS150 |
