Model No. | WDP32 | ||
Item No. | 10301320 | 10301320 | |

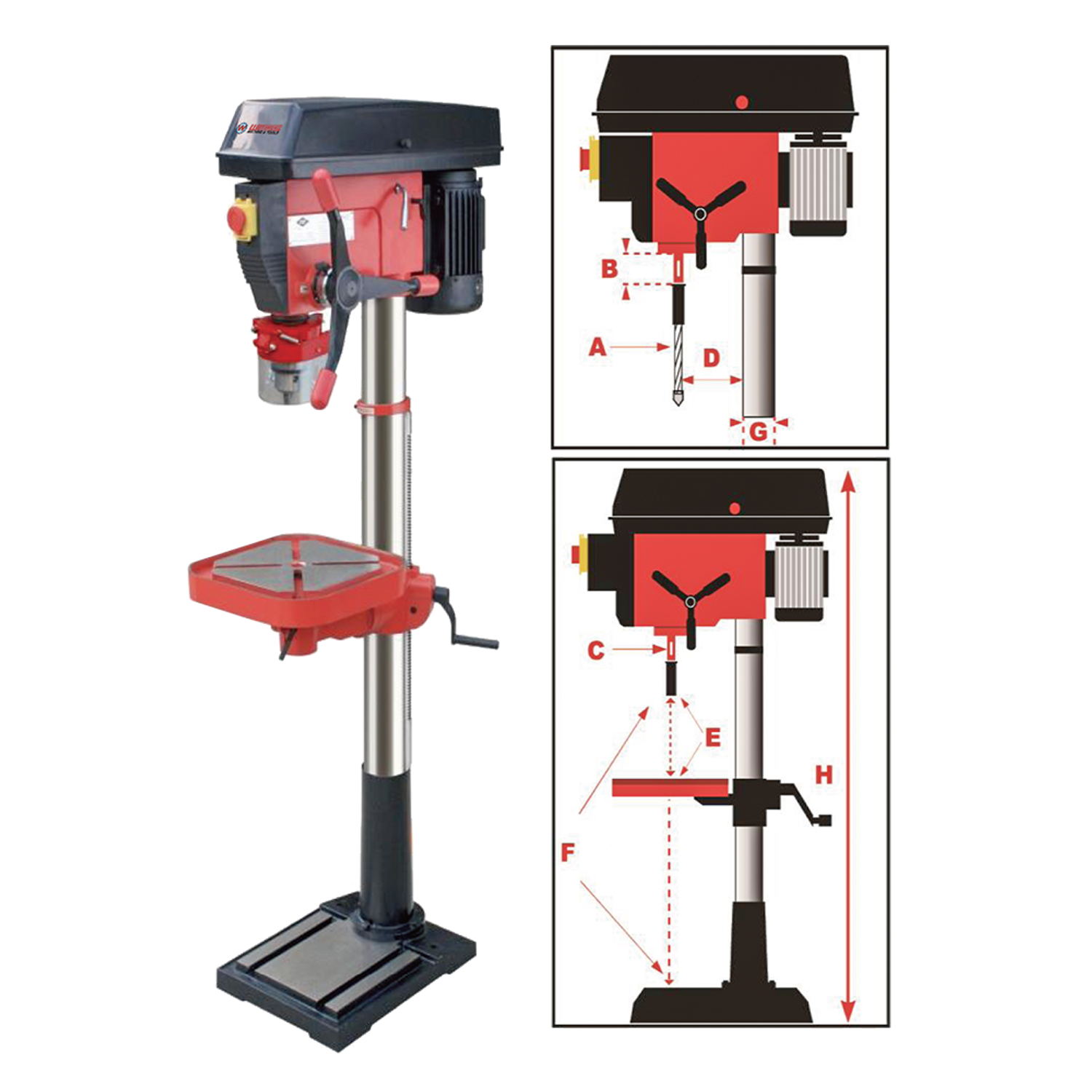

Specifications: | Metric(mm) | Imperial (in) | |
A | Max Drilling Diameter | Φ32mm(1-1/4") | |
Motor Power (W) | 1.1/1.5 kw | ||
Chuck Capacity | 5-20 mm | ||
B | Spindle Travel | 120 mm | |
Class Of Speed | 12 | ||
Speed 50Hz | 150-2450 RPM | ||
Speed 60Hz | 180-2940 RPM | ||
C | Spindle Taper | MT4 | |
D | Max. distance from spindle axis to surface of column | 220 mm | |
E | Max. distance from spindle end to surface of table | 700 mm | |
F | Max. distance from spindle end to surface of base | 1225 mm | |
Table Size | 360x360 mm | ||
Base Size | 470X360 mm | ||
G | Column Diameter | Φ92 mm | |
H | Height | 1710 mm | |
Net Weight/Gross Weight | 115/120 Kg | ||
Packing Size | 1415x650x305 mm | ||
20'/40' | 84/168 |
1. Cast iron working table, Cast iron base
|
Optional Accessories: | Code No. |
5" Bench vice | |
Cross laser light |
