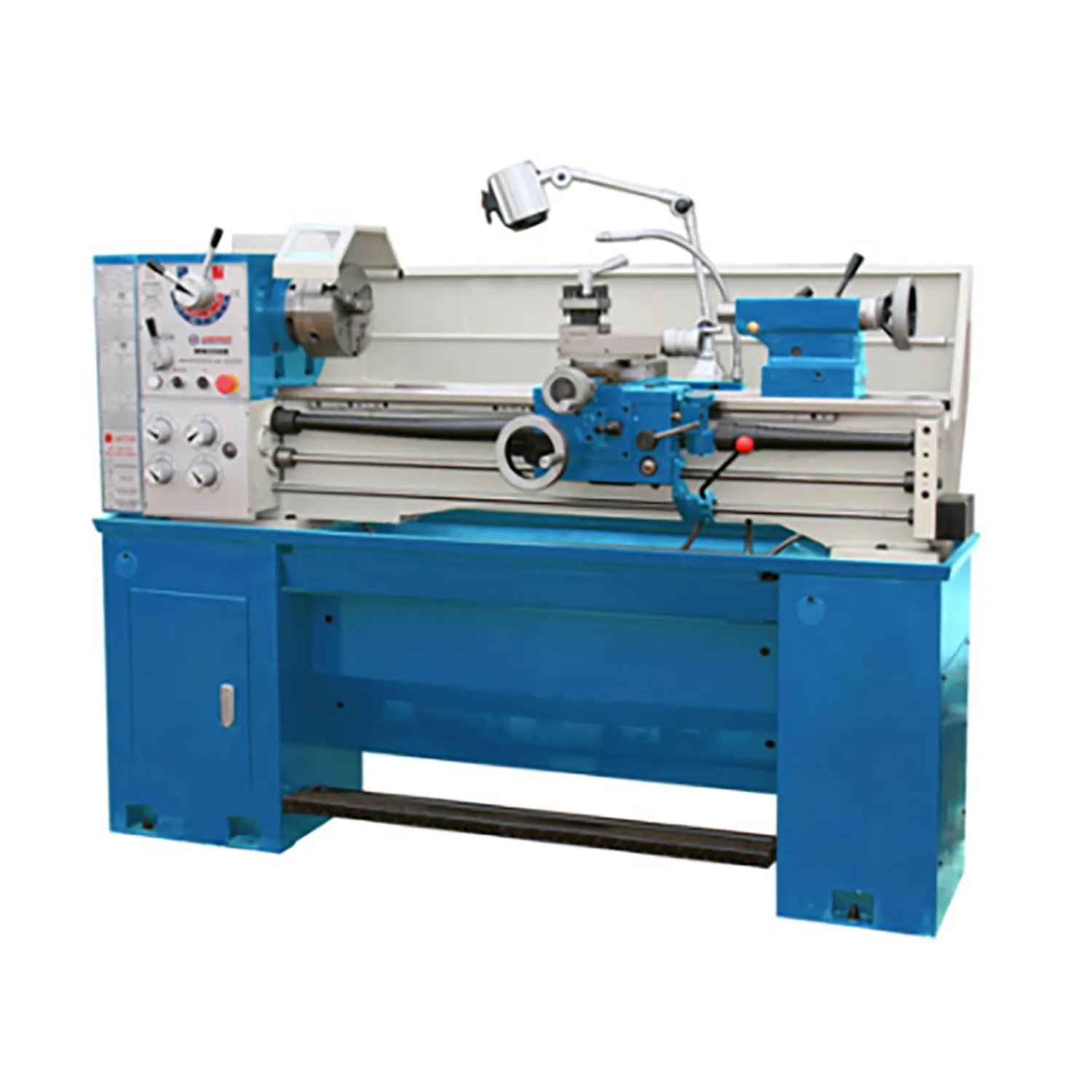

Product Description

Features

1. Induction hardened, precision ground V-way bed.
2. D1-5 spindle with 51mm large spindle bore.
3. Hardened, precision ground gears in headstock.
4. High precision directly mounting chuck.
5. Gap bed section provided for larger diameter work.
6. Gearbox has large feed and threading functions.
7. Independent leadscrew and feed rod.
8. Carriage mounted spindle control lever.
9. Automatic feed and threading are fully interlocked.
10. Adjustable gibs for slideways.
11. Tailstock may be offset for turning tapers.

Specifications

CONTEN	METRIC INFO.	INCHES INFO.	METRIC INFO.	INCHES INFO.
ITEM NO.	10106351		10106352
Distance between centers	750mm	29-17/32"	1000mm	39-3/8"
Swing over bed	330mm	12-63/64"	330mm	12-63/64"
Swing over gap	450mm	17-23/32"	450mm	17-23/32"
Swing over cross slide	198mm	7-51/64"	198mm	7-51/64"
Width of bed	187mm	7-23/64"	187mm	7-23/64"
Taper of spindle bore	MT6	MT6	MT6	MT6
Spindle nose	D1-5	D1-5	D1-5	D1-5
Spindle bore	52mm	2-3/64"	52mm	2-3/64"
Number of spindle speeds	8	8	8	8
Range of spindle speeds	90-2000 rpm	90-2000 rpm	90-2000 rpm	90-2000 rpm
Range of cross feeds	0.009-0.253mm/r	0.0004"~0.01"/r	0.009-0.253mm/r	0.0004"~0.01"/r
Range of longitudinal feeds	0.052-1.392mm/r	0.002"~0.0548"	0.052-1.392mm/r	0.002"~0.0548"
Range of inch threads	4-56 T.P.I	4-56 T.P.I	4-56 T.P.I	4-56 T.P.I
Range of metric threads	0.4-7mm	0.4-7 mm	0.4-7mm	0.4-7 mm
Top slide travel	92mm	3-5/8"	92mm	3-5/8"
Cross slide travel	170mm	6-11/16"	170mm	6-11/16"
Tailstock quill travel	100mm	3-15/16"	100mm	3-15/16"
Taper of tailstock quill	MT4	MT4	MT4	MT4
Motor	1.5KW	1.5KW	1.5KW	1.5KW
Packing size	1690x760x1520 mm	66-17/32"x29-59/64"x59-27/32"	1940x760x1520 mm	76-3/8"x29-59/64"x59-27/32"
Net weight			580 kg	1278lb

Features&Details

1. Induction hardened, precision ground V-way bed.
2. D1-5 spindle with 51mm large spindle bore.
3. Hardened, precision ground gears in headstock.
4. High precision directly mounting chuck.
5. Gap bed section provided for larger diameter work.
6. Gearbox has large feed and threading functions.
7. Independent leadscrew and feed rod.
8. Carriage mounted spindle control lever.
9. Automatic feed and threading are fully interlocked.
10. Adjustable gibs for slideways.
11. Tailstock may be offset for turning tapers.

Standard Accessories

STANDARD ACCESSORIES:	INCLUDED
3-Jaw Chuck(200mm)	yes
4-jaw chuck(200mm)	yes
Splash Guard	yes
Face Plate(250mm)	yes
Steady Rest	yes
Follow Rest	yes
Chip Tray	yes
Stand&oil tray	yes
Toolbox & Tools	yes

Optional Accessories

OPTIONAL ACCESSORIES:	Item NO.:
Taper turning attachment	-
Turning tools	-
Quick change tool post	-
Digital readout system	-
Leadscrew cover	-
Tool post cover	-
Halogen work lamp	-
Micro carriage stop	-
