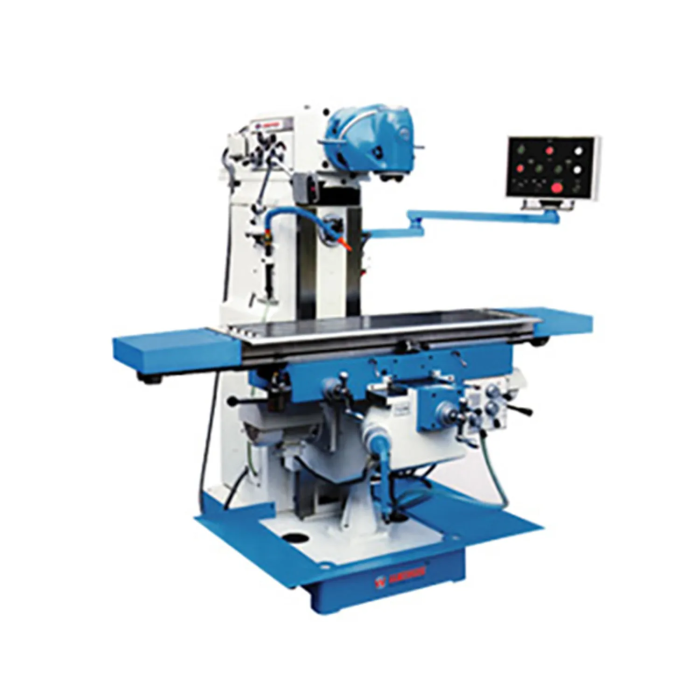

WM6432 Universal Milling Machine

WM6432 Universal Milling Machine
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WM6432 Universal Milling Machine

    Item No: 10208132

    Product Categories: Universal Milling Machine

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Specifications

    Model No. VM6432

    Item No.

    10208132

    Specifications

    Table size

    1320 x 320 mm

    Table travel (X,Y)

    1000 x 300 mm

    Knee travel

    450

    Table power feed speed range (X)

    20 ~ 360 mm/min.

    Table power feed speed range (Y)

    20 ~ 360 mm/min.

    Knee rapid speed

    400 mm/min

    T-slot

    5 x 14 - 63 mm

    Tabel swivel angle

    -

    Ram travel

    500 mm

    Vertical Spindle:

    Distance from spindle nose to table

    200 ~ 650 mm

    Distance from spindle axis to column

    200 ~ 760 mm

    Spindle taper

    ISO40

    Step of spindle speeds

    11

    Range of spindle speeds

    45 ~ 1660 rpm

    Spindle motor

    3 kw

    Head swivel (L&R)

    360°

    Horizontal Spindle:

    Spindle taper

    ISO40

    Step of spindle speeds

    12

    Range of spindle speeds

    40 ~ 1300 rpm

    Spindle motor

    3 kw

    Distance spindle center to table

    0-450 mm

    Distance Spindle cneter to ram

    170 mm

    Packing size

    2020 x 1700 x 1994 mm

    Net weight

    2100 kg

    Features&Details


    FEATURES:

    • Versatile application.

    • Heavy, solid design made of high-quality Meehanite cast iron.

    • Vertical and horizontal milling position.

    • Robust machine construction.

    • Milling head can be swiveled and rotated at any spatial angle.

    • Smooth running due to polished gear wheels running in oil bath.All guides are hardened and adjustable by means of wedges.

    • Central lubrication.Large sized decoupled handwheels with scal

      LED machine lamp.Coolant system.Easy operation of the switching elements.

    • Sturdy, rectangular guideways in the Y and Z axes.

    • Height-adjustable protective screen with micro-switch, against flying chips and parts, for maximum protection of the user.

    • Massive and large-dimensioned XY stage, precisely surface-finished with T-slots.

    • Feed motor with fixed steps.Table feed X and Y axis.Z-axis with electric table height adjustment.
