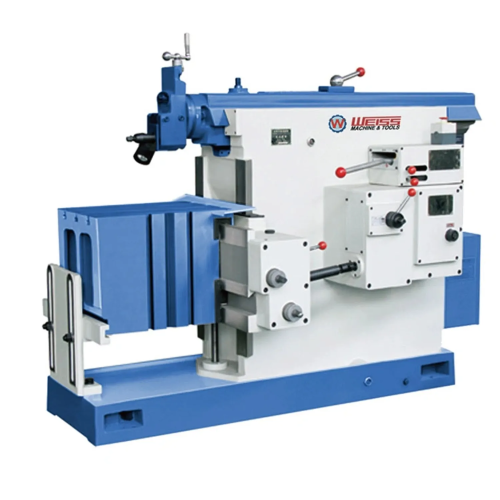

WPM50 The Planing Machine

WPM50 The Planing Machine
Share:
Price
Get Latest Price
    • Min. Order: 1 Bag/Bags
    • Transportation: Others
    Share:
    Contact Now>
    Product Detail Description
    Product Attributes

    Model No.: WPM50 The Planing Machine

    Item No: 10760500

    Customization: Basic configuration Customization for appearance, material, size, etc., please contact us

    Packaging & Delivery
    Selling Units: Bag/Bags
    Supply Ability & Additional Information

    Transportation: Others

    Product Description
    Features

    1、 flexible and reliable starting and stopping,
    2、good rigidity of the machine tool,
    3、large cutting force, small thermal deformation,
    4、stable precision and suitability for strong planing.

    Specifications

    Model No. WPM50

    Item No.

    10760500

    Specifications

    Maximum planing length

    500mm

    Rarm underside to table the maximum distance

    370mm

    Max distance between the ram bottom and table

    525mm

    Worktable maximum moving distance (vertical)

    270mm

    Dimensions of table top (LxW)

    440x360mm

    Max stroke length of the toolhead

    120mm

    Number of ram reciprocating per minute

    14-80 times min

    Max swivel angle of lhe toolhead

    ±60°

    Max Arbor size (WxH)

    20x30mm

    Range of table feed(Horizontal)

    0.4-5.0

    Range of table feed(vertical)

    0.08-1.0

    Width of the T-shot for center positioning

    18mm

    power of the main motor

    3kw

    Carton size

    2000x1250x1400mm

    N.W/G.W

    1650kg/1760kg

    Features&Details


    • Both the main cutting motion and the feed motion are gear transmission, with stable rotation, small over-travel, flexible and reliable starting and stopping, good rigidity of the machine tool, large cutting force, small thermal deformation, stable precision and suitability for strong planing.

    • The tool holder has an automatic tool lifting mechanism, the machine tool handles are centralized, and the operation is convenient.
