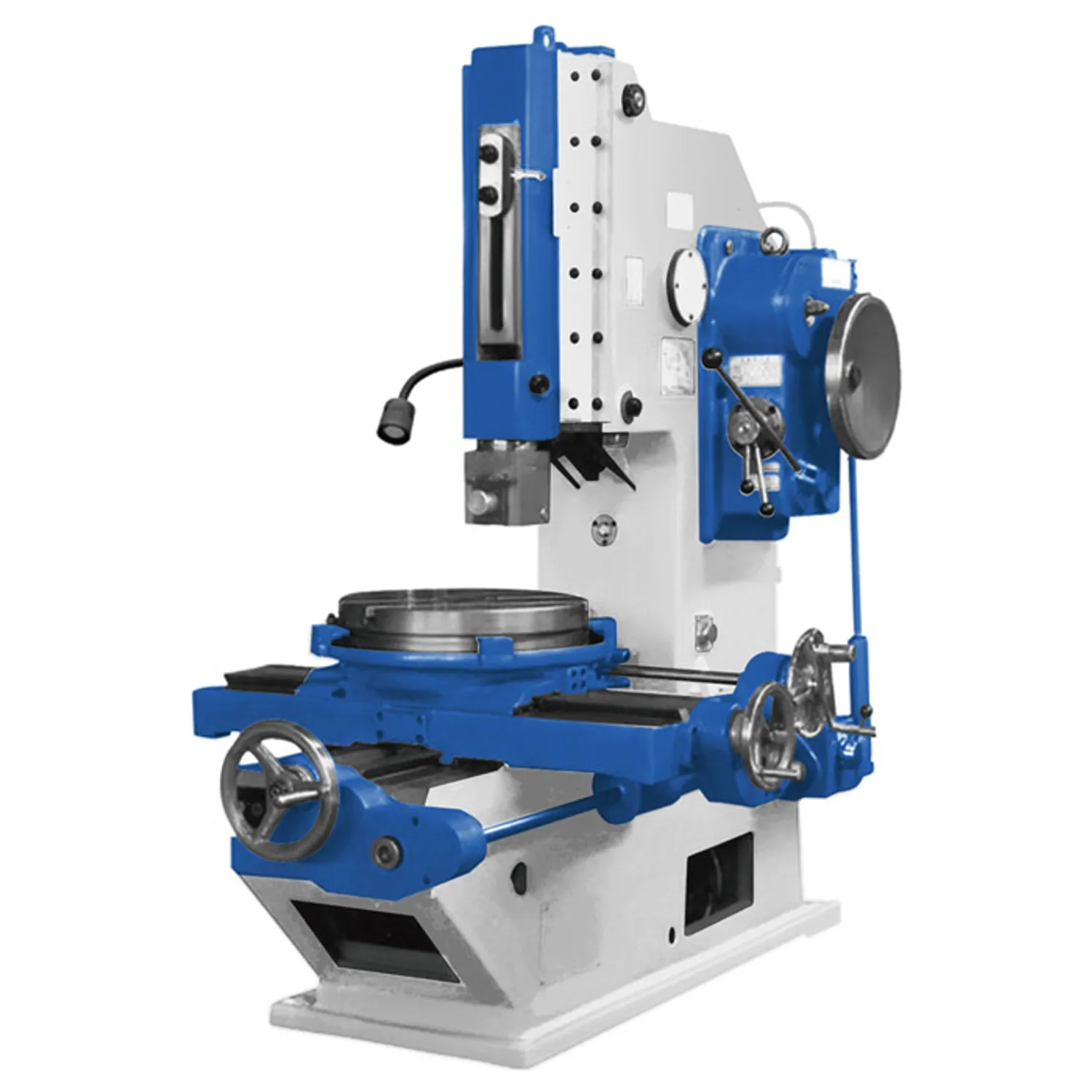

Name: WSM20 32 The Slotting Machine
Brand: Weiss Machinery
Rating: 4.5 (49 reviews)

Packaging & Delivery

Selling Units:	Bag/Bags

Supply Ability & Additional Information

Transportation: Others

Product Description

Features

The Slotting Machine is actually a vertical planer, which belongs to the same category as the shaper in structural principle.

Specifications

Model No.	WSM20	WSM32
Item No.	10750200	10750320
Specifications
Ram stroke	220mm	340mm
Maximum length of the ram slotting	200mm	320mm
Ram movement times	32.50.80.125	20.32.50.80.
Tlit ram	0-8°	0-8°
Table diameter	500mm	630mm
Vertical adjustment of ram distance	230mm	315mm
Head bearing surface to the bed from the front walls	485mm	600mm
Between the work surface to the lower carriage distance	320mm	490mm
Table maximum longitudinal movement distance	500mm	630mm
Table maximum lateral movement distance	500mm	560mm
Maximum swivel table	360°	360°
Table aspect motorized feed range	0.08-1.21mm	0.08-1.21mm
Table rotation feed range	0.052-0.783mm	0.052-0.783mm
Motor power	3kw	4kw
Speed	1430r/min	960r/min
Weight	2200kg	3000kg
Overall dimensions(LxWxH)	1916x1305x1995mm	2261x1495x2245mm

Features&Details

The Slotting Machine is actually a vertical planer, which belongs to the same category as the shaper in structural principle.
The linear reciprocating motion of the insertion knife along with the ram in the vertical direction is the main motion, and the intermittent motion of the workpiece in the longitudinal, transverse and circumferential directions is the feed motion respectively.
The production efficiency of the slotting machine is low, the roughness Ra of the processed surface is 6.3-1.6 microns, and the verticality of the processed surface is 0.025/300mm.
The main parameter of the slotting machine is the maximum slotting length

WSM20 32 The Slotting Machine
