| Selling Units: | Bag/Bags |
|---|
Transportation: Others
| CONTENT | METRIC INFO. | IMPETRIAL INFO. |
| Item No. | 10203348 | |
| Max. drilling capacity | Φ45 mm | Φ1.77" |
| Max. end milling capacity | Φ32 mm | Φ1.26" |
| Max. face miling capacity | Φ80 mm | Φ3.15" |
| Table size | 800x240 mm | 31.5" x9.45" |
| Cross travel | 220 mm | 8.66" |
| Longitudinal travel | 460 mm | 18.11" |
| Vertical travel | 330mm | 13" |
| Taper of spindle bore | MT4 or R8 or ISO30 | MT4 or R8 or ISO30 |
| Spindle stroke | 128 mm | 5" |
| T-slot | 3x14mm | 0.12" x 0.55" |
| Step ofspindle speeds | Variable | Variable |
| Range of spindle speeds | 50-4500 rpm | 50-4500 rpm |
| Heads tilt left & right | ±90° | ±90° |
| Distance from spindle to column | 260 mm | 10.23" |
| Distance from spindle nose to table | 415 mm | 16.34" |
| Motor | 2200 W | 2.95 HP |
| Dimensions | 1135x890x1900 mm | 44.69" x35.04" x74.8" |
| Packing size: | 1280x1000x2080 mm | 50.39" x39.37" x81.89" |
| Net Weight: | 375kg | 827.32 lbs |

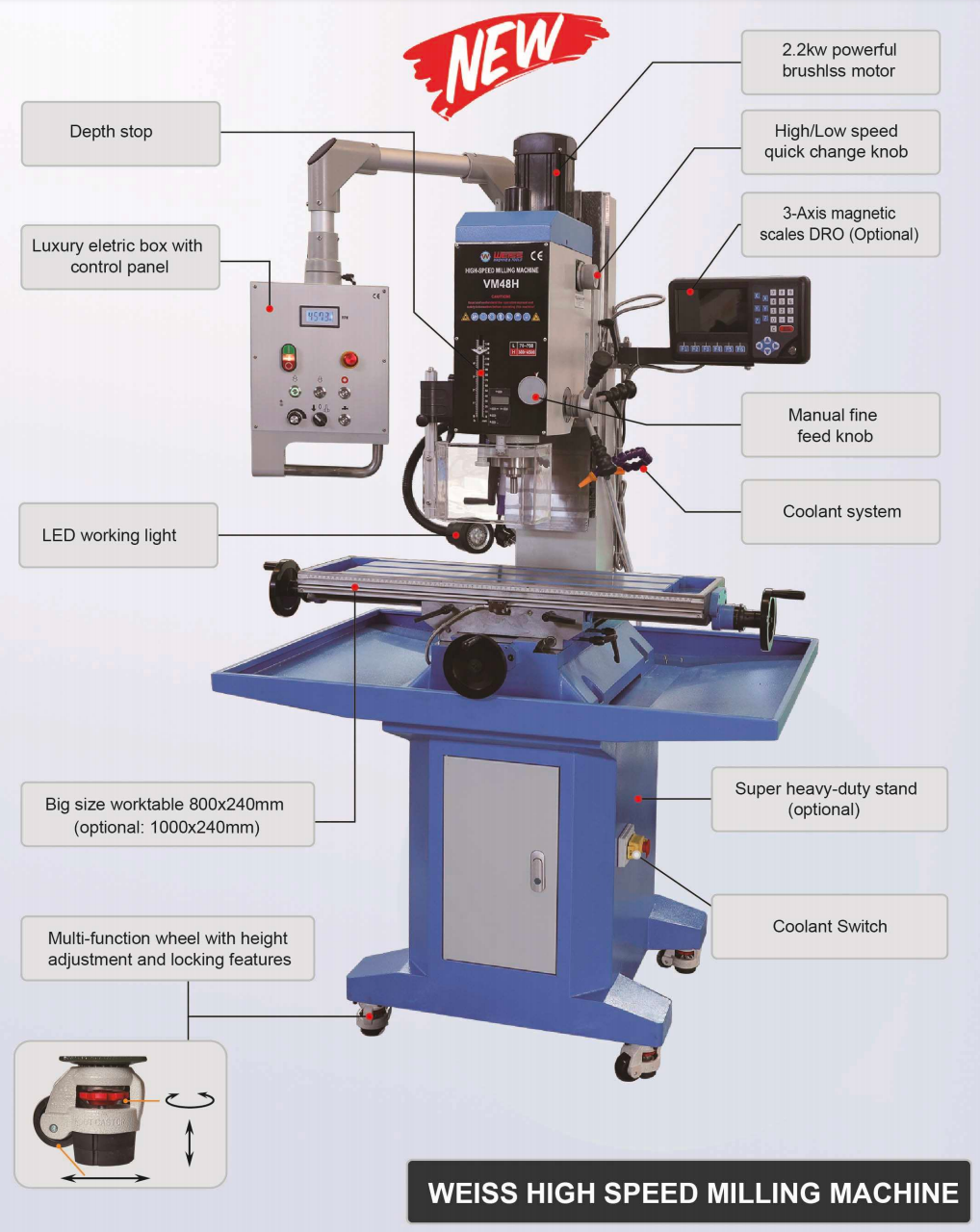

| STANDARD ACCESSORIES: | INCLUDED |
| DrawbarM12 | yes |
| Drill chuck 1-16mm | yes |
| Morse taper drill sleeve MT3/2 | yes |
| Digital display of speed range | yes |
| Digital spindle stroke indication | yes |
| Protect cover for spindle | yes |
| Luxury electric control box | yes |
| LED working light | yes |
| Coolant system | yes |
| Tools | yes |
| OPTIONAL ACCESSORIES: | Item NO.: |

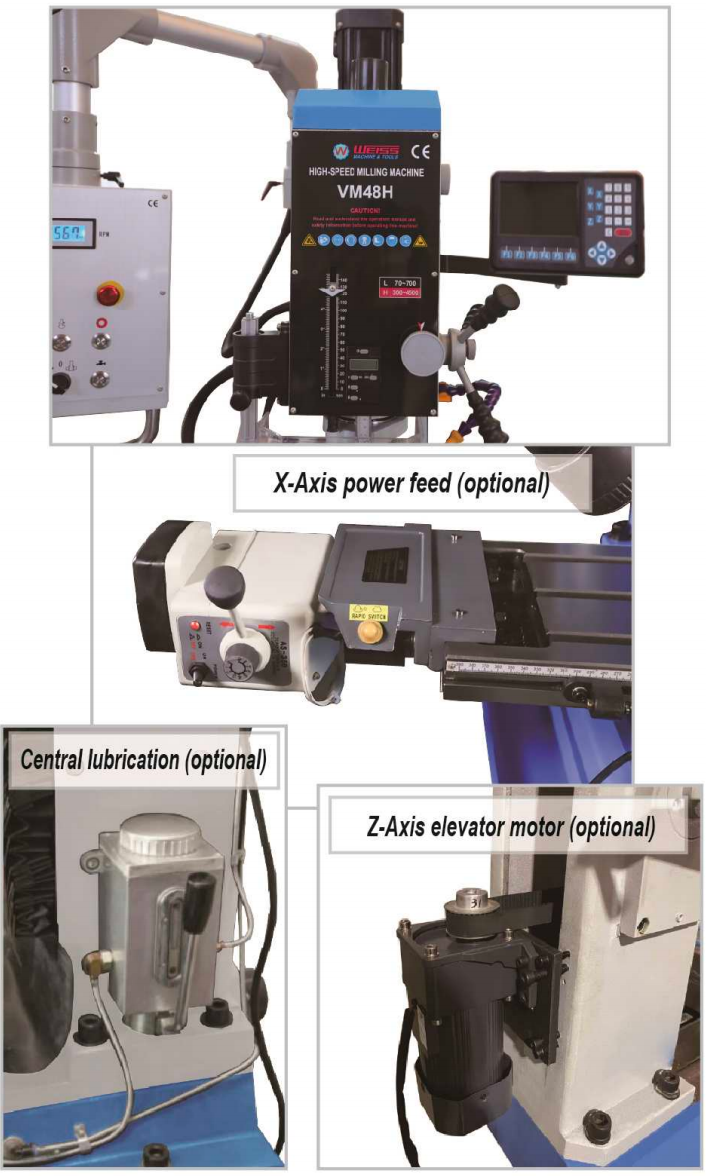

| Power feed for X-axis | 30314041 |
| Power feed for Y-axis | 30314042 |
| Elevator motor for Z-axis | 30314047 |
| Manual central lubirciation | 30314019 |
| Mill chuck set ER32 MT4 3-25mm 15pc | 22030254 |
| Horizontal&Vertical totary table HV8-200mm | 22111520 |
| Semi-universal dividing head BS-0 | 22113005 |
| Deluxe clamping kit sets 58pcs 14mm, M12 | 22038024 |
| 2 way precision tilting vise WOA100 | 22102104 |
| Universal Machine Vise MVB100 | 22102024 |
| Machine vise BMS 150 | 22101026 |
| Machine vise WHV140 | 22101045 |
| 20 pcs Hss Tin-coated end mill set, 3-20mm | 21100020 |
| Luxury heavy duty stand with multi-function wheel | 30314038 |
| 3-Axis DRO with magnetic sales D80 | 23073305 |
| 3-Axis DRO with grating scales SINO | 23080305 |
